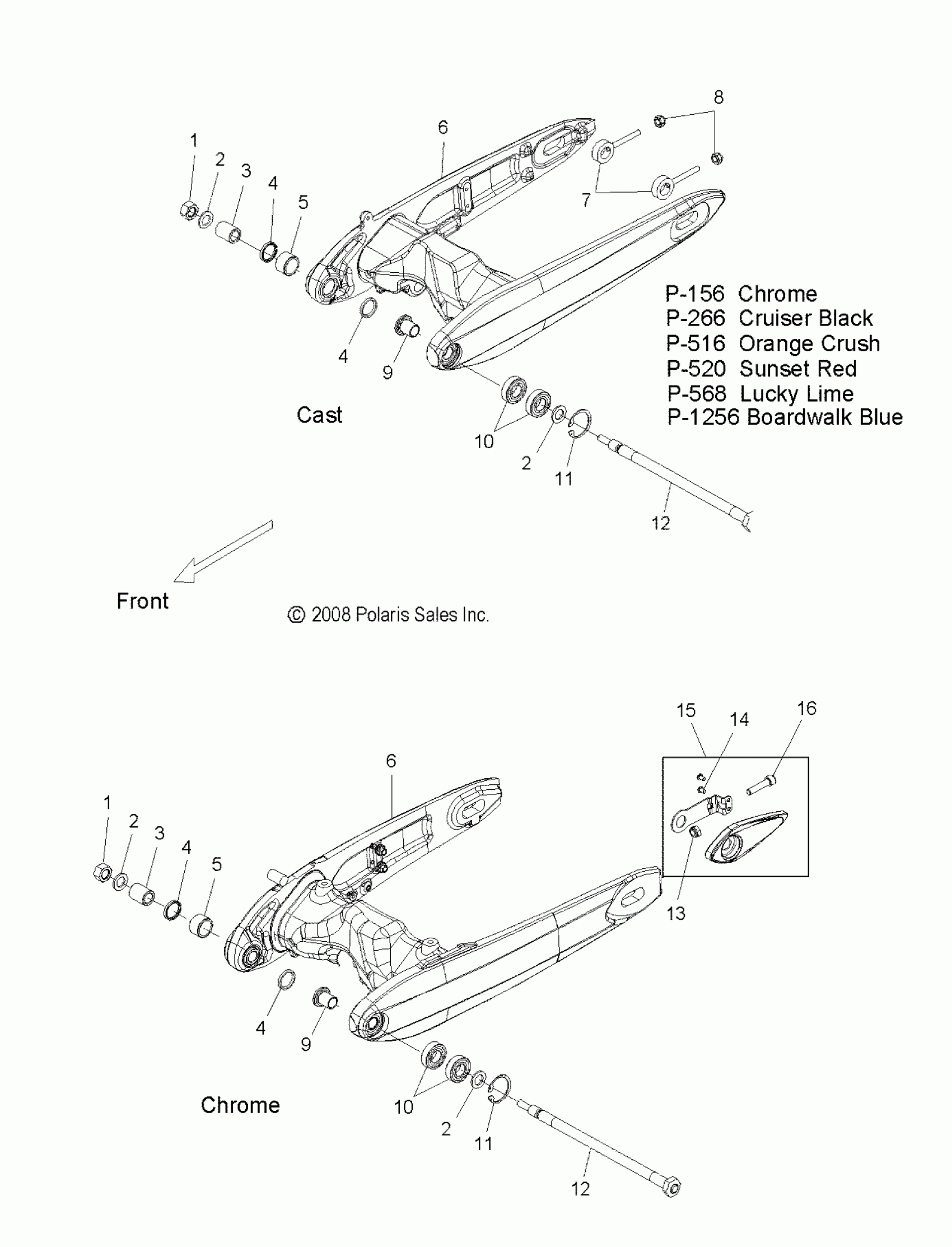

Polaris JACKPOT/NESS JACKPOT ALL OPTIONS - V09XB36/XC36 SUSPENSION, SWING ARM - V09XB36/XC36 ALL OPTIONS (49VICSWINGARM09JP) Diagram

#

Description
Price

1

NUT

7540001

$4.76

1

NUT

7540001

$4.76

2

WASHER, FLAT

7556236

$7.14

2

WASHER, FLAT

7556236

$7.14

2

WASHER, FLAT

7556236

$7.14

2

WASHER, FLAT

7556236

$7.14

3

Bushing

5133475

Unavailable

3

Bushing

5133475

Unavailable

4

SEAL

3610096

$11.90

4

SEAL

3610096

$11.90

4

SEAL

3610096

$11.90

4

SEAL

3610096

$11.90

5

BEARING

3514413

Unavailable

5

BEARING

3514413

Unavailable

6

Asm., Swing Arm w/Bearings, 250 [Incl. 4,5,10,11][Ness]

1015323-156

$929.99

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-1256

Unavailable

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-520

$689.99

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-266

$640.49

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-516

$222.22

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-568

$305.56

6

Asm., Swing Arm w/Bearings, 250 [Incl. 4,5,10,11][Ness]

1015323-156

$929.99

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-1256

Unavailable

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-520

$689.99

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-266

$640.49

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-516

$222.22

6

Asm., Swing Arm w/Bearings, Cast, 250 [Incl. 4,5,10,11]

1015380-568

$305.56

7

ADJUSTER, AXLE

1014895

$36.41

8

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

9

BUSHING

5631478

Unavailable

9

BUSHING

5631478

Unavailable

10

BEARING, BALL

3514414

Unavailable

10

BEARING, BALL

3514414

Unavailable

11

RING, RETAINING

7670149

$7.14

11

RING, RETAINING

7670149

$7.14

12

Shaft, Swing Arm Pivot

1014610

$96.81

12

Shaft, Swing Arm Pivot

1014610

$96.81

13

NUT, NYLOK

7547268

$1.19

14

SCREW

7517406

$4.76

15

Kit, Axle Adjust, Chrome [Incl. 13,14]

2875300-156

$20.63

16

Screw

7518485

Unavailable
