Partiron

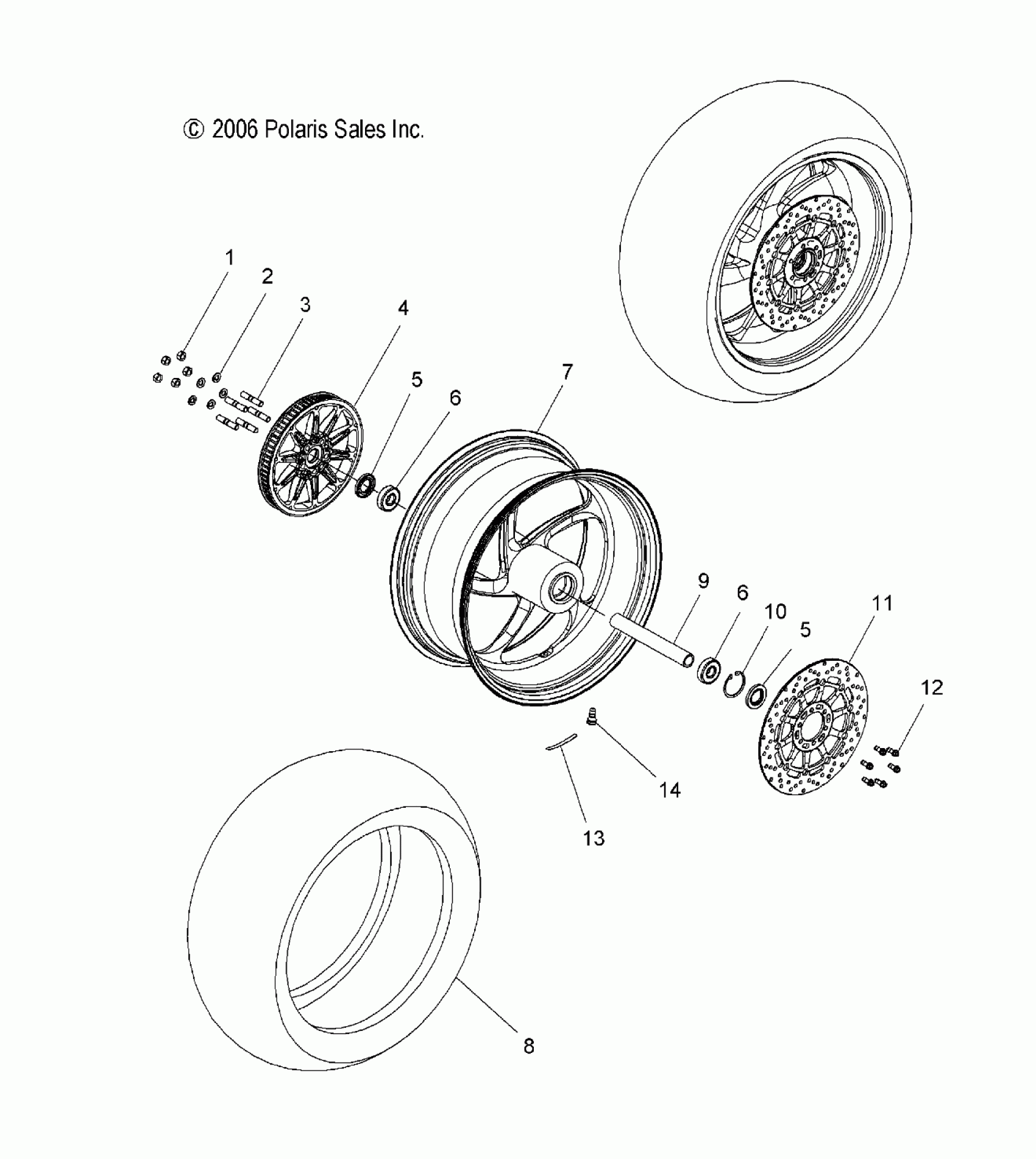

Polaris JACKPOT/NESS ALL OPTIONS - V07XB26/BC26 WHEELS, REAR (CAST) - V07XB26/BC26 ALL OPTIONS (49VICWHEELRRCST07JACK) Diagram

#

Description
Price

1

NUT

7547232

$23.81

2

WASHER, FLAT

7556287

$7.14

3

Stud

7518311

Unavailable

4

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

5

SEAL

3610094

$31.75

5

SEAL

3610094

$31.75

6

BEARING, BALL

3514405

$19.84

6

BEARING, BALL

3514405

$19.84

7

Asm., Wheel, Cast, Rear [Incl. 5-7,9,10,13,14]

1520864-409

$295.63

7

Asm., Wheel, Cast, Rear, Black [Incl. 5-7,9,10,13,14]

1520864-266

Unavailable

8

TIRE, REAR

5412522

$372.99

9

Spacer

5334450

Unavailable

10

Ring, Retaining

7710526

$10.32

11

Rotor, Brake, Floating

1910623

$349.99

12

Screw

7518297

$5.56

13

Weight, Balance, Wheel, Black

1520253

Unavailable

13

Weight, Balance

1520618

Unavailable

14

Valve, Rim

1520232

$3.17
