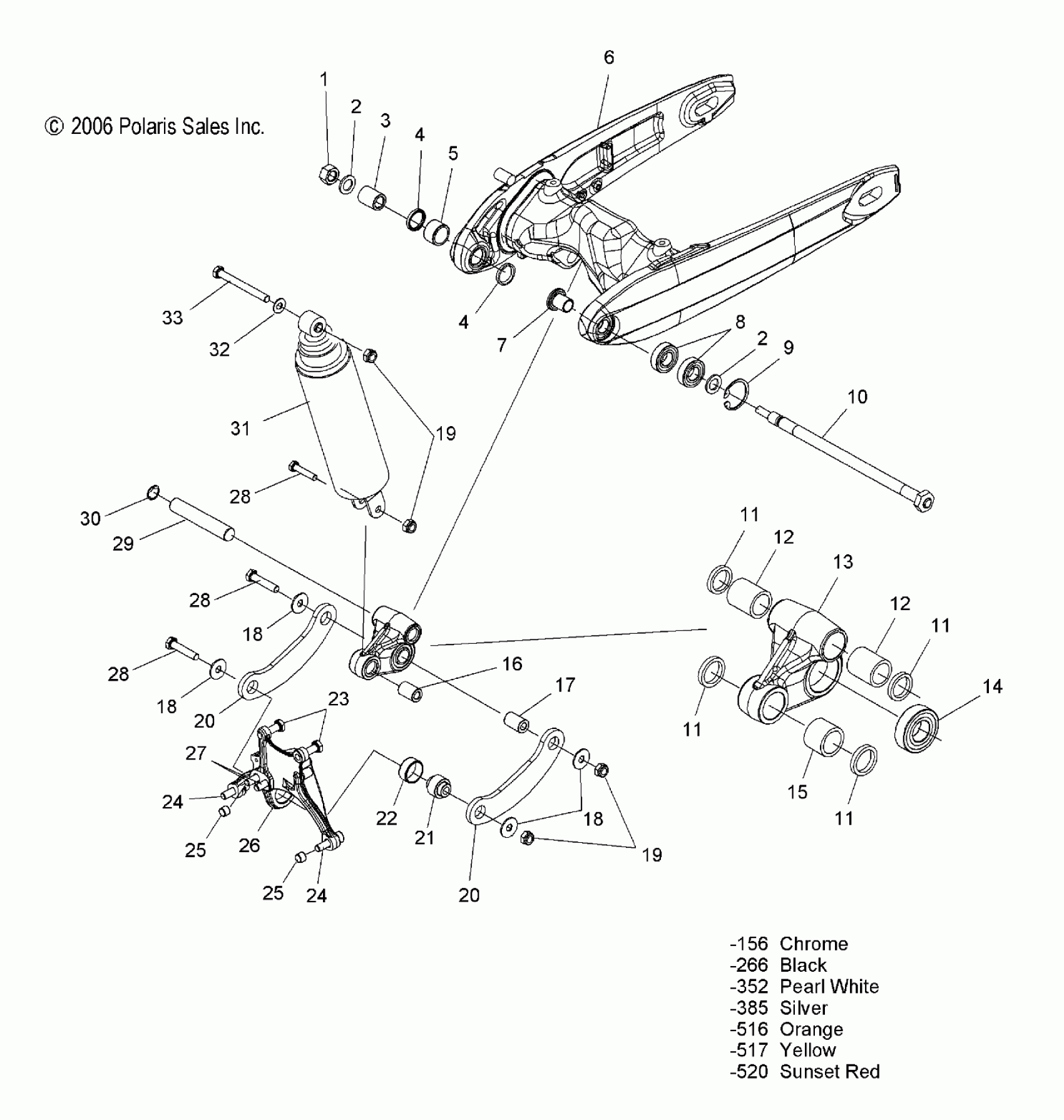

Polaris JACKPOT/NESS ALL OPTIONS - V07XB26/BC26 SUSPENSION, REAR and SWING ARM - V07XB26/BC26 ALL OPTIONS (49VICSUSPRR07JACK) Diagram

#

Description
Price

1

NUT

7540001

$4.76

2

WASHER, FLAT

7556236

$7.14

2

WASHER, FLAT

7556236

$7.14

3

Bushing

5133475

$43.65

4

SEAL

3610096

$11.90

4

SEAL

3610096

$11.90

5

BEARING

3514413

$19.84

6

Asm., Swing Arm w/Bearings [Incl. 4,5,8,9]

1015323-156

$929.99

6

Asm., Swing Arm w/Bearings [Incl. 4,5,8,9]

1015380-520

$689.99

6

Asm., Swing Arm w/Bearings [Incl. 4,5,8,9]

1015380-266

$640.49

6

Asm., Swing Arm w/Bearings

1015380-385

Unavailable

6

Asm., Swing Arm w/Bearings [Incl. 4,5,8,9]

1015380-517

$579.99

6

Asm., Swing Arm w/Bearings

1015380-352

$542.39

6

Asm., Swing Arm w/Bearings [Incl. 4,5,8,9]

1015323-516

Unavailable

7

BUSHING

5631478

$5.56

8

BEARING, BALL

3514414

$15.14

9

RING, RETAINING

7670149

$7.14

10

Shaft, Swing Arm Pivot

1014610

$96.81

11

SEAL

3610095

$11.90

11

SEAL

3610095

$11.90

11

SEAL

3610095

$11.90

11

SEAL

3610095

$11.90

12

BEARING, NEEDLE

3514411

$23.81

12

BEARING, NEEDLE

3514411

$23.81

13

Asm., Rocker w/Brngs [Incl. 11,12,14,15]

1014865

$396.97

14

BEARING, SPHERICAL

3514439

$63.49

15

BEARING, NEEDLE

3514412

$19.84

16

Bushing, Suspension, Short

5133473

$39.99

17

Shaft, Rocker Pivot

5133807

$36.41

18

Washer, Flat

7556260

$10.32

18

Washer, Flat

7556260

$10.32

18

Washer, Flat

7556260

$10.32

19

NUT, NYLOK

7547268

$1.19

19

NUT, NYLOK

7547268

$1.19

20

LINK, SUSPENSION STRAP

5248523

$68.79

20

LINK, SUSPENSION STRAP

5248523

$68.79

21

Bushing, Plain Bearing, Radical Cut

5135465

$19.84

22

BEARING

3514459

$11.90

23

SCREW

7517827

$6.35

24

Screw

7518302

$0.98

24

Screw

7518302

$0.98

25

DOWEL

7663008

$5.99

25

DOWEL

7663008

$5.99

26

MOUNT, MINOR PIVOT

5135458-329

Unavailable

27

SCREW

7518202

Unavailable

28

SCREW

7517946

$7.14

28

SCREW

7517946

$7.14

28

SCREW

7517946

$7.14

29

BUSHING

5134101

$74.99

30

RING, RETAINING

7710544

$3.97

31

ASM., SHOCK [See Shock, Rear Page for Details]

----

Unavailable

32

Washer, Flat

7556155

$5.22

33

SCREW

7518206

$10.32
