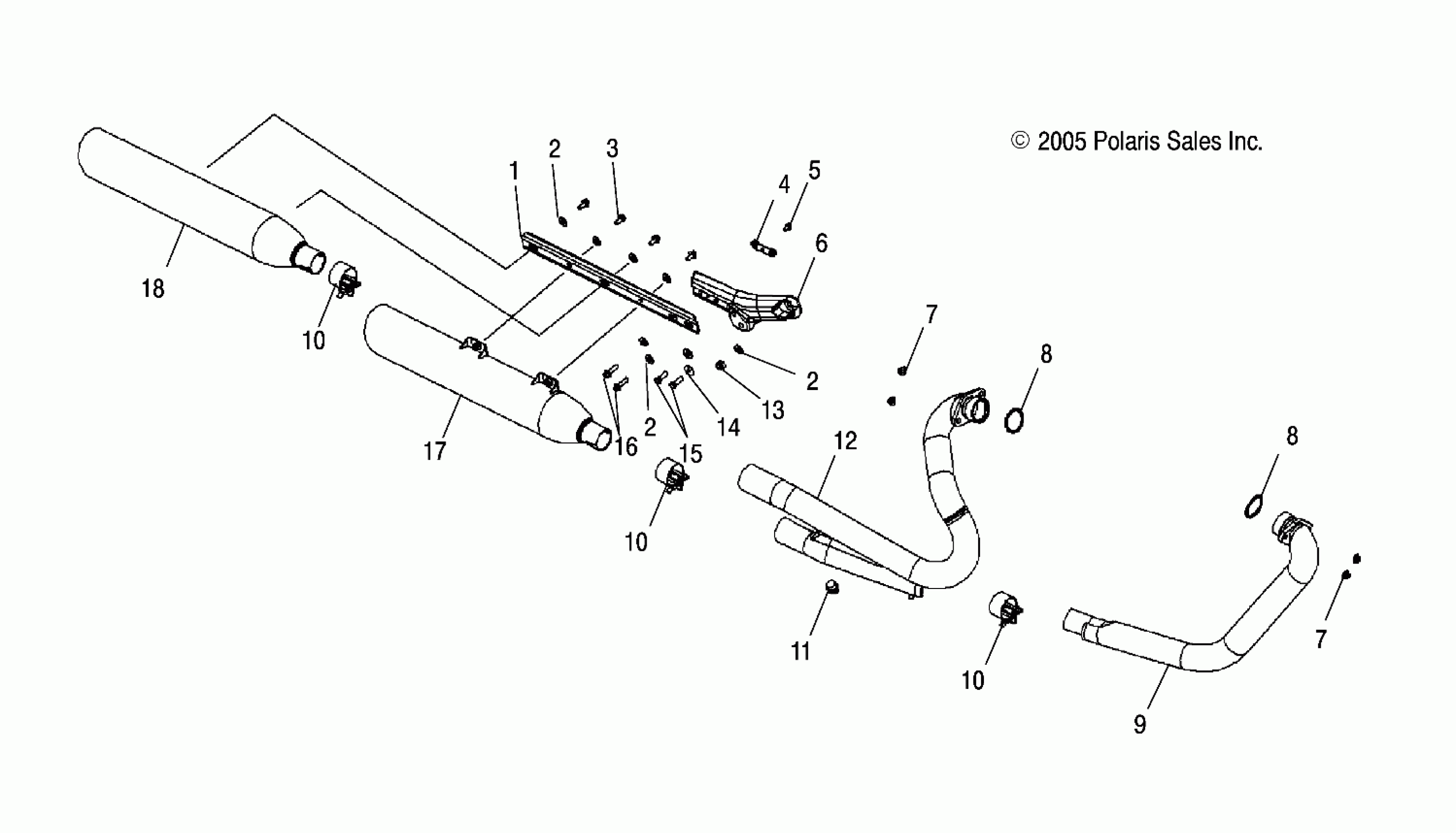

Polaris JACKPOT/NESS ALL OPTIONS - V07XB26/BC26 ENGINE, EXHAUST SYSTEM - V07XB26/BC26 ALL OPTIONS (4999203459920345C06) Diagram

#

Description
Price

1

Bracket, Muffler To Muffler, ZNC

5250030-236

$48.56

2

WASHER, FLAT

7556234

$3.17

2

WASHER, FLAT

7556234

$3.17

2

WASHER, FLAT

7556234

$3.17

3

SCREW

7518043

$9.52

4

PLATE, NUT, ZINC

1015172-236

$13.54

5

SCREW

7518393

$7.84

6

Support, Exhaust, Clear and ZNC

5631703-472

$145.70

7

NUT

7546805

$7.84

7

NUT

7546805

$7.84

8

GASKET

5246008

$19.84

8

GASKET

5246008

$19.84

9

CLAMP

7080774

$10.32

9

Asm., Exhaust Headpipe, Front

1261460

$414.99

9

Shield, Front, Cyl.

1261464

$243.56

9

Headpipe, Front

1261339

Unavailable

10

CLAMP

7081179

$43.65

10

CLAMP

7081179

$43.65

10

CLAMP

7081179

$43.65

11

Bolt

7518295

Unavailable

12

CLAMP

7080774

$10.32

12

Asm., Exhaust, Head Pipes

1261459

$649.99

12

Shield, Rear, Upper

1261461

Unavailable

12

Shield, Rear, Mid

1261462

$144.03

12

Shield, Rear, Lower

1261463

$161.49

12

Asm., Header Pipe w/ Catalyst

1261588

$160.71

13

NUT, NYLOK

7547268

$1.19

14

WASHER, FLAT

7556352

$4.76

15

SCREW

7518443

$4.76

16

Screw

7518391

$4.75

17

Asm., Muffler, Front

1261640

Unavailable

18

Asm., Muffler, Rear

1261641

$564.99
