Partiron

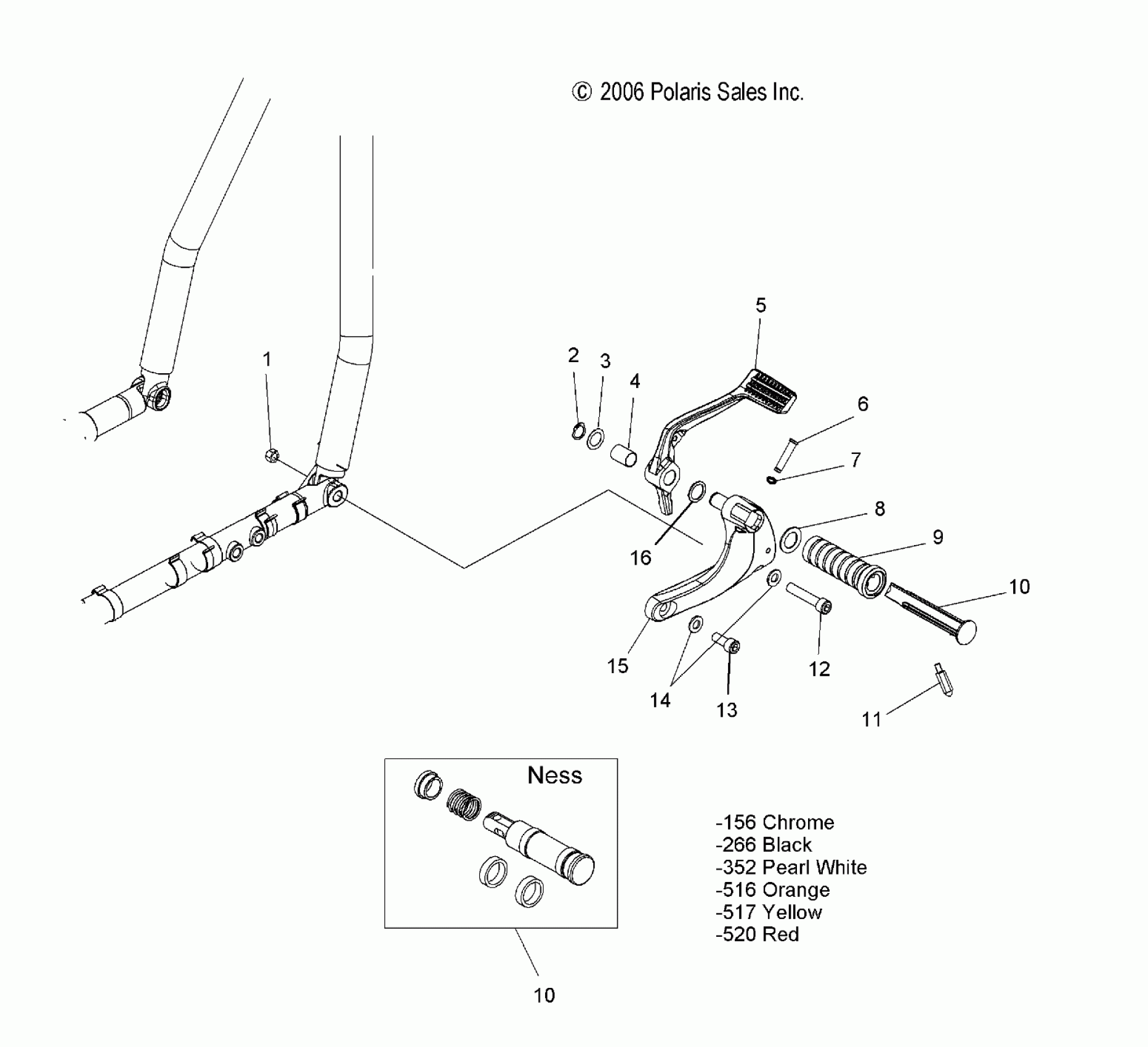

Polaris JACKPOT/NESS ALL OPTIONS - V07XB26/BC26 CHASSIS, FOOTPEG, R.H./BRAKE - V07XB26/BC26 ALL OPTIONS (49VICFOOTPEGRH07JACK) Diagram

#

Description
Price

1

NUT

7547039

$4.76

2

RING, RETAINING, EXTERNAL

7710499

$7.14

3

WASHER, FLAT

7556075

$11.33

4

BUSHING, FOOT PEDAL

3514490

$6.65

5

Pedal, Brake

5134683-156

$314.99

5

Pedal, Brake

5134683-266

$212.70

5

Pedal, Brake

5134683-517

$204.76

5

Pedal, Brake

5134683-520

$204.76

5

Pedal, Brake

5134683-516

$204.76

5

Pedal, Brake

5134683-352

$212.70

6

Pin, Pivot

7661167

$7.94

7

Ring, Retaining

7710545

$1.98

8

Washer, Flat

7556241

Unavailable

9

PAD, FOOTPEG

5412256

$20.22

10

Footpeg, Bru, RH

5135628-411

Unavailable

10

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

10

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

10

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

10

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

10

Asm., Footpeg, Billet, Ness, Flame

1015588

$178.79

10

Asm., Footpeg, Billet, Ness, Diamond

1015590

Unavailable

10

Band, Footpeg, Billet, Ness

5413139

Unavailable

10

Band, Footpeg, Billet, Ness

5413139

Unavailable

10

Footpeg, Bru, RH

5135628-411

Unavailable

10

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

10

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

10

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

10

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

10

Asm., Footpeg, Billet, Ness, Flame

1015588

$178.79

10

Asm., Footpeg, Billet, Ness, Diamond

1015590

Unavailable

10

Band, Footpeg, Billet, Ness

5413139

Unavailable

10

Band, Footpeg, Billet, Ness

5413139

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

12

SCREW

7518146

$10.32

13

SCREW

7518101

$7.94

14

WASHER, FLAT

7556234

$3.17

15

Support, Footpeg, RH

5134681-156

Unavailable

15

Support, Footpeg, RH

5134681-266

$261.02

15

Support, Footpeg, RH

5134681-517

$233.95

15

Support, Footpeg, RH

5134681-520

$261.02

15

Support, Footpeg, RH

5134681-516

$233.95

15

Support, Footpeg, RH

5134681-352

$219.98

16

WASHER, WAVE

7556273

$2.38
