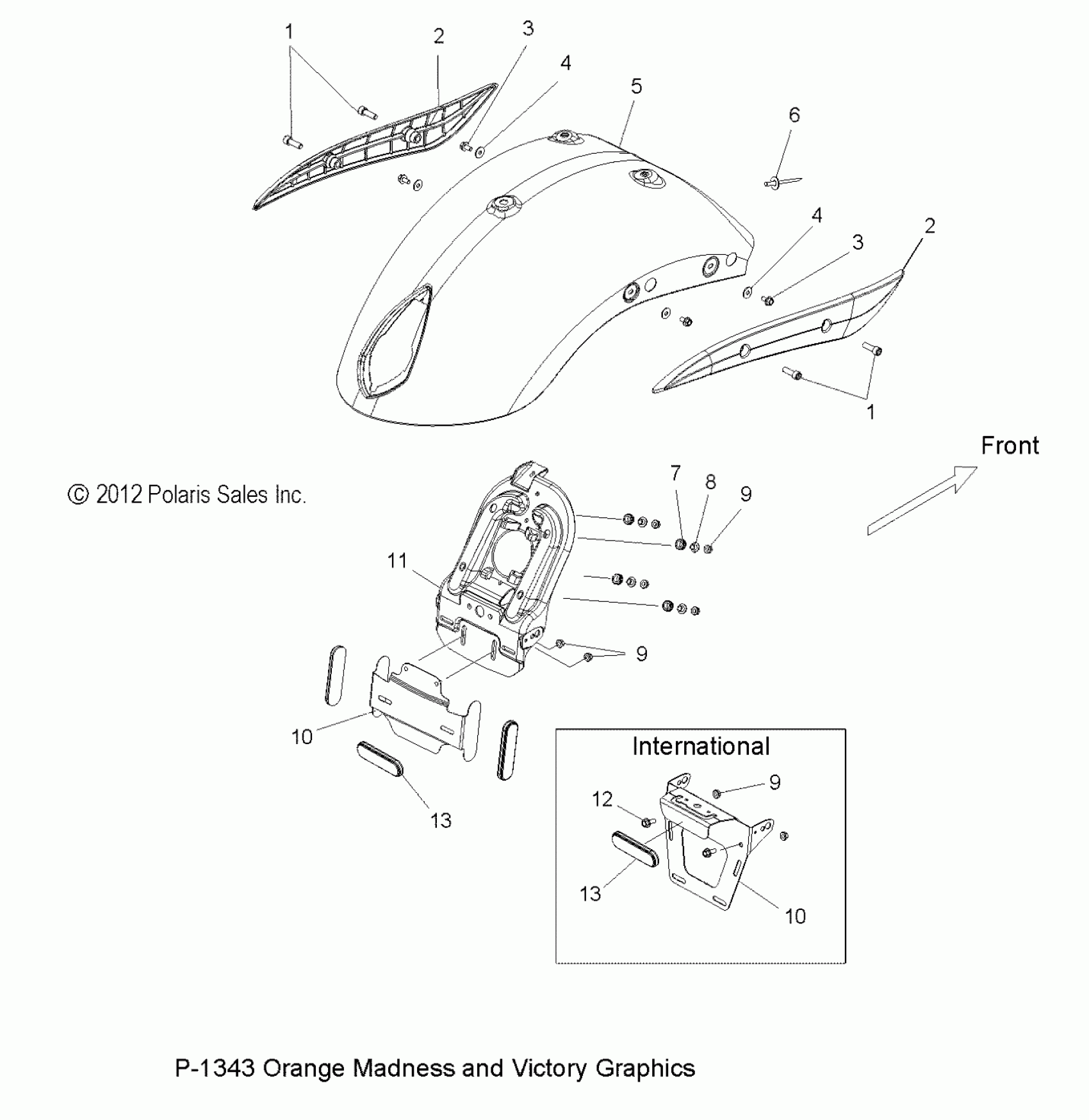

Polaris JACKPOT ALL OPTIONS - V13XB36 BODY, FENDER, REAR - V13XB36 ALL OPTIONS (49VICFENDERRR13JP) Diagram

#

Description
Price

1

SCREW

7518084

$7.14

1

SCREW

7518084

$7.14

2

COVER, STRUT, RH, CHROME

5631840-156

$198.32

2

COVER, STRUT, LH, CHROME

5631839-156

Unavailable

2

COVER, STRUT, RH, CHROME

5631840-156

$198.32

2

COVER, STRUT, LH, CHROME

5631839-156

Unavailable

3

SCREW

7517704

$7.84

3

SCREW

7517704

$7.84

4

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

5

Fender, Rear

1014978-1343

Unavailable

6

Rivet

7081040

$1.19

7

GROMMET

5412265

$3.97

8

SPACER, TOP HAT

5134889

$4.76

9

Nut

7710495

$5.22

9

Nut

7710495

$5.22

9

Nut

7710495

$5.22

10

BRACKET, LP, MODULE, LOWER, FLAT BLACK

1015165-463

Unavailable

10

Bracket, License Plate, Black, Int'l [INTL]

5252864-266

$76.17

10

BRACKET, LP, MODULE, LOWER, FLAT BLACK

1015165-463

Unavailable

10

Bracket, License Plate, Black, Int'l [INTL]

5252864-266

$76.17

11

BRACKET, LP, MODULE, UPPER

5435956

$48.56

12

SCREW

7518591

$3.79

13

Reflector, Red, Oval [Qty 1 for Int'l]

5434624

$32.37

13

Reflector, Red, Oval [Qty 1 for Int'l]

5434624

$32.37
