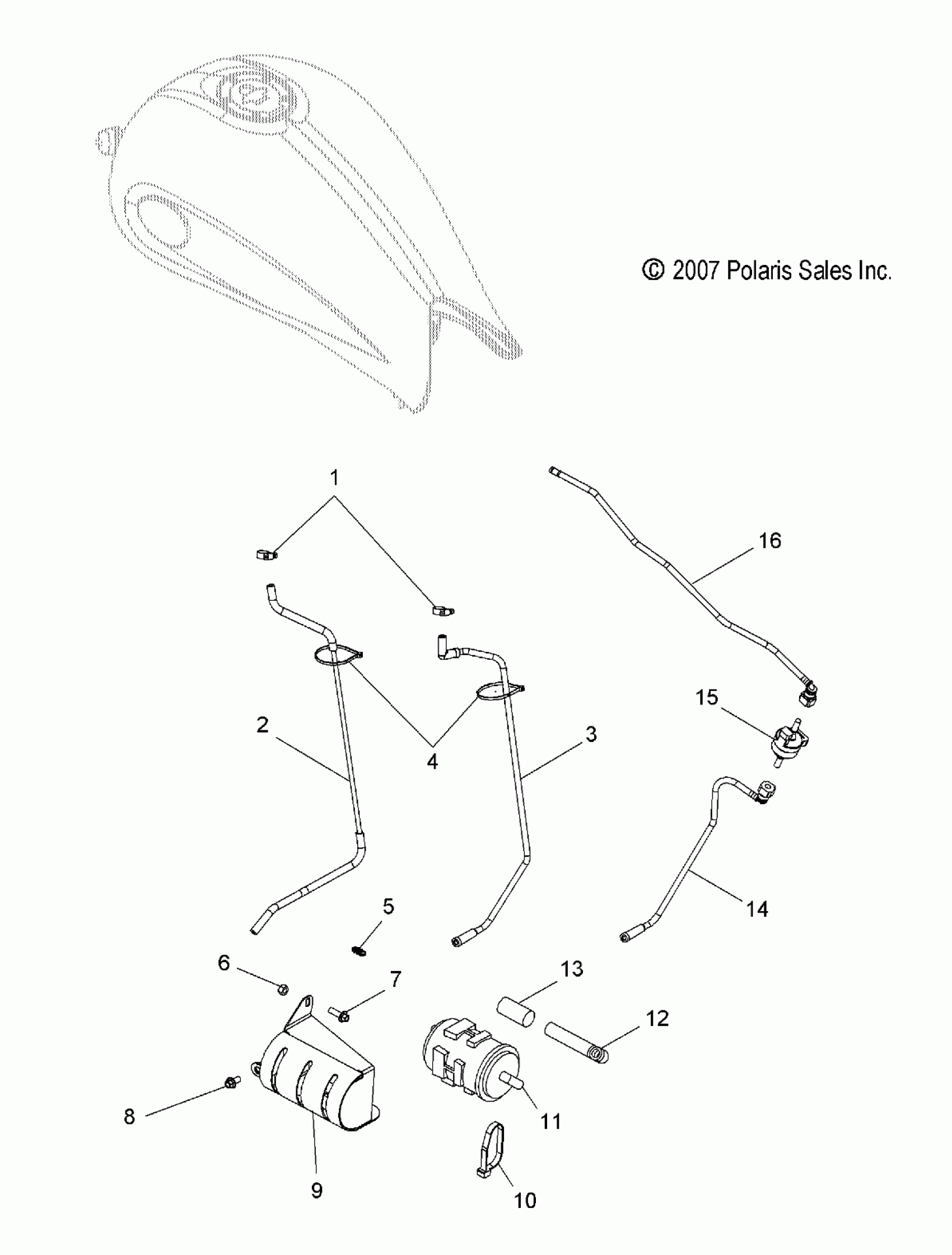

Polaris JACKPOT ALL OPTIONS - V10XB36DAP/LKP/XC36DN FUEL SYSTEM, EVAP SYSTEM (CA) - V10XB36DAP/LKP/XC36DN ALL OPTIONS (49VICEVAP08VEGAS) Diagram

Description

Price

CLAMP, HOSE

7081151

$7.14

Line, Water, Fuel Tank to Ground

5435770

$35.24

Tube, Vent, Tank to Purge

5436702

$119.05

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP, SNAP-IN

7080756

$4.76

NUT

7547121

$2.60

Screw

7517839

$6.10

SCREW

7518043

$9.52

BRACKET, EVAP CANISTER

1015996-463

Unavailable

TIEWRAP

7080924

$7.94

FILTER

2520192

$74.19

HOSE, VENT

5411870

$48.56

FILTER, VENT LINE

7080932

$4.35

TUBE, VENT, EVAP TO PURGE

5436760

$63.49

Valve, Canister, Purge

4011303

$74.99

Tube, Vent, Purge to Engine

5436704

$45.24
