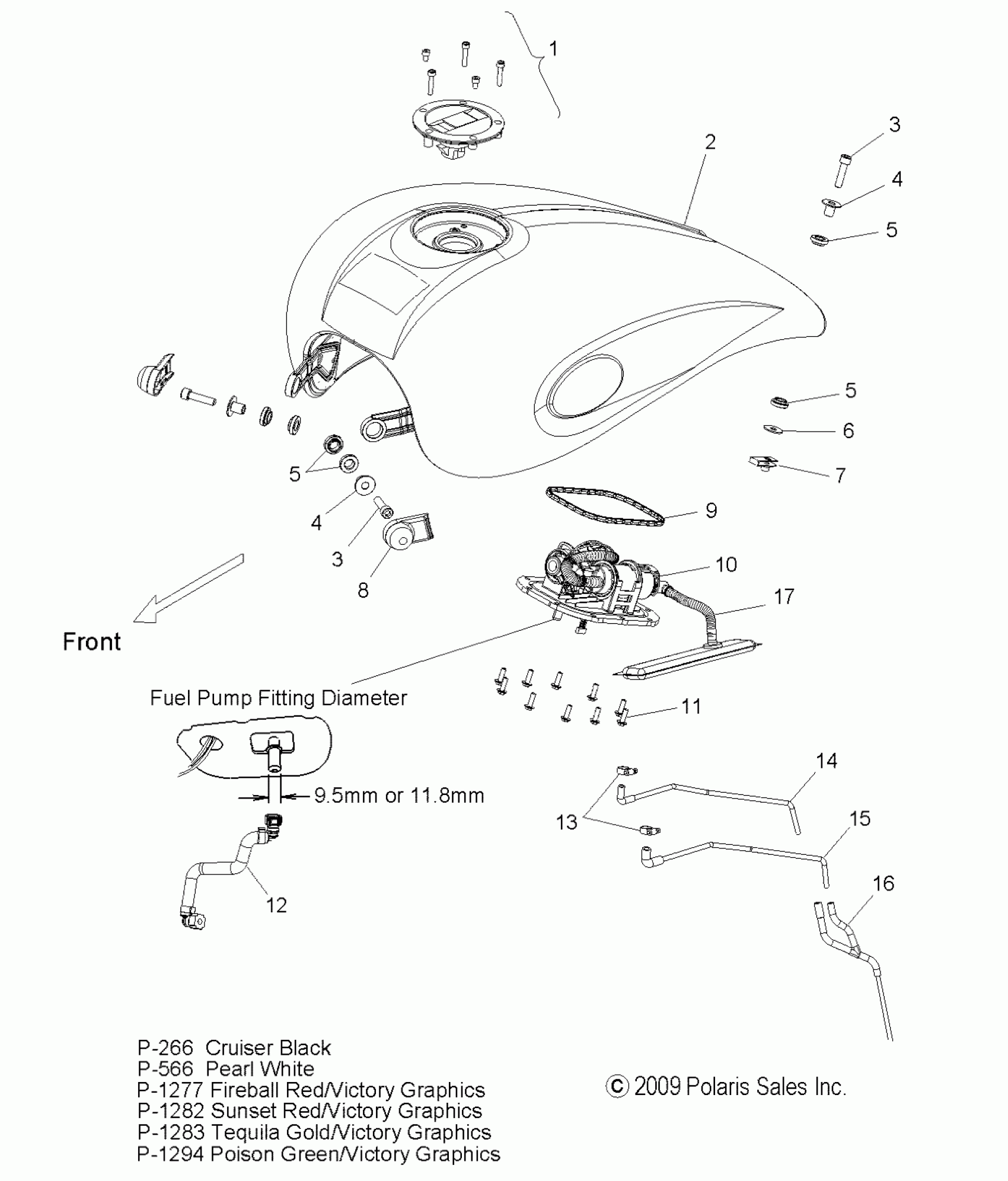

Polaris JACKPOT ALL OPTIONS - V10XB36DAP/LKP/XC36DN BODY, FUEL TANK - V10XB36DAP/LKP/XC36DN ALL OPTIONS (49VICFUEL10JP) Diagram

#

Description
Price

1

ASM., IGNITION/FUEL CAP, BLACK

4012376-266

$285.62

1

Asm., Ignition/Fuel Cap, Black [EU][UK]

4012377-266

$374.99

1

SCREW

7518086

$5.56

1

SCREW

7517515

$8.71

1

SCREW

7517845

$5.56

2

Tank, Fuel, Spine

1015931-1294

$2,399.99

2

Tank, Fuel, Spine

1015931-266

Unavailable

2

Tank, Fuel, Spine

1015931-1283

$2,574.99

2

Tank, Fuel, Spine

1015931-1277

Unavailable

2

Tank, Fuel, Spine

1015931-1282

$2,474.99

2

Tank, Fuel, Spine

1015931-566

$1,919.99

3

SCREW

7517525

$4.35

3

SCREW

7517525

$4.35

4

BUSHING, FLANGE

5136665

$8.73

4

BUSHING, FLANGE

5136665

$8.73

5

Bushing

5412480

$3.17

5

Bushing

5412480

$3.17

5

Bushing

5412480

$3.17

6

Washer, Flat

7556260

$10.32

7

U-NUT

7547233

$10.32

8

COVER, MOUNT, LH

5412414

$32.37

8

COVER, MOUNT, RH

5412415

$32.37

9

SEAL, FUEL, MOLDED

5413346

$23.81

10

PUMP, FUEL

2521169

$409.99

11

SCREW

7518923

$0.79

12

Line, Fuel, Tank to Fuel Rail [For 11.8 mm Fuel Tank Fitting]

5414150

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 9.5 mm Fuel Tank Fitting]

5413413

$89.03

13

CLAMP, HOSE

7081151

$7.14

14

LINE, WATER DRAIN

5435764

Unavailable

15

LINE, FUEL VENT

5437376

Unavailable

16

LINE, WATER/FUEL TO GROUND

5435771

$71.41

17

ASM., FILTER, FUEL

2520909

$114.99
