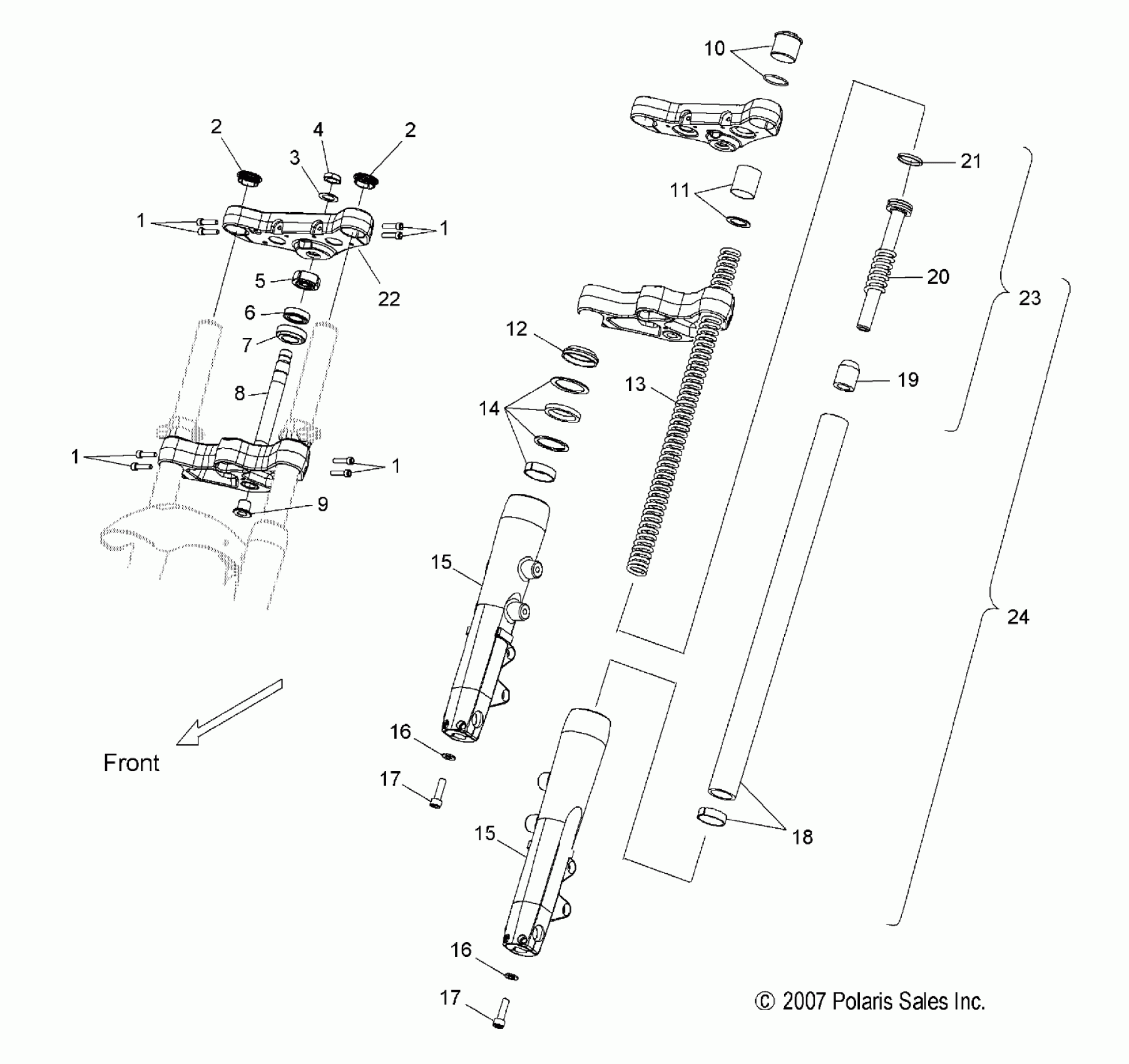

Polaris JACKPOT ALL OPTIONS - V08BC26/XB26 SUSPENSION, FRONT FORKS - V08BC26/XB26 ALL OPTIONS (49VICFORKS08VEGAS) Diagram

#

Description
Price

1

Screw

7518209

Unavailable

1

Screw

7518209

Unavailable

1

Screw

7518209

Unavailable

1

Screw

7518209

Unavailable

2

CAP

5132481-156

$11.32

2

CAP

5132481-156

$11.32

3

WASHER

7556246

$4.76

4

Nut, Top, Triple Clamp

5134148

$31.75

5

NUT, STEERING HEAD

5631935

$27.78

6

BEARING, BALL

3514549

$23.81

7

BEARING

3514416

$35.71

8

Asm., Clamp, Lower, Chrome [Incl. 1]

1822857-156

$484.99

9

CAP, STEERING STEM

5412473

$4.03

10

KIT, CAP W/O-RING

2202507

$44.51

10

O-RING

5412452

Unavailable

11

KIT, SPACER, PRELOAD

2202499

Unavailable

12

SEAL, FORK

----

Unavailable

13

SPRING, COMPRESSION

7042270

$121.41

14

KIT, SEALS BUSHING [INCL. 12]

2202505

Unavailable

15

KIT, SLIDER LEG, RH [INCL. 14]

2202503

$734.99

15

KIT, SLIDER LEG, LH [INCL. 14]

2202502

$734.99

15

KIT, SLIDER LEG, RH [INCL. 14]

2202503

$734.99

15

KIT, SLIDER LEG, LH [INCL. 14]

2202502

$734.99

16

WASHER

7556390

Unavailable

16

WASHER

7556390

Unavailable

17

SCREW

7518101

$7.94

17

SCREW

7518101

$7.94

18

KIT, ASM., TUBE [INCL. 16,17,19]

2202504

$659.99

19

ASM., OIL LOCK

----

Unavailable

20

SPRING, REBOUND

----

Unavailable

21

RING, DAMPER

5435151

$1.98

22

Asm., Bracket, Upper, Chrome [Incl. 1]

1822858-156

$452.37

23

Kit, Damper Rod/Segment [Incl. 20,21,24,25,26]

2202506

$111.10

24

Asm., Fork Leg, Chrome, LH [Incl. 10-21]

1821285-156

Unavailable

24

Asm., Fork Leg, Chrome, RH [Incl. 10-21]

1821286-156

$954.99
