ELECTRICAL, SWITCHES and SENSORS and COMPONENTS - V08BC26/XB26 ALL OPTIONS (49VICSWITCHES08VEGAS)

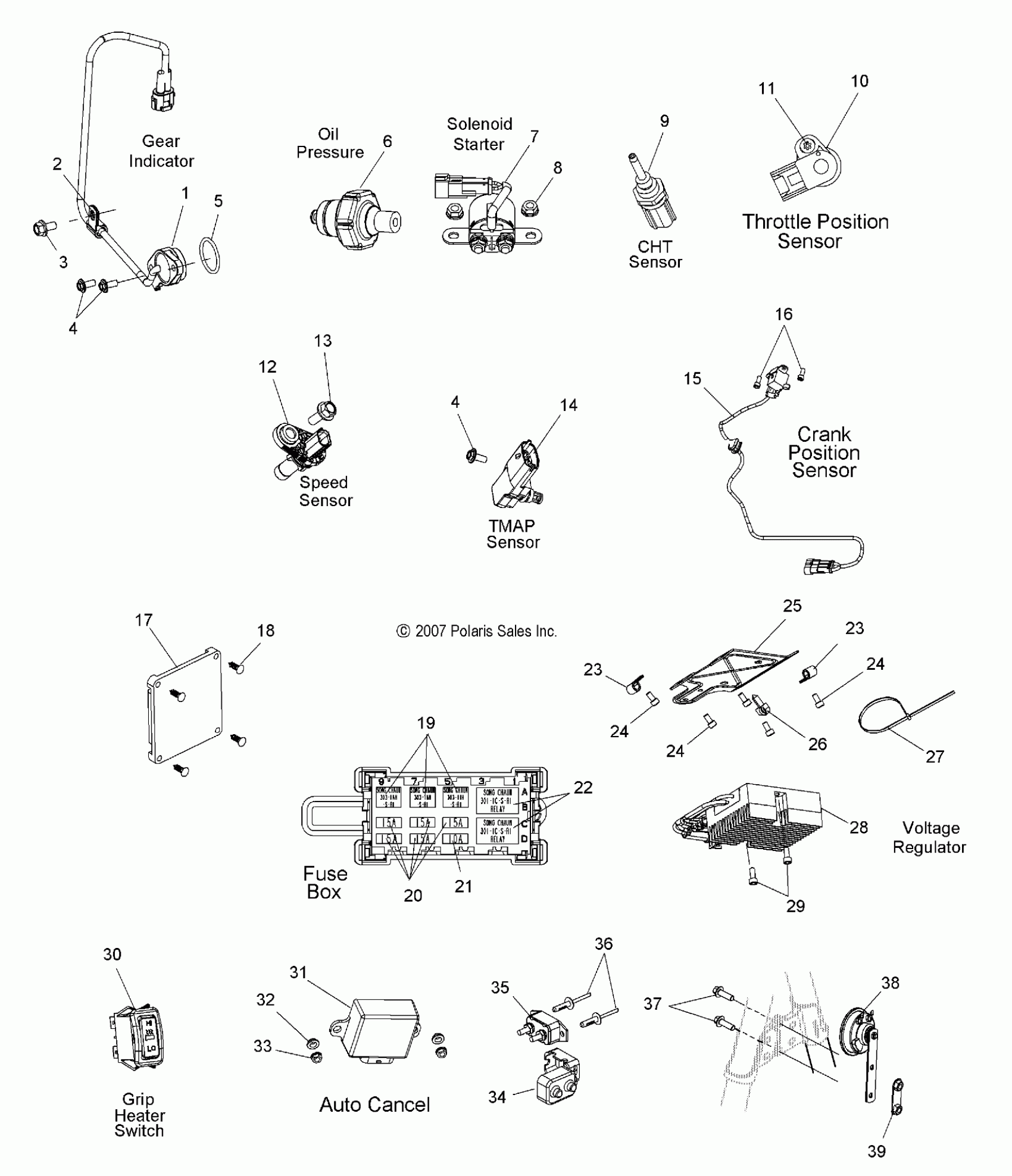

Polaris JACKPOT ALL OPTIONS - V08BC26/XB26 ELECTRICAL, SWITCHES and SENSORS and COMPONENTS - V08BC26/XB26 ALL OPTIONS (49VICSWITCHES08VEGAS) Diagram
#
1
SWITCH, GEAR INDICATOR
4010976
Unavailable
2
CLAMP-REAR BRAKE
7080983
$3.99
3
SCREW
7517257
$9.59
4
SCREW
7518338
$4.79
4
SCREW
7518338
$4.79
5
O-RING
5412530
$1.59
6
Switch, Oil Pressure
4010649
Unavailable
7
SOLENOID, STARTER
4012001
Unavailable
8
Nut
7710495
$4.79
9
Sensor, Cylinder Head Temp
4011299
Unavailable
10
SENSOR, THROTTLE POSITION
4012101
Unavailable
11
SCREW
7518901
Unavailable
12
SENSOR, VEHICLE SPEED
4011884
Unavailable
13
SCREW
7517750
Unavailable
14
Sensor, T-Map
2410605
$133.56
15
Sensor, Crankshaft Position
4011641
Unavailable
16
SCREW
7518045
$10.39
17
PCM, Service
4012157
$614.99
18
CLIP, PLASTIC DART
7670141
$4.79
19
RELAY-SPST,SERIES 303,SEALED
4011283
Unavailable
20
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
21
FUSE-IGNITION,10 AMP
2434016
$4.79
22
RELAY, SERIES 301
4011284
$31.99
23
CLAMP-REAR BRAKE
7080983
$3.99
23
CLAMP-REAR BRAKE
7080983
$3.99
24
Screw
7517739
$9.59
24
Screw
7517739
$9.59
24
Screw
7517739
$9.59
25
BRACKET, CONNECTOR, ZINC/BLACK
5248079-408
Unavailable
26
Clip
7670102
$2.39
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
Regulator, Voltage, Black
4012240
$339.99
28
Regulator, Voltage, Silver
4012241
$339.99
29
SCREW
7517272
$7.19
30
SWITCH-HANDWARMER,SPDT
4011319
$54.99
31
Module, Electronic, Auto Cancel
4011536
Unavailable
32
Bushing, Flange
5134892
$3.33
33
Nut
7710495
$4.79
34
BOOT
4010778
$5.59
35
BREAKER, CIRCUIT
2410332
Unavailable
36
Rivet
7081040
$1.49
37
SCREW
7518569
$3.99
38
Horn
4011589
Unavailable
39
PLATE, NUT, ZINC BLACK
1014760-408
Unavailable
39
Plate, Nut
1014760-236
$8.17
