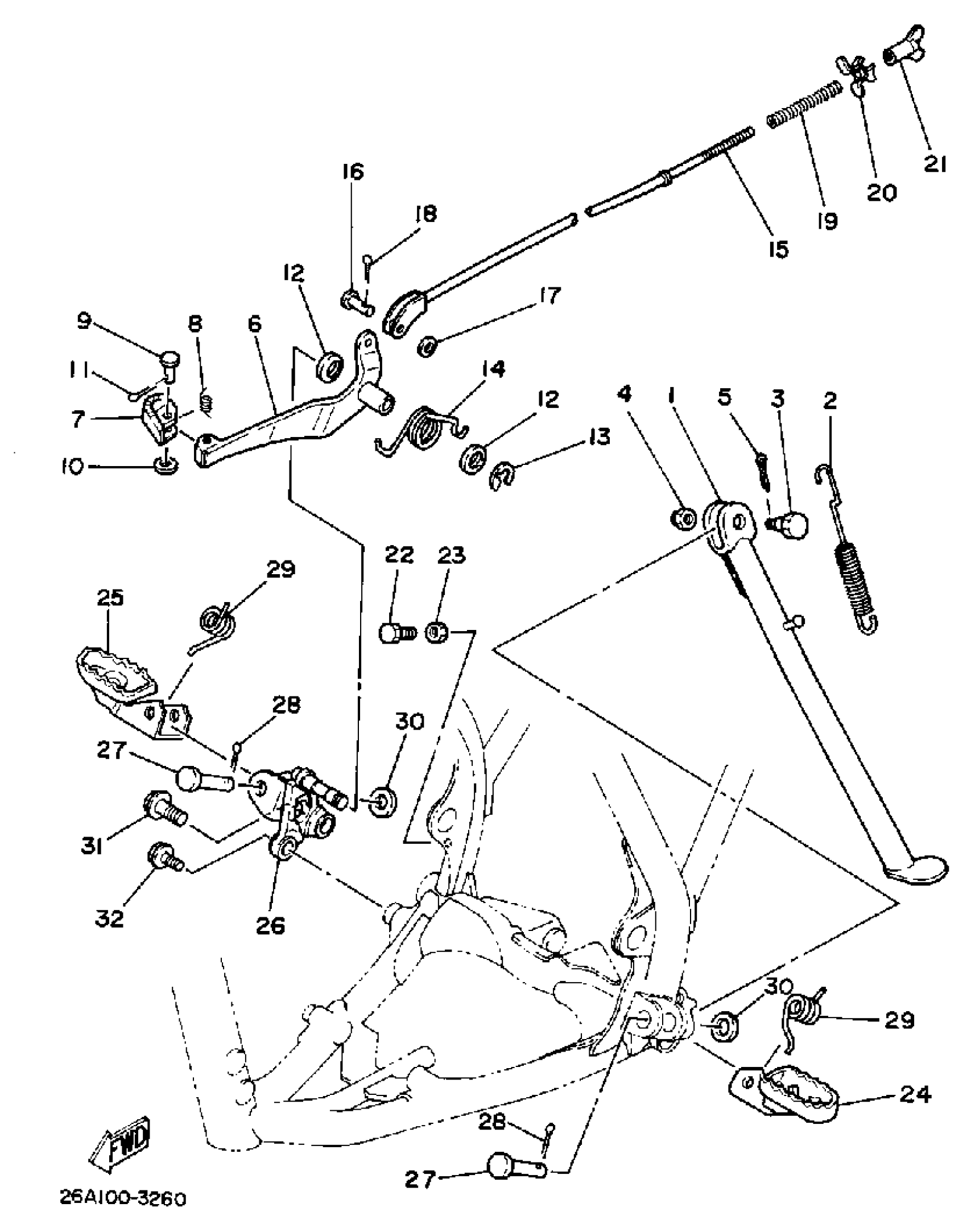

Yamaha IT490K (IT490) 1983 STAND-FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

26A-27311-02-33

Unavailable

2

SPRING (434)

90507-29008-00

$28.99

3

BOLT, WITH HOLE

90102-10051-00

Unavailable

4

NUT, CASTLE

95307-10900-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

PEDAL, BRAKE

29W-27211-00-00

Unavailable

7

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

8

SPRING, TORSION

90508-14429-00

Unavailable

9

PIN, CLEVIS

91702-06028-00

$7.49

10

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

11

PIN, COTTER

91490-20025-00

$1.99

12

COVER, DUST

26A-27286-00-00

Unavailable

13

CIRCLIP (137)

93430-08007-00

$8.49

14

SPRING, TORSION

90508-32589-00

Unavailable

15

ROD, BRAKE

26A-27231-00-00

Unavailable

16

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

PIN, COTTER

91490-20025-00

$1.99

19

SPRING, (180-27236-00)

90501-10245-00

Unavailable

20

SEAT, SPRING

1W2-27239-00-00

Unavailable

21

NUT, AJUSTING

20E-26343-00-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable

24

FOOTREST 1

23X-27411-03-00

Unavailable

25

FOOTREST 2

23X-27421-04-00

Unavailable

26

BRACKET, FOOTREST 2

(26A-27422-00-00)

Unavailable

27

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

SPRING, TORSION (23X)

90508-20583-00

Unavailable

30

WASHER, PLAIN(735)

90201-10119-00

Unavailable

31

BOLT, WASHER BASED

90105-12096-00

Unavailable

32

BOLT, FLANGE

95817-10020-00

Unavailable
