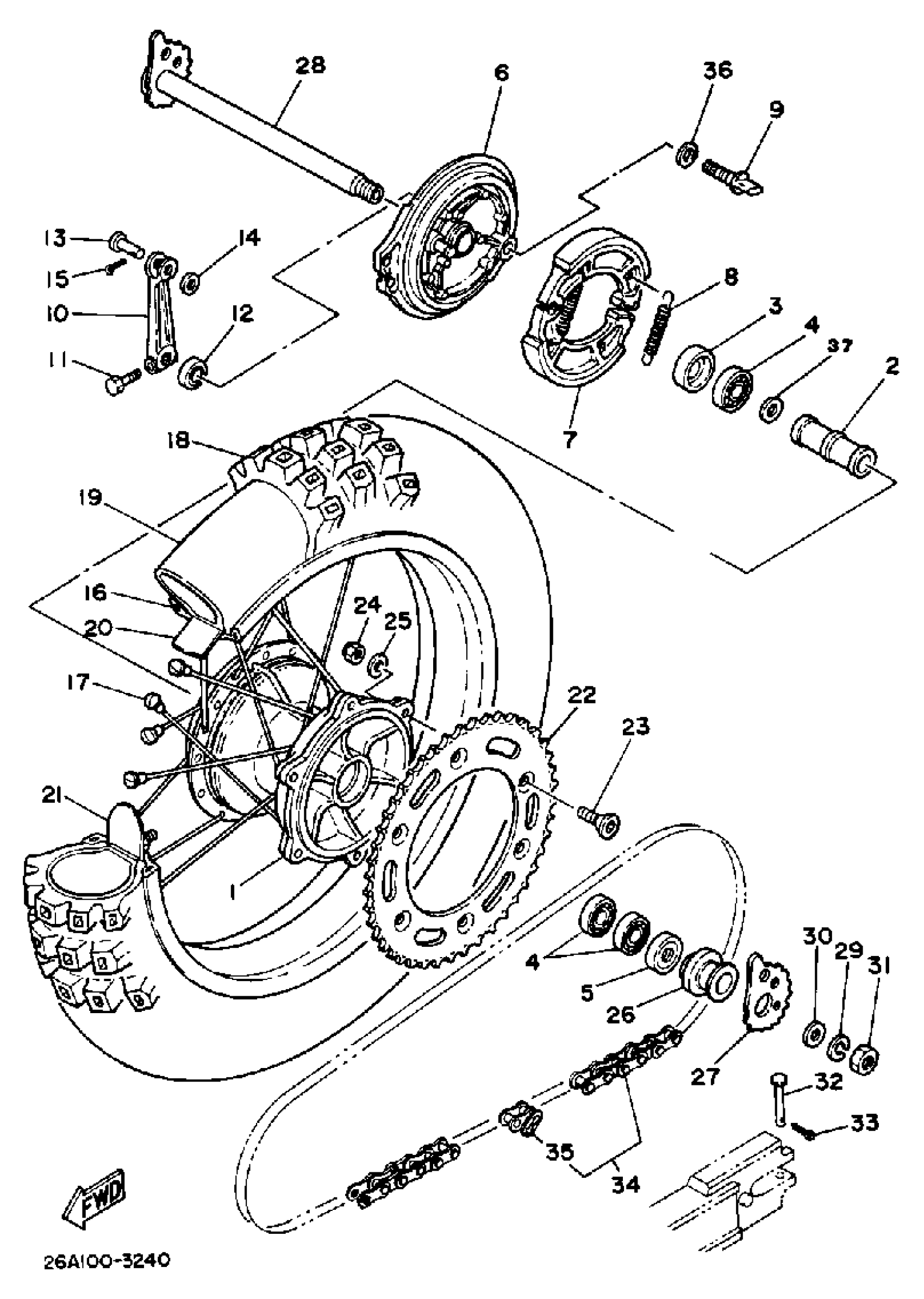

Yamaha IT490K (IT490) 1983 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4V4-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

6

PLATE, BRAKE SHOE

26A-25321-10-98

Unavailable

7

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

8

SPRING, TENSION 2462533300

90507-20002-00

$8.49

9

CAMSHAFT

5L4-25351-00-00

Unavailable

10

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

PIN, CLEVIS

1W2-27237-00-00

Unavailable

14

WASHER, PLATE (583)

90201-12631-00

$9.49

15

PIN, COTTER(6L5)

91490-25030-00

$3.77

16

RIM 2.50X18

94425-18358-00

Unavailable

17

SPOKE SET, REAR

4V4-25304-00-00

Unavailable

18

150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)

94115-186A2-00

Unavailable

19

TUBE

94245-18125-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER, BEAD

2X5-25394-00-00

Unavailable

22

SPROCKET, DRIVEN (42T)

26A-25442-51-00

Unavailable

22

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

22

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

22

SPROCKET, DRIVEN

26A-25448-51-00

Unavailable

22

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

22

SPROCKET, DRIVEN (52T)

26A-25452-51-00

Unavailable

23

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

25

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

26

COLLAR, WHEEL

26A-25383-00-00

Unavailable

27

PULLER, CHAIN 1

4V5-25388-01-00

Unavailable

28

AXLE, WHEEL

26A-25381-01-00

Unavailable

29

WASHER(N15)

92907-18100-00

Unavailable

30

WASHER(3JP)

92903-20600-00

Unavailable

31

NUT

90179-18332-00

Unavailable

32

PIN, CLEVIS

91701-05045-00

Unavailable

32

PIN, CLEVIS

91701-05050-00

Unavailable

33

PIN, COTTER

91490-16020-00

Unavailable

34

CHAIN 520VS-110L

94580-50110-00

Unavailable

35

. JOINT, CHAIN (34L) (DID50HDS)

94680-50011-00

Unavailable

36

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

37

FLANGE, SPACER

4V4-25315-00-00

Unavailable
