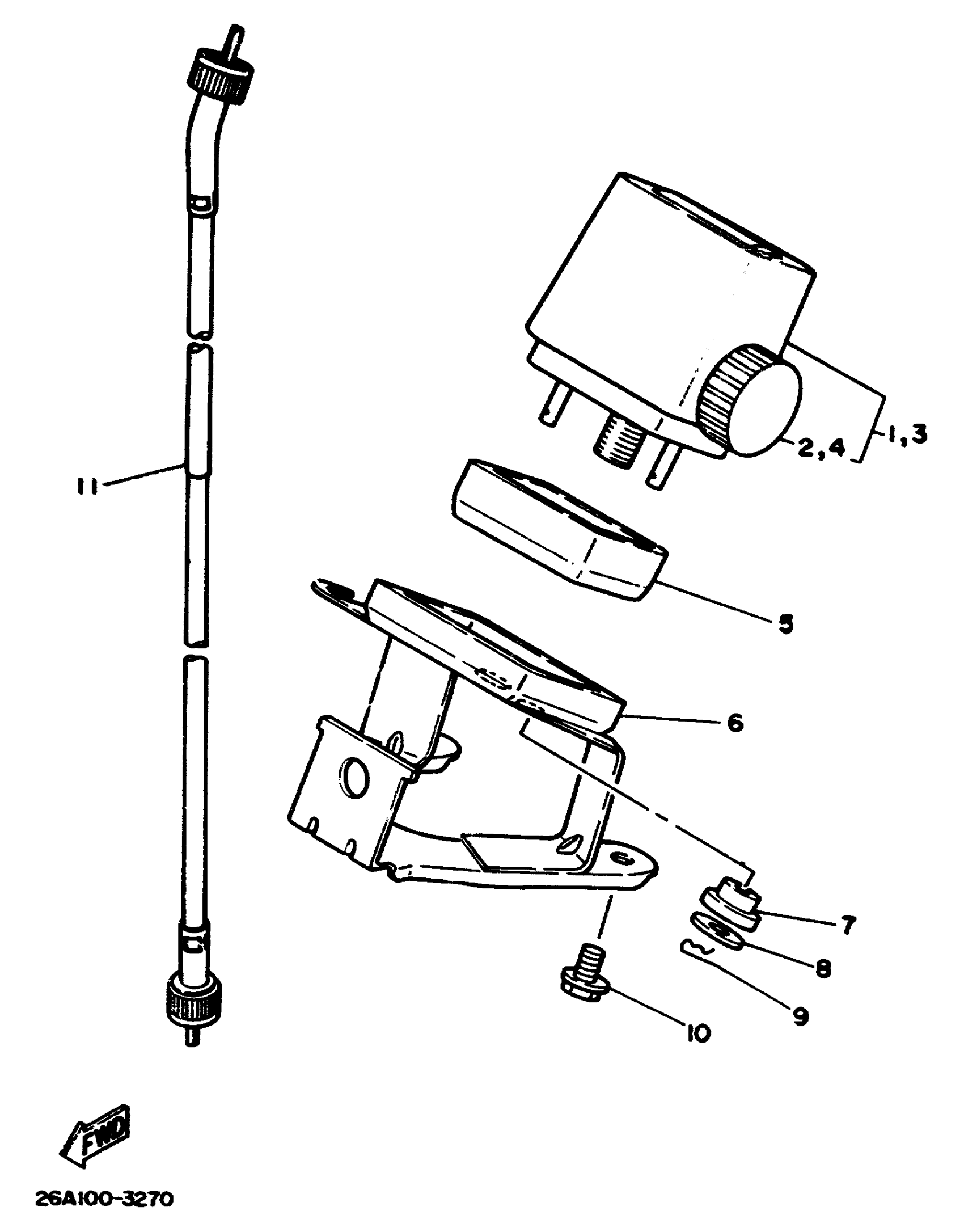

Yamaha IT490K (IT490) 1983 METER Diagram

TRIP METER COMP.

4V5-83505-60-00

Unavailable

. KNOB, TRIP METER

4V5-83578-00-00

Unavailable

TRIP METER CMPLT

4V5-83505-F0-00

Unavailable

. KNOB, TRIP METER

4V5-83578-00-00

Unavailable

DAMPER

4V5-83513-00-00

$14.49

BRACKET, METER

26A-83519-00-00

Unavailable

DAMPER 2

1M1-83526-01-00

$4.47

WASHER PLATE 803835240000

90201-05032-00

Unavailable

CLIP (156-83525-00)

90468-10050-00

$3.05

BOLT, FLANGE

95817-06012-00

$1.43

SPEEDOMETER CABLE ASSY

4V5-83550-02-00

$44.99
