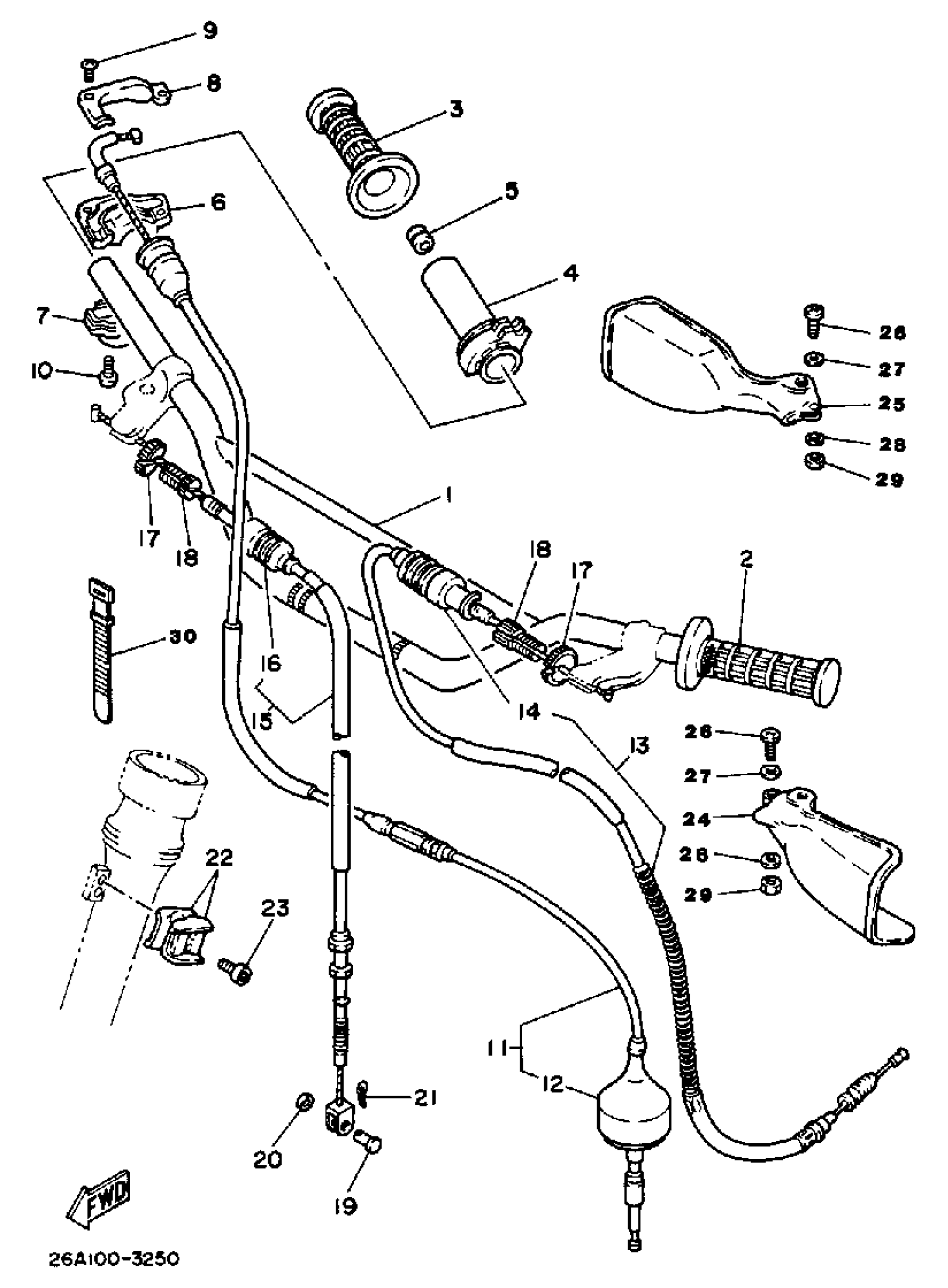

Yamaha IT490K (IT490) 1983 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

1LN-26111-00-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

GRIP (R.H)

1LX-26242-01-00

$34.99

4

TUBE, THROTTLE GUIDE

22W-26243-00-00

$30.99

5

PLUG(2GU)

90338-12192-00

$8.49

6

CAP, GRIP UPPER

5X2-26281-00-00

$37.99

7

CAP, GRIP UNDER

322-26282-00-00

$28.99

8

CAP, WIRE

5X2-2628H-01-00

$27.99

9

SCREW, FLAT

98707-04012-00

$2.18

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

CABLE, THROTTLE 1

26A-26311-00-00

Unavailable

12

CAP, RUBBER

510-26329-01-00

$7.99

13

CABLE, CLUTCH

26A-26335-00-00

Unavailable

14

BOOT, WIRE

1E6-26342-00-00

$30.99

15

CABLE, BRAKE

34K-26341-00-00

Unavailable

16

BOOT, WIRE

1E6-26342-00-00

$30.99

17

NUT

90179-08401-00

Unavailable

18

BOLT (23X)

90123-08090-00

Unavailable

19

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

CLAMP(26A)

90465-16258-00

Unavailable

23

BOLT, SOCKET

91314-06016-00

Unavailable

24

GUARD, BRUSH 1

3R9-26141-00-00

Unavailable

25

GUARD, BRUSH 2

3R9-26142-00-00

Unavailable

26

SCREW, PAN

98507-06014-00

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

29

NUT(650)

95380-06700-00

Unavailable

30

BAND, SWITCH CORD

437-83936-11-00

Unavailable
