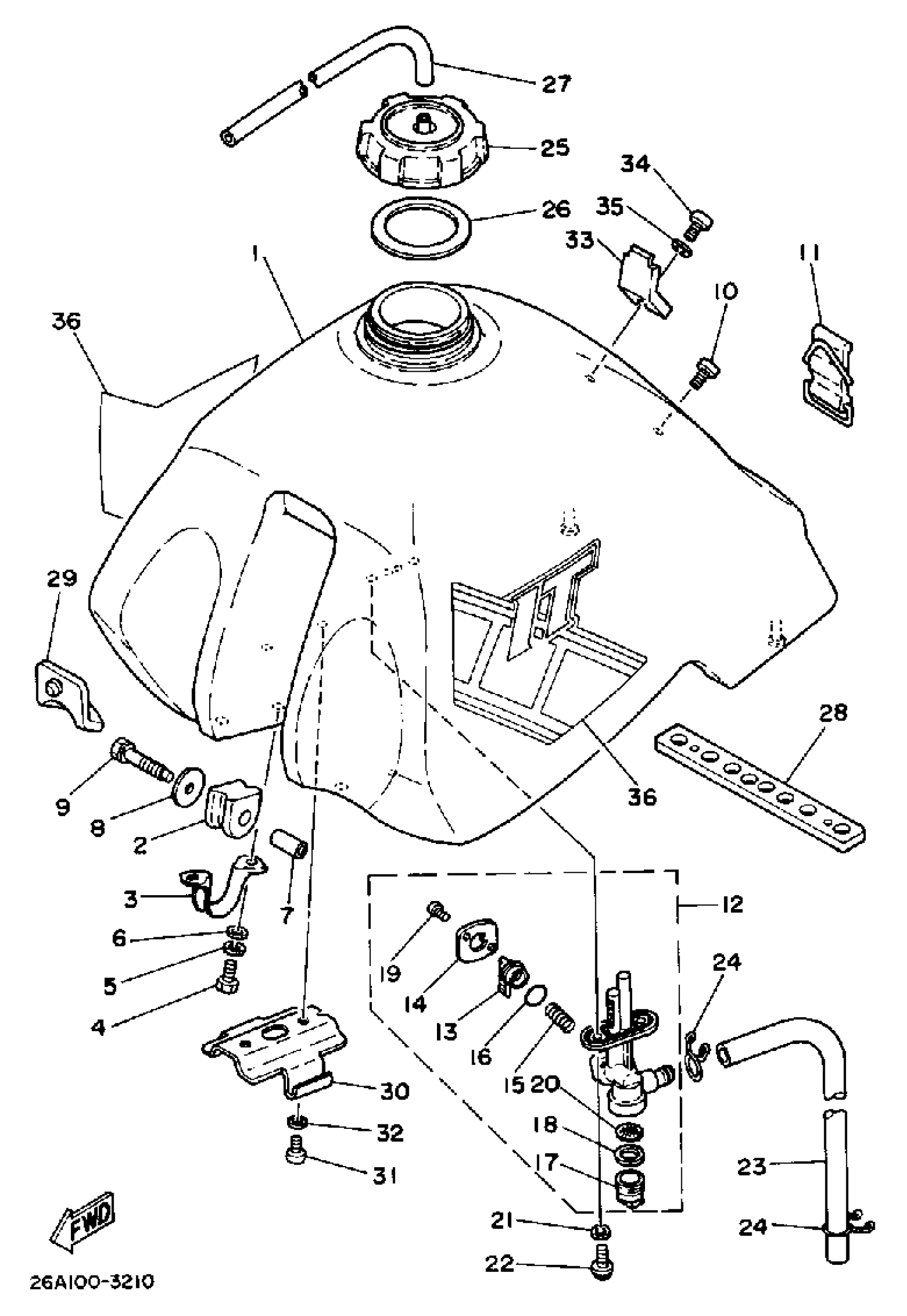

Yamaha IT490K (IT490) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

99999-01655-00

Unavailable

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

3

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

7

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

8

WASHER, PLATE

90201-06747-00

$8.49

9

BOLT, WITH WASHER

90119-06022-00

Unavailable

10

SCREW(3JM)

90149-06306-00

$8.49

11

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

12

FUEL COCK ASSY 1

4FL-24500-01-00

Unavailable

13

LEVER, COCK

(4V5-24524-00-00)

Unavailable

14

. PLATE, LVR FITTING

4V5-24525-00-00

Unavailable

15

SPRING

(357-24529-10-00)

Unavailable

16

GASKET

4X8-24565-10-00

Unavailable

17

CUP, FILTER

4X8-24521-00-00

Unavailable

18

O-RING

4X8-24534-00-00

Unavailable

19

SCREW

4X8-24535-00-00

Unavailable

20

NET, FILTER 2

4X8-24515-01-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

Unavailable

24

CLIP

90467-100A1-00

Unavailable

25

CAP ASSY

5MV-24610-00-00

Unavailable

26

GASKET,CAP

3R9-24612-00-00

Unavailable

27

HOSE (L420)

90445-092K1-00

Unavailable

28

DAMPER, LOCATING 1

26A-24181-00-00

Unavailable

29

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

30

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

31

SCREW PAN HEAD

98580-06010-00

Unavailable

32

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

33

BRACKET, SEAT

24Y-2412F-00-00

Unavailable

34

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

GRAPHIC SET

1TY-24250-00-00

Unavailable

36

GRAPHIC SET

(26A-24250-00-00)

Unavailable
