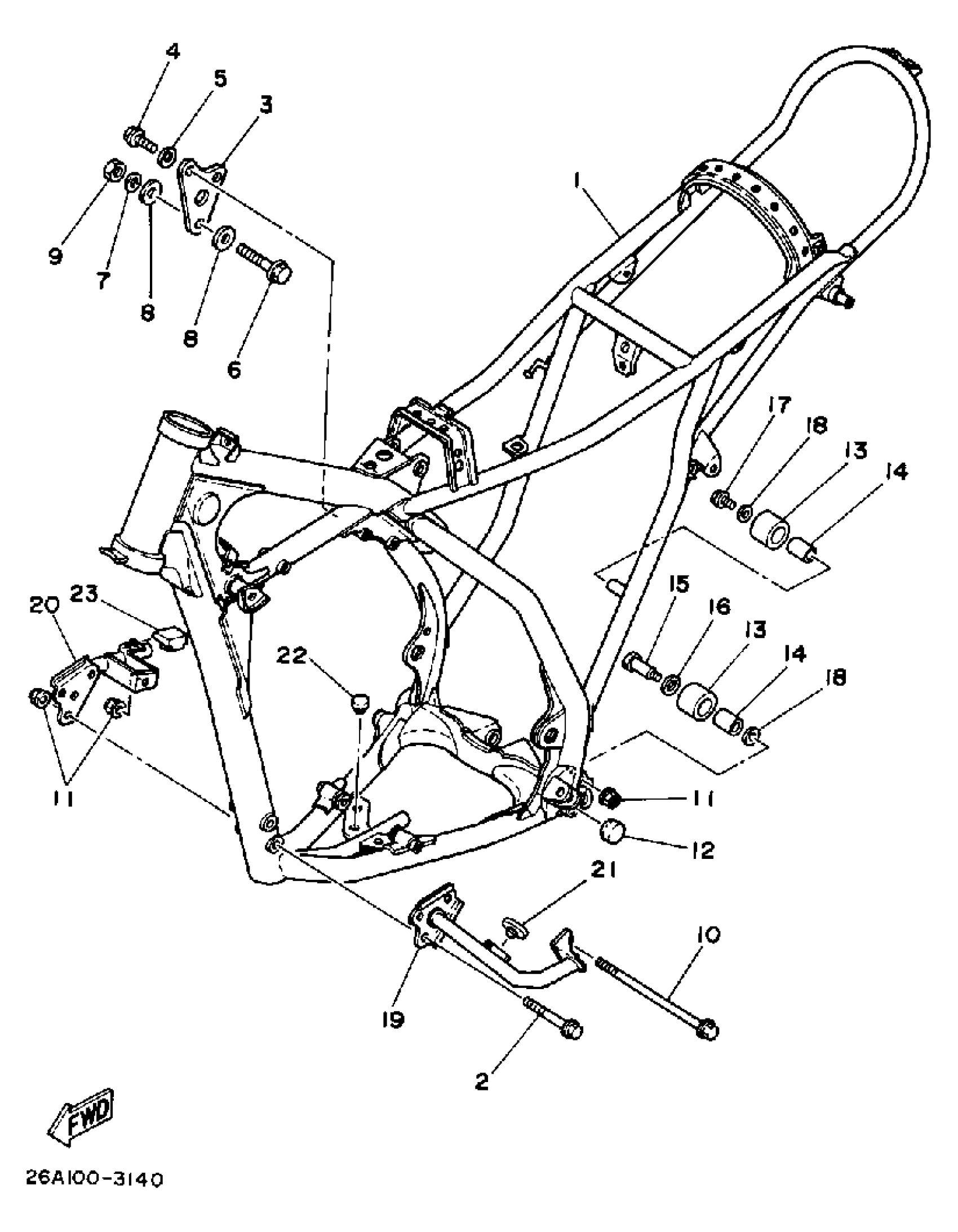

Yamaha IT490K (IT490) 1983 FRAME Diagram

#

Description
Price

1

FRAME

(26A-21110-00-33)

Unavailable

2

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

3

BRACKET, REAR UPR 1

23X-21425-01-00

Unavailable

4

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

5

WASHER 6464313202

90202-08022-00

$4.14

6

BOLT, FLANGE

95817-10060-00

$7.49

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

8

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

9

NUT, SELF-LOCKING

90185-10170-00

$9.49

10

BOLT,FLANGE

95817-08175-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

PLUG, TAPER

90336-25040-00

Unavailable

13

TENSIONER

30X-22178-00-00

$35.99

14

BUSH

4V4-22184-00-00

$4.47

15

BOLT

90109-08733-00

Unavailable

16

WASHER, PLATE

90201-13013-00

Unavailable

17

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

18

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

19

GUARD, ENGINE 1

26A-2147A-00-33

Unavailable

20

GUARD, ENGINE 2

(26A-2147E-00-33)

Unavailable

21

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

Unavailable

22

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

23

DAMPER, RUBBER 1

26A-21485-00-00

Unavailable
