Description

Price

1

EXHAUST PIPE ASSEMBLY LASSEMBLY 1

26A-14610-00-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$31.99

3

SPRING, TENSION (1W4)

90507-20030-00

$14.99

4

STAY, MUFFLER 2

3R4-14781-04-00

$35.99

5

WASHER, PLATE (12X)

90201-087F0-00

$5.60

6

BOLT(JA9)

90101-08691-00

$4.29

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

GASKET, MUFFLER JOINT

1M1-14714-00-00

Unavailable

9

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

10

SILENCER, EXHAUST

26A-14753-00-00

Unavailable

11

PIPE, OUTLET

4V5-14752-00-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

GROMMET

90480-22269-00

Unavailable

18

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

19

STAY, MUFFLER 1

565-14771-01-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

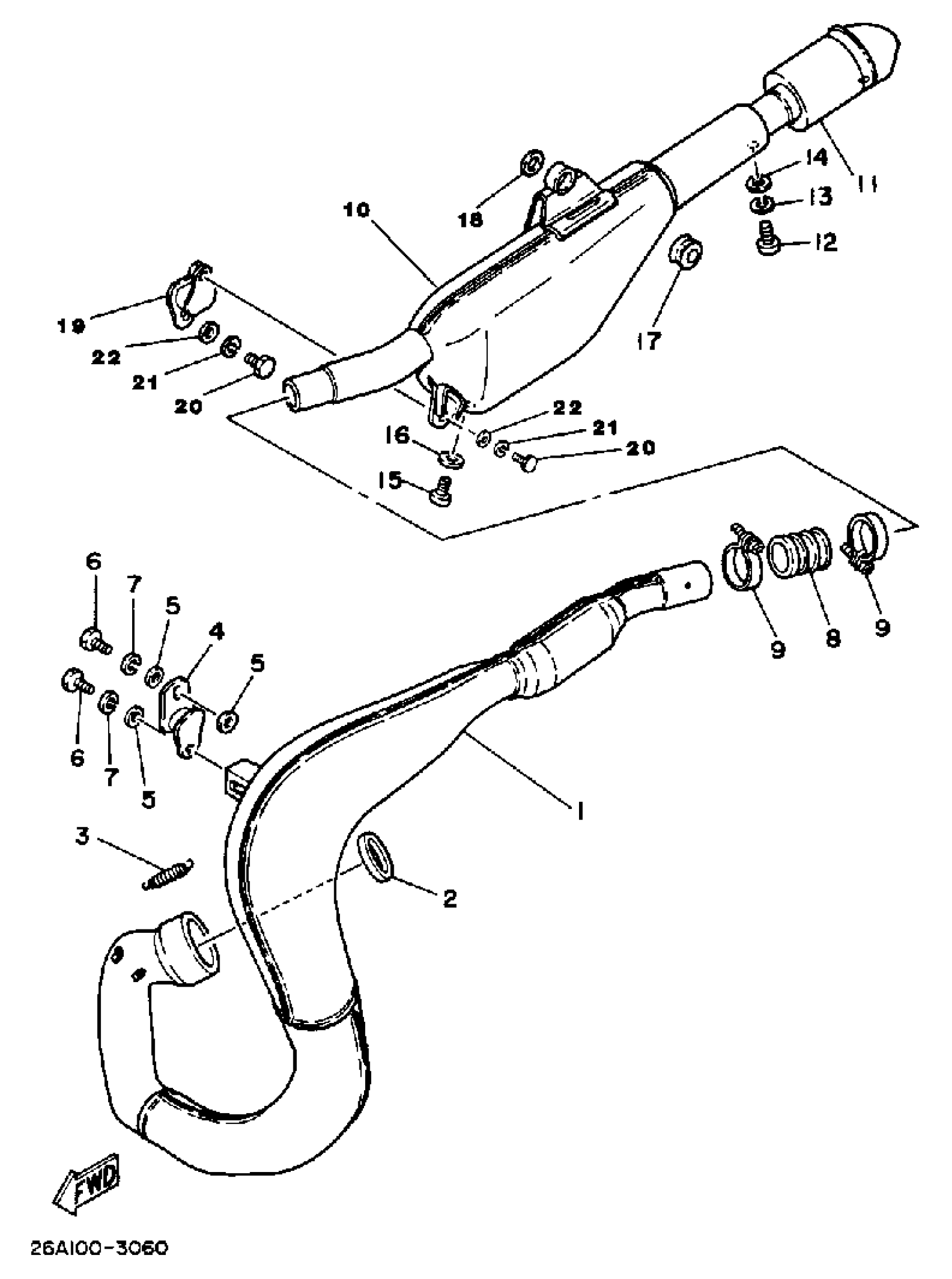

Yamaha IT490K (IT490) 1983 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY LASSEMBLY 1

GASKET, EXHAUST

SPRING, TENSION (1W4)

STAY, MUFFLER 2

WASHER, PLATE (12X)

BOLT(JA9)

YBS67-8 WASHER, SPRING

GASKET, MUFFLER JOINT

CLAMP, HOSE (5H0)

SILENCER, EXHAUST

PIPE, OUTLET

SCREW, PAN HEAD(62J)

WASHER, SPRING

WASHER, PLATE (4H7)

SCREW, PAN HEAD(6A3)

WASHER, PLATE(3MB)

GROMMET

WASHER, PLATE (3X3)

STAY, MUFFLER 1

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (4H7)
