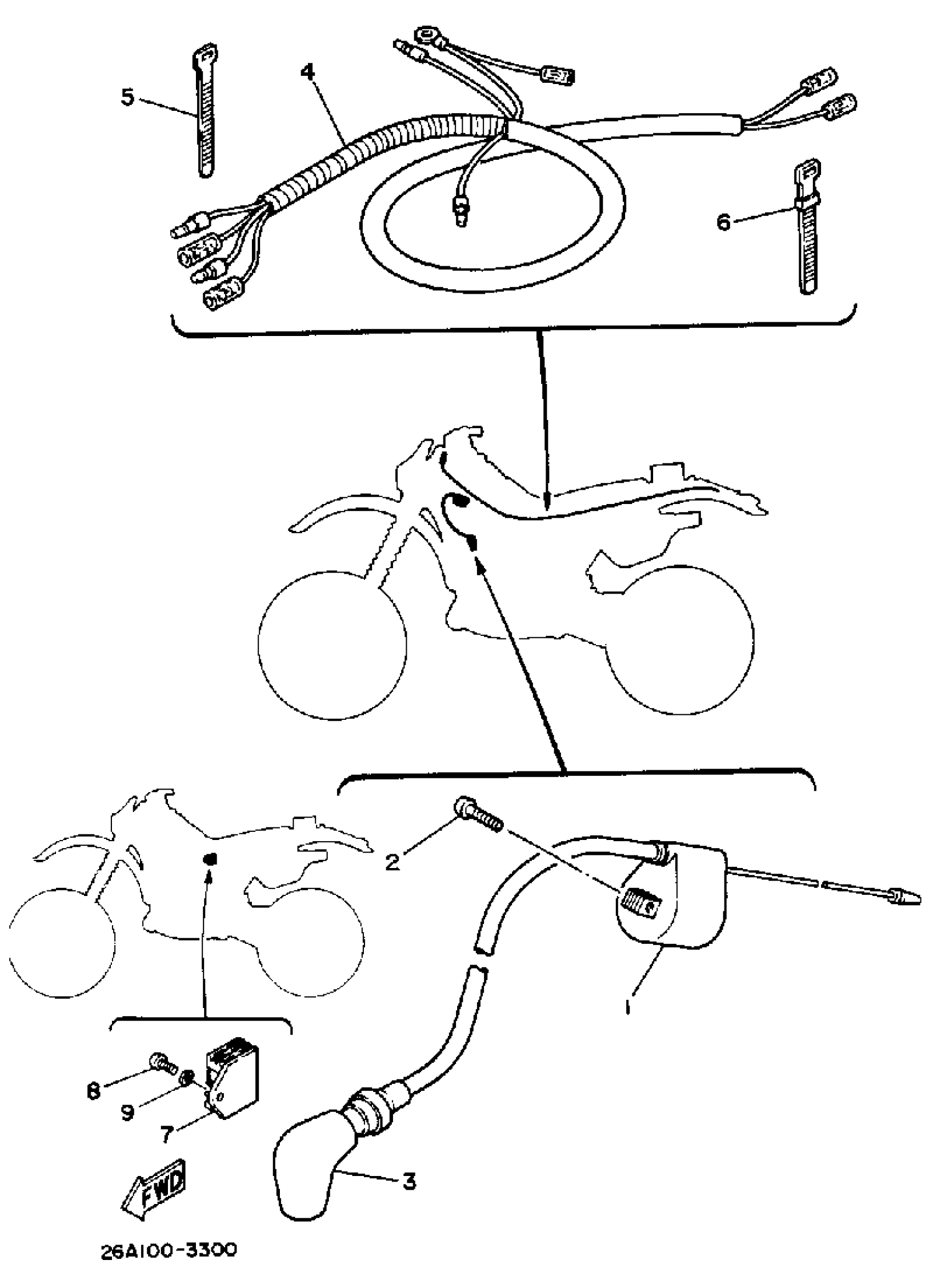

Yamaha IT490K (IT490) 1983 ELECTRICAL Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

43G-82310-40-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$4.89

3

PLUG CAP ASSY

8DG-82370-00-00

$41.54

4

WIRE HARNESS ASSEMBLYASSY

26A-82590-00-00

Unavailable

4

WIRE HARNESS ASSEMBLYASSY

26A-82590-01-00

Unavailable

5

BAND, SWITCH CORD

437-83936-01-00

$4.56

6

BAND, SWITCH CORD

437-83936-11-00

$3.34

7

VOLTAGE REGULATOR ASSY

4F4-81910-60-00

Unavailable

8

SCREW, PAN

98507-06014-00

$5.76

9

WASHER, SPRING

92995-06100-00

$2.95
