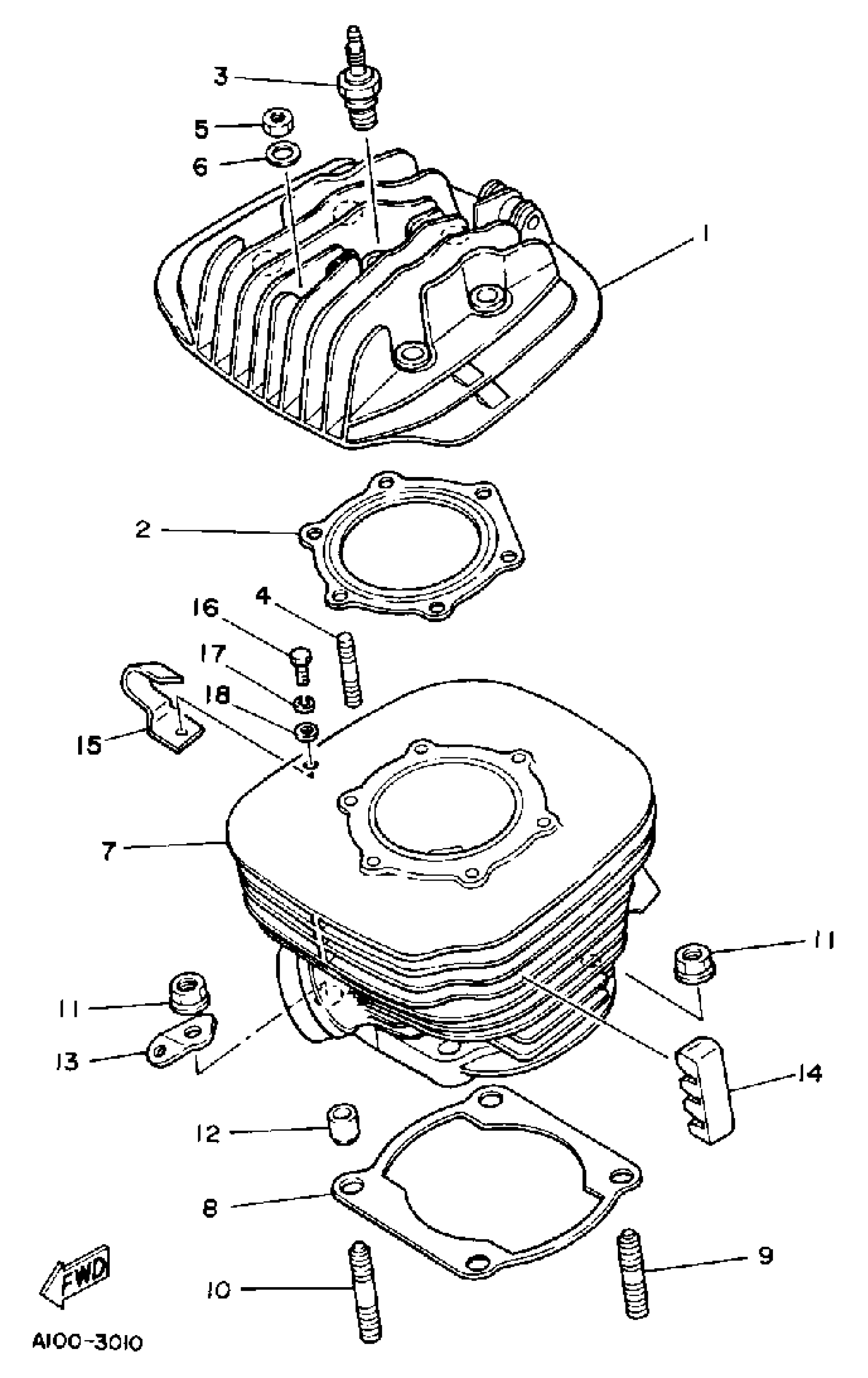

Yamaha IT490K (IT490) 1983 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

26A-11111-00-00

Unavailable

2

GASKET, CYLINDER HEAD 1

5X6-11181-00-00

Unavailable

3

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

4

BOLT, STUD (5V6)

90116-08394-00

$11.49

5

NUT(6L2)

95333-08600-00

$2.49

6

WASHER (1T1)

90201-08649-00

$9.49

7

CYLINDER 1

26A-11311-00-00

Unavailable

8

GASKET, CYLINDER

40T-11351-01-00

$22.99

9

BOLT, STUD

90116-12315-00

Unavailable

10

BOLT, STUD

90116-12316-00

Unavailable

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

PIN, DOWEL(MH0)

91815-16017-00

$8.49

13

HOOK, SPRING

3R5-14619-00-00

Unavailable

14

ABSORBER 2

3R6-11162-00-00

Unavailable

15

HOLDER 1

26A-1131E-00-00

Unavailable

16

BOLT(8CP)

97017-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
