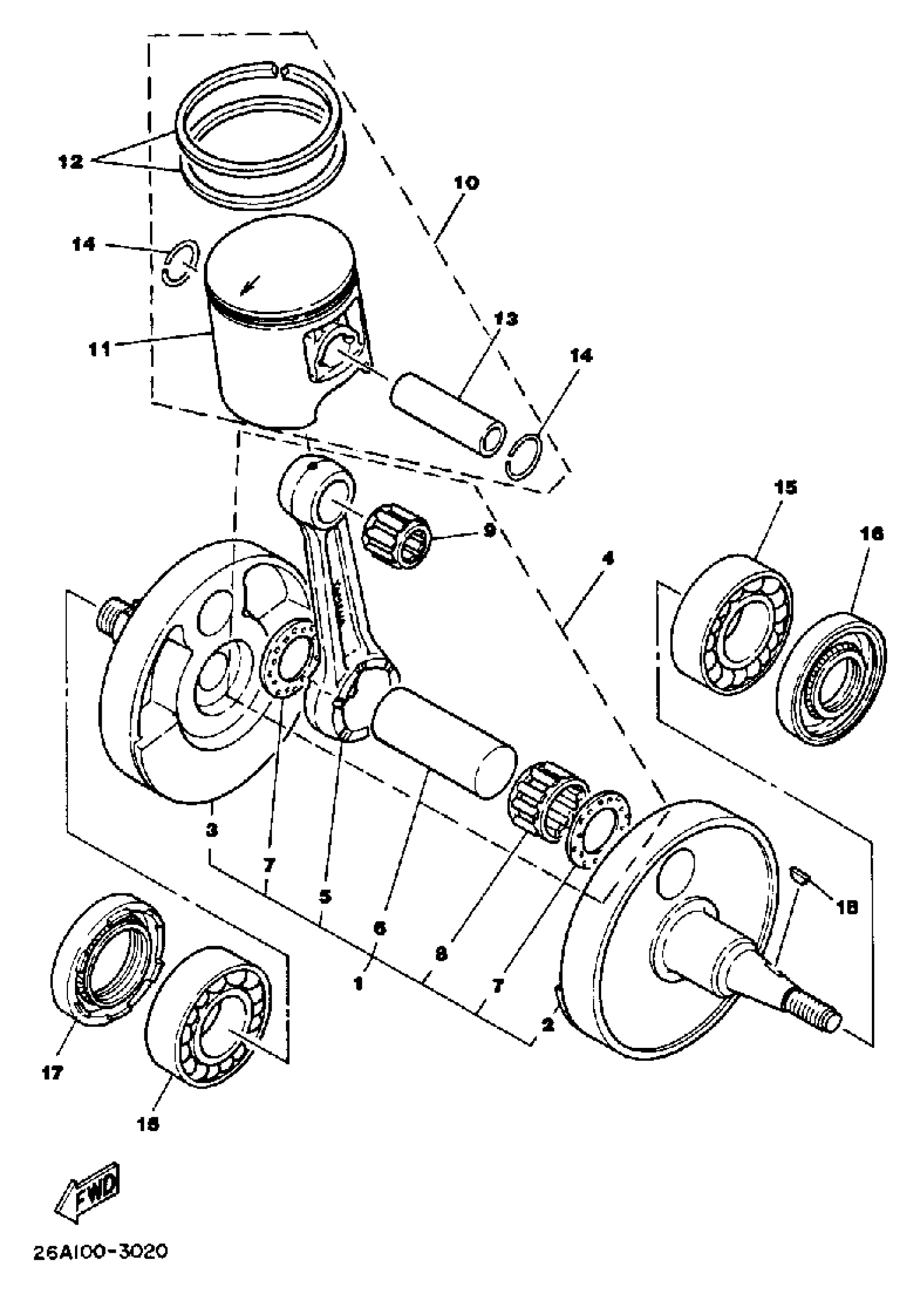

Yamaha IT490K (IT490) 1983 CRANKSHAFT-PISTON Diagram

CRANKSHAFT ASSEMBLY

(26A-11400-00-00)

Unavailable

CRANK 1

(26A-11412-00-00)

Unavailable

. CRANK 2

26A-11422-00-00

Unavailable

CONNECTING ROD ASSY

3R5-11650-00-00

Unavailable

ROD, CONNECTING

3R5-11651-00-00

$197.99

PIN, CRANK

3R8-11681-00-00

$46.99

WASHER 275116850000

90209-25085-00

$12.49

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

PISTON N.A.KIT STD

26A-11630-00-KT

Unavailable

. PISTON STD

26A-11631-00-93

Unavailable

. PISTON RING SET STD

5X6-11601-00-00

Unavailable

PIN, PISTON

275-11633-00-00

$35.99

CIRCLIP (2F1)

93450-19052-00

$7.49

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

OIL SEAL(38V)

93103-30150-00

Unavailable

OIL SEAL (434)

93103-40091-00

Unavailable

PISTON KIT 1ST

(26A-11630-10-00)

Unavailable

PISTON N.A.KIT 2ND (3RD O/S)

26A-11630-20-KT

Unavailable

PISTON KIT 4TH

(26A-11630-40-00)

Unavailable

PISTON 1 O/S 0.25 (1ST O/S .25MM)

26A-11635-00-00

Unavailable

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

26A-11636-00-00

Unavailable

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

26A-11637-00-00

Unavailable

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

26A-11638-00-00

Unavailable

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

Unavailable

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

Unavailable

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

Unavailable

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
