Description

Price

1

CARBURETOR ASSEMBLY 1

4V6-14101-10-00

Unavailable

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

3

JET, PILOT (# 50)

193-14142-50-00

$8.99

4

. NOZZLE, MAIN

510-14141-52-00

Unavailable

5

JET,MAIN #360

137-14143-72-00

$6.99

5

JET,MAIN #370

137-14143-74-00

$7.99

5

JET,MAIN #380

137-14143-76-00

$7.99

6

FLOAT

2N7-14185-00-00

$85.99

7

NEEDLE VALVE SET

23X-14107-35-00

$45.99

8

PIN, FLOAT

537-14186-00-00

$7.99

9

HOSE

88R-14987-00-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

HOSE

89A-14987-00-00

$16.49

13

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

14

. CBLE AJST SCRW SET

26A-14106-00-00

Unavailable

15

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

Unavailable

16

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

17

. VALVE, THROTTLE 1

2X8-14112-20-00

Unavailable

18

. PLATE

3R4-14146-00-00

Unavailable

19

. WASHER, MAIN JET

2X8-14153-00-00

Unavailable

20

. PLUG, SCREW

510-14115-00-00

Unavailable

21

O-RING (541)

558-14147-00-00

Unavailable

22

. NEEDLE SET

26A-1490J-00-00

Unavailable

23

. STARTER SET

26A-1410A-00-00

Unavailable

24

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

Unavailable

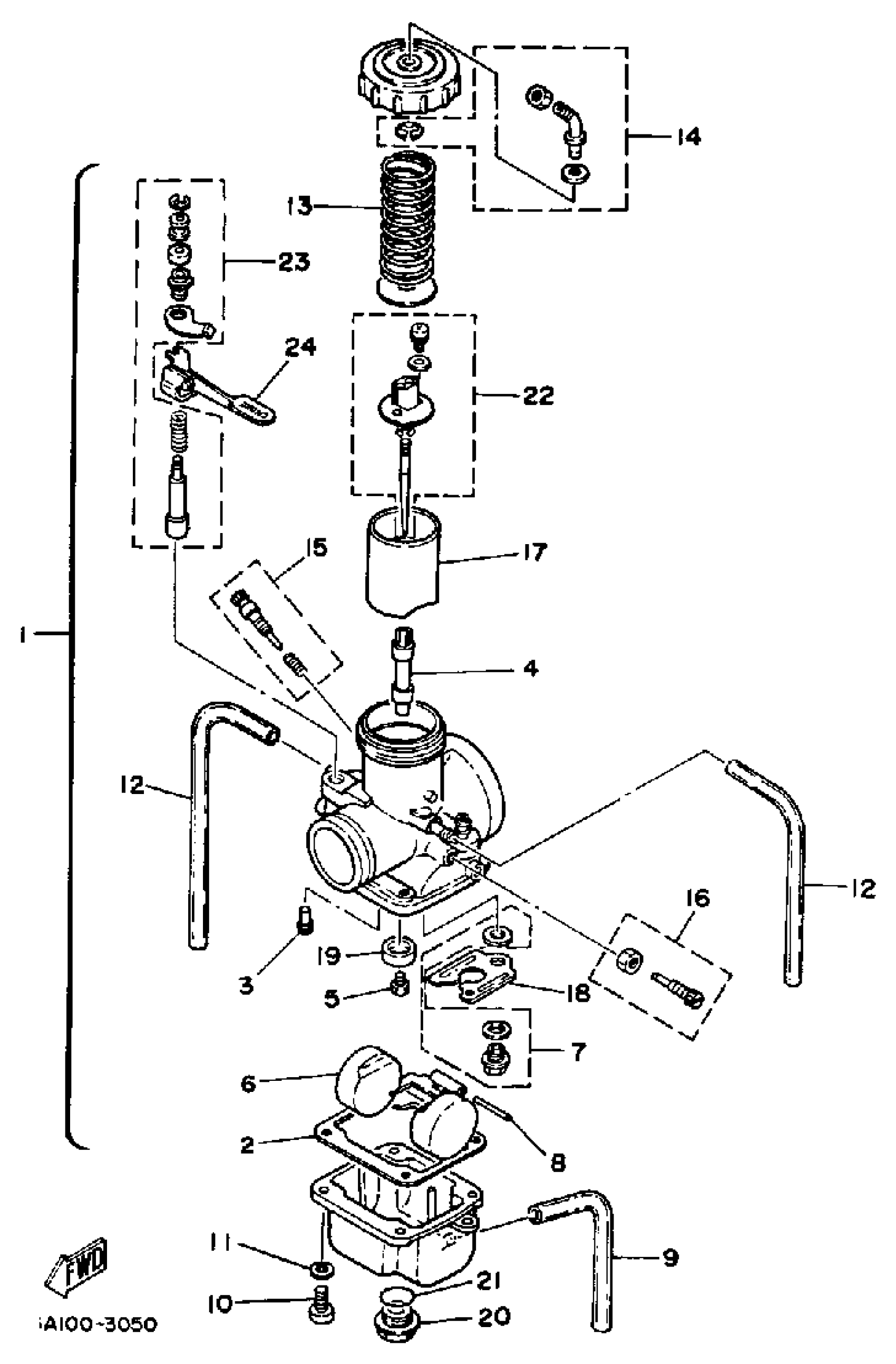

Yamaha IT490K (IT490) 1983 CARBURETOR Diagram

CARBURETOR ASSEMBLY 1

GASKET, FLOAT CHAMBER BODY

JET, PILOT (# 50)

. NOZZLE, MAIN

JET,MAIN #360

JET,MAIN #370

JET,MAIN #380

FLOAT

NEEDLE VALVE SET

PIN, FLOAT

HOSE

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

HOSE

. SPRING, THROTTLE VALVE

. CBLE AJST SCRW SET

. AIR SCREW SET (1W3-14123-00)

THROTTLE SCREW SET

. VALVE, THROTTLE 1

. PLATE

. WASHER, MAIN JET

. PLUG, SCREW

O-RING (541)

. NEEDLE SET

. STARTER SET

. COVER, PLUNGER CAP (1W3-14173-00-00)
