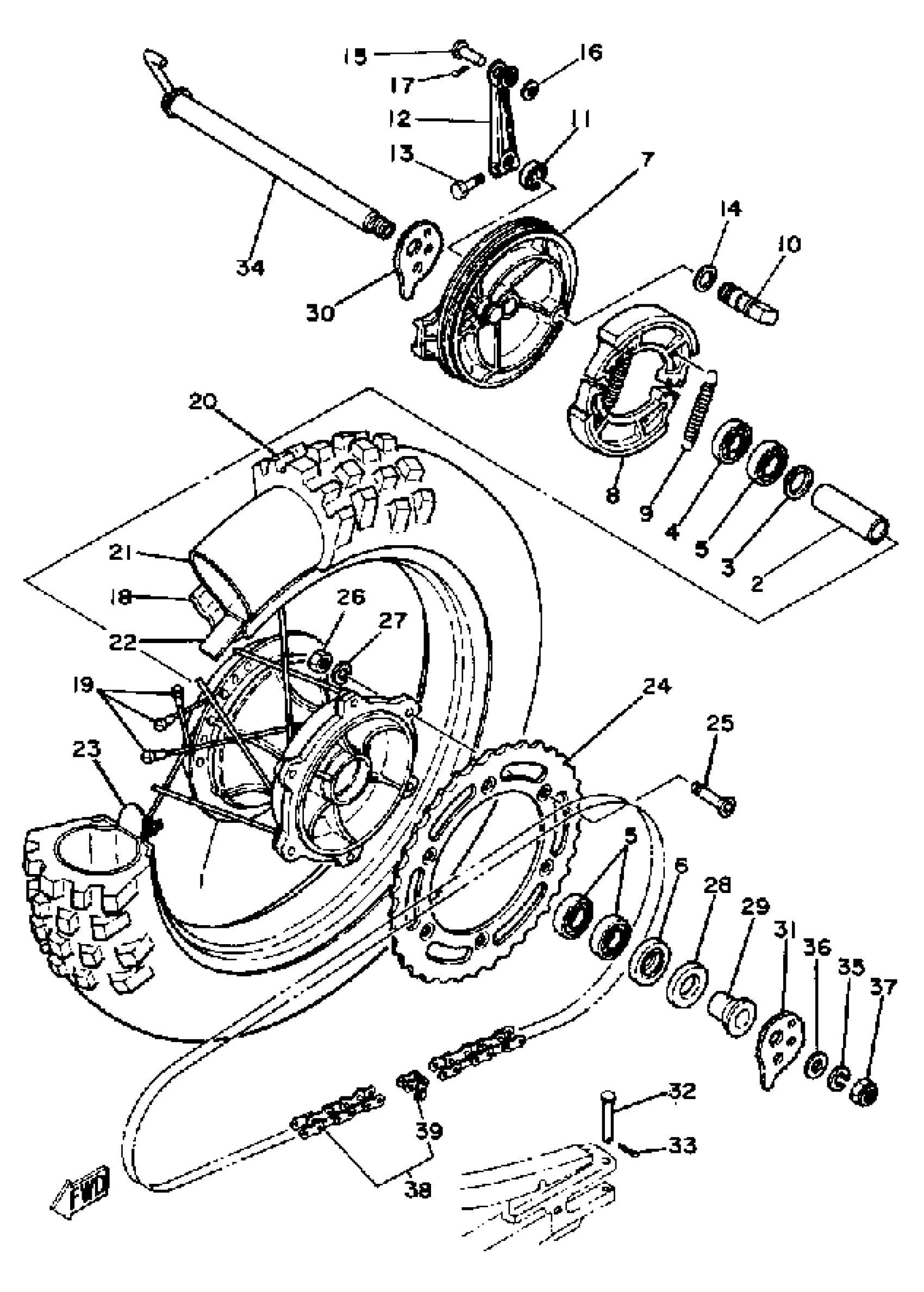

Yamaha IT465J (IT465) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4V4-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

FLANGE, SPACER

4V4-25315-00-00

Unavailable

4

BEARING(8AB)

93306-00444-00

$41.99

5

BEARING(3BN)

93306-00438-00

$37.99

6

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

7

PLATE, BRAKE SHOE

4V5-25321-01-98

Unavailable

8

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

9

SPRING, TENSION 2462533300

90507-20002-00

$8.49

10

CAMSHAFT

5L4-25351-00-00

Unavailable

11

SEAL, CAM SHAFT

148-25359-00-00

$4.78

12

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

13

BOLT, HEXAGON (462)

90101-06291-00

$8.49

14

SHIM, CAM SHAFT

148-25353-00-00

$6.99

15

PIN, CLEVIS

1W2-27237-00-00

Unavailable

16

WASHER, PLATE (583)

90201-12631-00

Unavailable

17

PIN, COTTER(6L5)

91490-25030-00

Unavailable

18

RIM 2.50X17

94425-17281-00

Unavailable

19

SPOKE SET, REAR

4V6-25304-00-00

Unavailable

20

5.60 17 IRC TIRE

(94156-17675-00)

Unavailable

21

TUBE (94246-17158-00)

94240-17164-00

Unavailable

22

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

23

SPACER, BEAD

2X5-25394-00-00

Unavailable

24

SPROCKET, DRIVEN (42T)

26A-25442-51-00

Unavailable

24

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

24

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

25

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

27

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

28

COVER, HUB DUST

4V4-25367-00-00

Unavailable

29

COLLAR

90387-201E6-00

Unavailable

30

PULLER, CHAIN 2

4V5-25389-00-00

Unavailable

31

PULLER, CHAIN 1

4V5-25388-01-00

Unavailable

32

PIN, CLEVIS

91701-05055-00

Unavailable

33

PIN, COTTER

91490-16020-00

Unavailable

34

AXLE, WHEEL

4V5-25381-00-00

Unavailable

35

WASHER(N15)

92907-18100-00

Unavailable

36

WASHER(3JP)

92903-20600-00

Unavailable

37

NUT

90179-18332-00

Unavailable

38

CHAIN,DRIVE (DID520V.6-108L)

9Y581-08107-00

Unavailable

39

. JOINT, CHAIN (34L) (DID50HDS)

94680-50011-00

Unavailable
