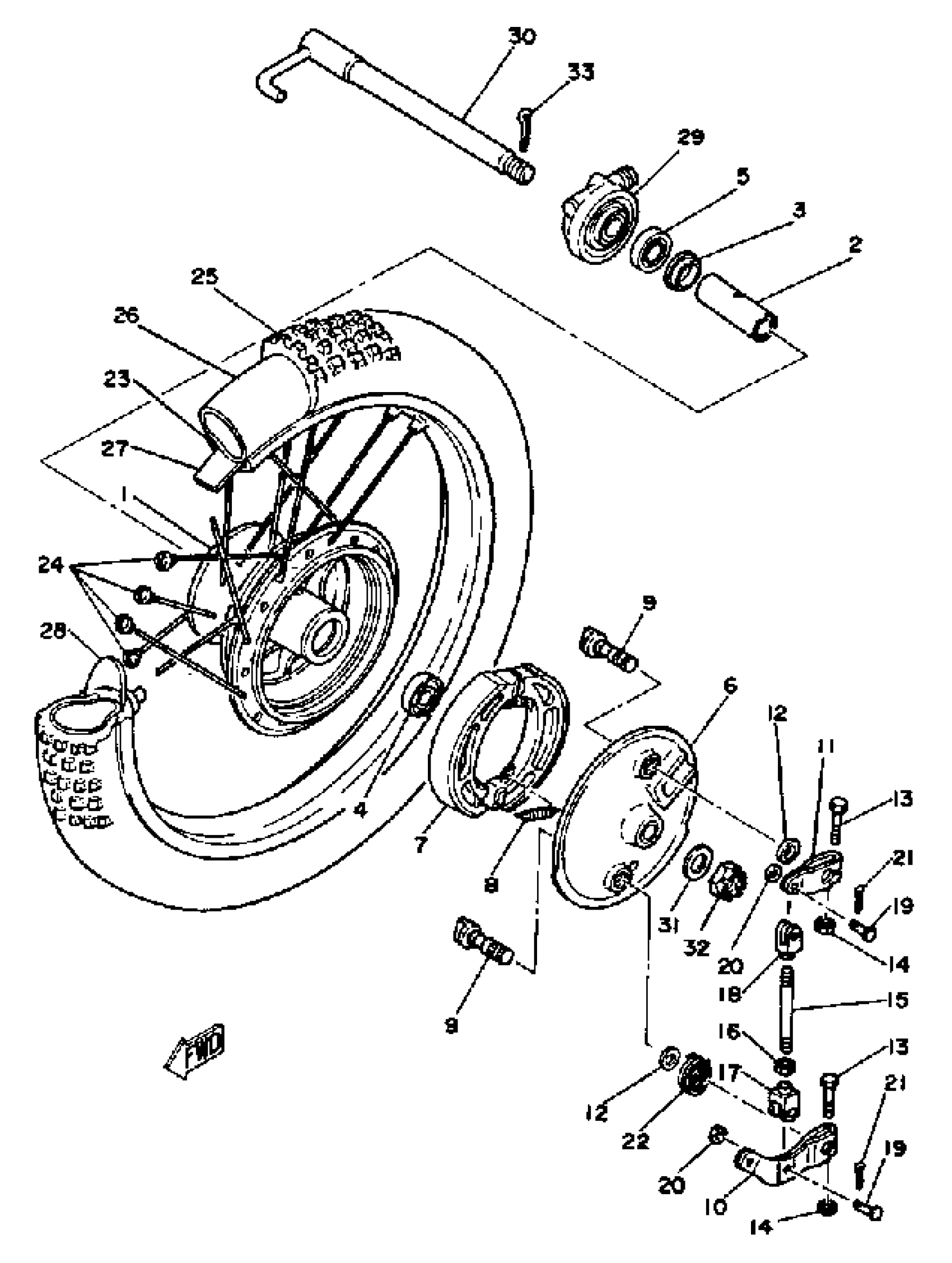

Yamaha IT465J (IT465) 1982 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

23X-25111-00-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

PLATE, BRAKE SHOE

3R5-25121-01-98

Unavailable

7

BRAKE SHOE KIT

4V4-W253A-00-00

$29.99

8

SPRING (5T9)

90506-17328-00

Unavailable

9

CAMSHAFT

23X-25151-00-00

Unavailable

10

LEVER, CAMSHAFT 1

3R5-25155-00-00

Unavailable

11

LEVER, CAMSHAFT 2

3R5-25156-00-00

Unavailable

12

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

ROD, CONNECTING

3R5-25161-00-00

Unavailable

16

NUT(650)

95380-06700-00

Unavailable

17

END, ROD 1

152-25163-00-00

Unavailable

18

END, ROD 2

152-25164-00-00

Unavailable

19

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

SPRING, TORSION

90508-20425-00

Unavailable

23

RIM 1.60X21

94416-21234-00

Unavailable

24

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

25

300-21 MARK 2 (TT)

(94130-21654-00)

Unavailable

26

TUBE

94230-21126-00

Unavailable

27

BAND, RIM (2A6)

94330-21084-00

Unavailable

28

SPACER, BEAD

4V5-25194-00-00

Unavailable

29

GEAR UNIT ASSY

3XP-25190-00-00

Unavailable

30

. AXLE, WHEEL

43F-25181-00-00

Unavailable

30

. WASHER, PLATE

90201-15423-00

Unavailable

30

AXLE, WHEEL

(99999-01618-00)

Unavailable

31

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

32

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable
