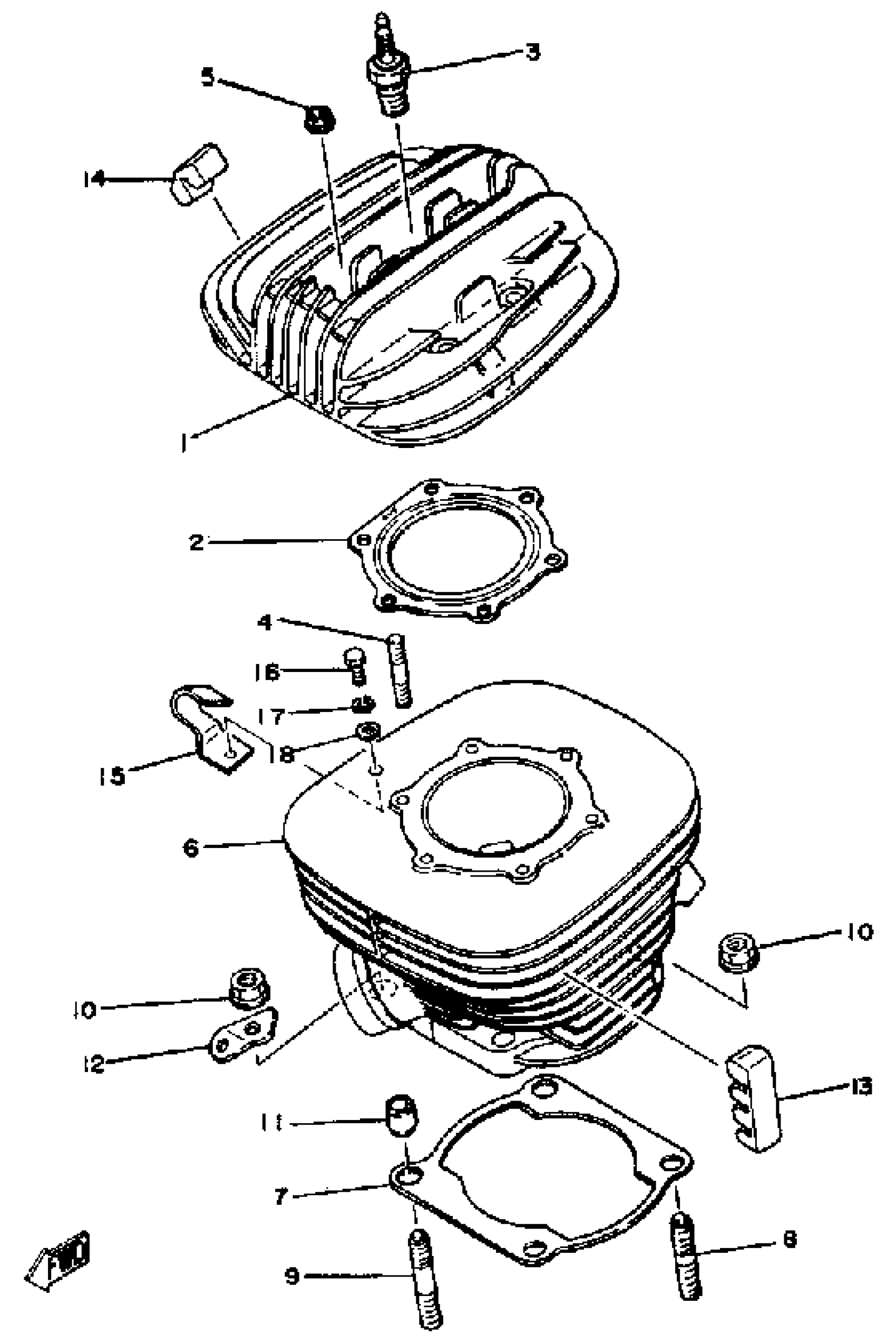

Yamaha IT465J (IT465) 1982 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(3R5-11111-00-00)

Unavailable

2

GASKET, CYLINDER HEAD 1

4V6-11181-00-00

Unavailable

3

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

4

BOLT, STUD(3XV)

90116-08564-00

$10.49

5

NUT(55X)

90179-08491-00

$8.49

6

CYLINDER 1

4V6-11311-00-00

Unavailable

7

GASKET, CYLINDER

40T-11351-01-00

$22.99

8

BOLT, STUD

90116-12315-00

Unavailable

9

BOLT, STUD

90116-12316-00

Unavailable

10

NUT(3GG)

90179-12588-00

$7.49

11

PIN, DOWEL(MH0)

91815-16017-00

$8.49

12

HOOK, SPRING

3R5-14619-00-00

Unavailable

13

ABSORBER 3

2A6-11127-00-00

Unavailable

14

ABSORBER 1

4V5-11161-00-00

Unavailable

15

HOLDER 1

4V5-1131E-00-00

Unavailable

16

BOLT(8CP)

97017-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
