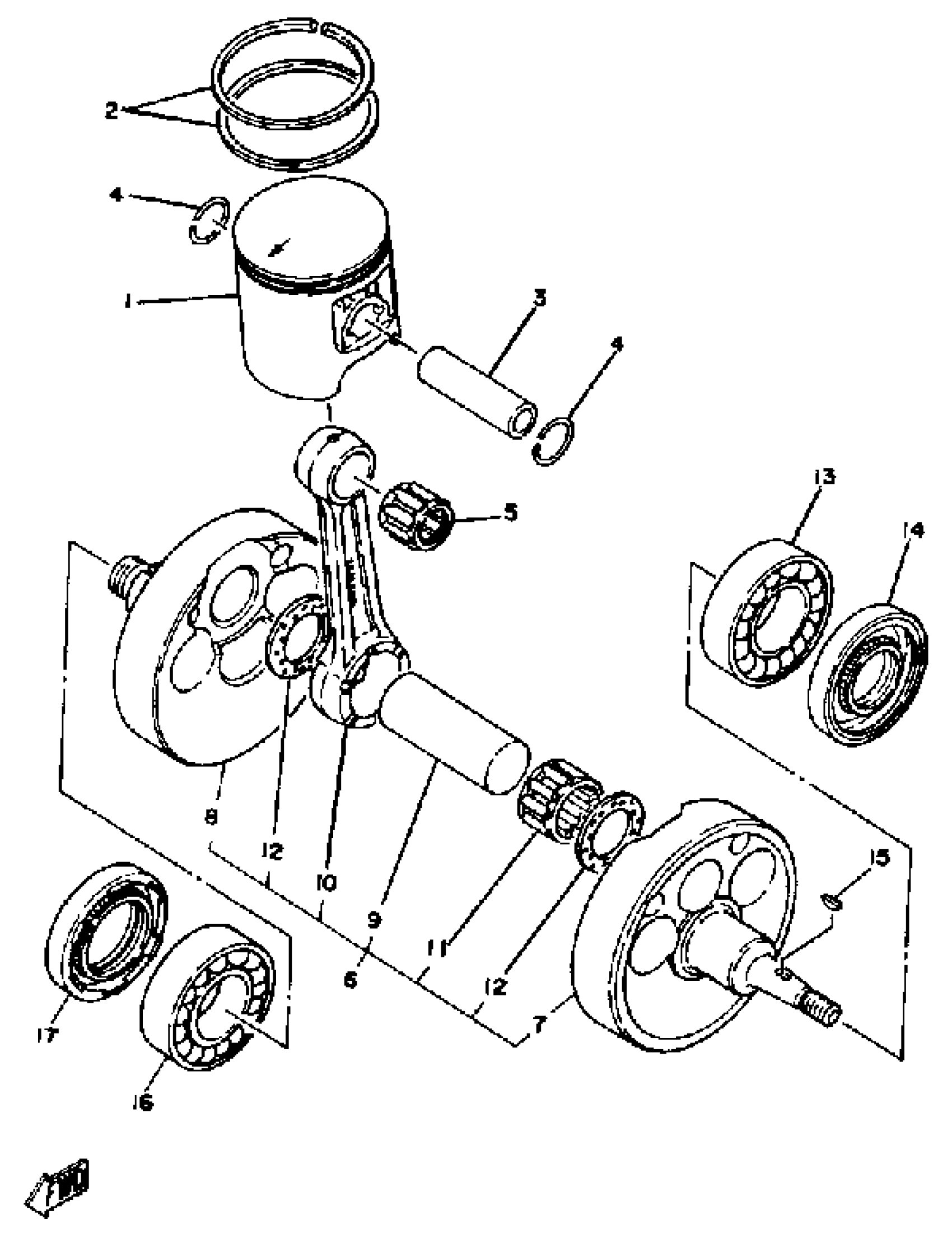

Yamaha IT465J (IT465) 1982 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

. PISTON STD

4V6-11631-00-94

Unavailable

1

PISTON 1 O/S 0.25

4V6-11635-00-00

Unavailable

1

PISTON 2 O/S 0.50

4V6-11636-00-00

Unavailable

1

PISTON 3 O/S 0.75

4V6-11637-00-00

Unavailable

1

PISTON 4 O/S 1.00

4V6-11638-00-00

Unavailable

2

. PISTON RINGSET STD

4V6-11610-00-00

Unavailable

2

PISTON RINGSET 1ST

4V6-11610-10-00

Unavailable

2

PISTON RINGSET 2ND

4V6-11610-20-00

Unavailable

2

PISTON RINGSET 3RD

4V6-11610-30-00

Unavailable

2

PISTON RINGSET 4TH

4V6-11610-40-00

Unavailable

3

PIN, PISTON

275-11633-00-00

$35.99

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSEMBLY

(4V6-11400-00-00)

Unavailable

7

. CRANK 1

4V6-11412-00-00

Unavailable

8

CRANK 2

(4V6-11422-00-00)

Unavailable

9

PIN, CRANK

3R8-11681-00-00

Unavailable

10

ROD, CONNECTING

3R5-11651-00-00

Unavailable

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

12

WASHER 275116850000

90209-25085-00

Unavailable

13

BRG,R-B 6306 72MM 351G KY

93306-30615-00

Unavailable

14

OIL SEAL(38V)

93103-30150-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BRG,R-B 6306 72MM 351G KY

93306-30615-00

Unavailable

17

OIL SEAL (434)

93103-40091-00

Unavailable
