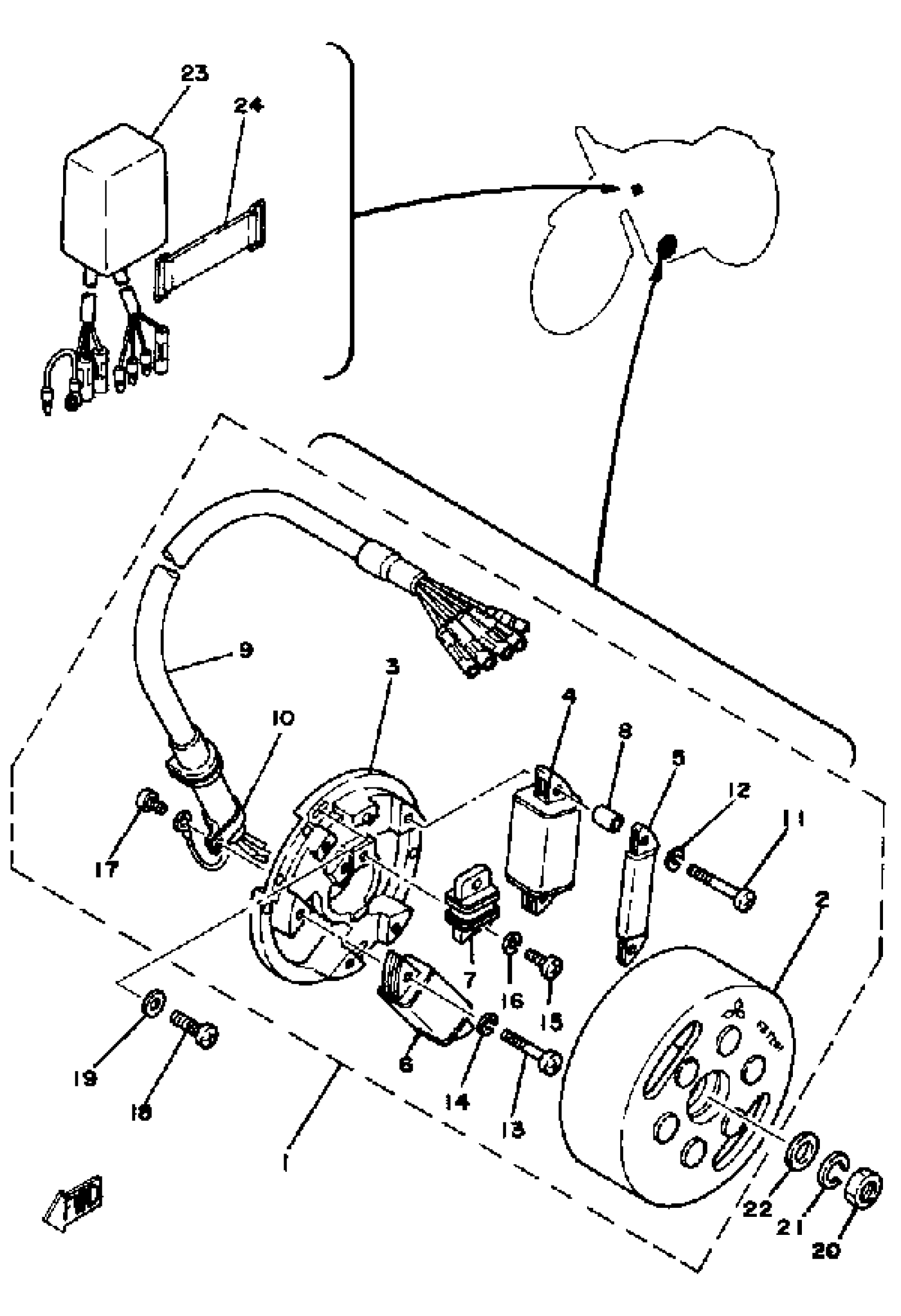

Yamaha IT465J (IT465) 1982 C - D - I MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

4V6-85500-20-00

Unavailable

2

. ROTOR ASSEMBLY

3R5-85550-20-00

Unavailable

3

. BASE, MAGNETO

3R5-85509-20-00

Unavailable

4

. COIL SOURCE 1

3R5-85511-20-00

Unavailable

5

. COIL SOURCE 2

3R5-85512-20-00

Unavailable

6

. COIL, LIGHTING 1

4V6-85513-20-00

Unavailable

7

. COIL, PULSER

4V6-85580-20-00

Unavailable

8

. SPACER

1W2-85516-20-00

Unavailable

9

LEAD WIRE ASSEMBLY

(4V6-85515-20-00)

Unavailable

10

CLAMP, LEAD

104-81328-20-00

$6.99

11

SCREW, PAN HEAD(MK5)

98507-04035-00

$8.49

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN

98507-04030-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

NUT(55K)

90170-12347-00

Unavailable

21

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

22

WASHER, PLATE (583)

90201-12593-00

Unavailable

23

CDI UNIT ASSEMBLY

3R5-85540-20-00

Unavailable

24

BAND, TOOL

21V-21376-00-00

Unavailable
