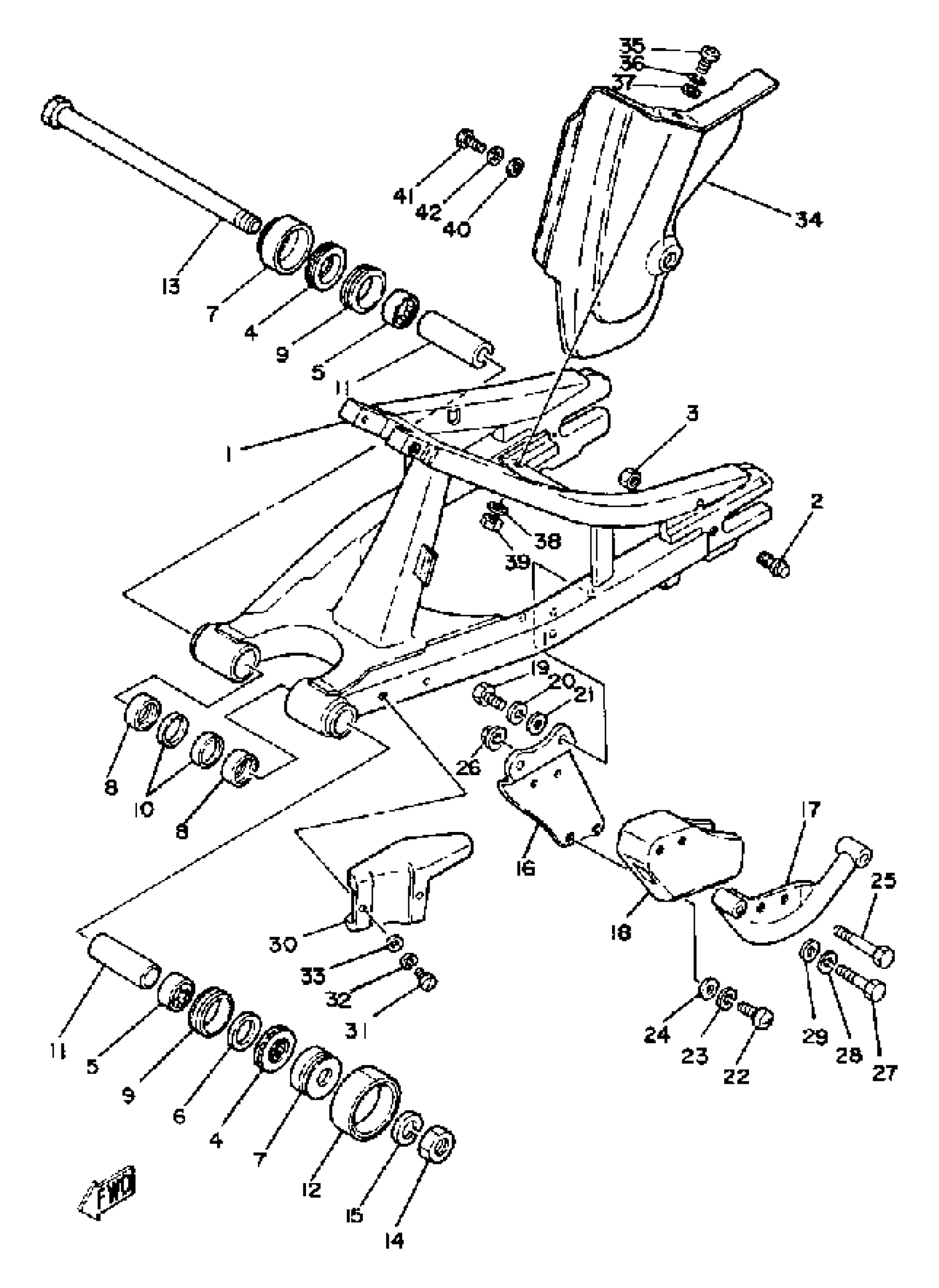

Yamaha IT465H (IT465) 1981 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(4V6-22110-00-35)

Unavailable

2

BOLT

90109-08599-00

Unavailable

3

NUT, FLANGE

95704-08500-00

$8.49

4

BEARING, THRUST (3R7)

93342-22208-00

$33.99

6

WASHER, PLATE

90201-22284-04

$2.82

7

COVER, THRUST2

3R4-22129-00-00

$32.99

8

BUSH, SPEC''L NYLON

90386-22097-00

Unavailable

9

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

10

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

11

BUSH, SOLID (3R4)

90380-16077-00

$42.99

12

SEAL, GUARD

431-22151-03-00

$27.99

13

SHAFT, PIVOT

5X6-22141-01-00

Unavailable

14

NUT

90170-16111-00

Unavailable

15

WASHER(JN5)

92907-16100-00

$14.99

16

ARM, TENSIONER

2X4-22179-00-00

Unavailable

17

GUARD, CHAIN

3R5-22153-00-00

Unavailable

18

SUPPORT, CHAIN

2X4-22199-00-00

Unavailable

19

BOLT(JA9)

90101-08691-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

SCREW PAN HEAD

98580-06020-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

Unavailable

25

BOLT, HEXAGON

97013-06050-00

Unavailable

26

NUT, NYLON

95707-06300-00

Unavailable

27

BOLT

97013-08035-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

PROTECTOR, CHAIN

3R4-22147-00-00

Unavailable

31

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

. WASHER, PLAIN

92990-05200-00

Unavailable

34

CASE, CHAIN

4V5-22311-00-00

Unavailable

35

SCREW PAN HEAD

98580-06020-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

Unavailable

38

WASHER, PLATE

90201-06380-00

Unavailable

39

NUT, SELF-LOCKING

95617-06100-00

Unavailable

40

WASHER, PLATE

90201-06380-00

Unavailable

41

BOLT, HEXAGON

97017-06020-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable
