1981 Yamaha IT465 (IT465H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha IT465 (IT465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

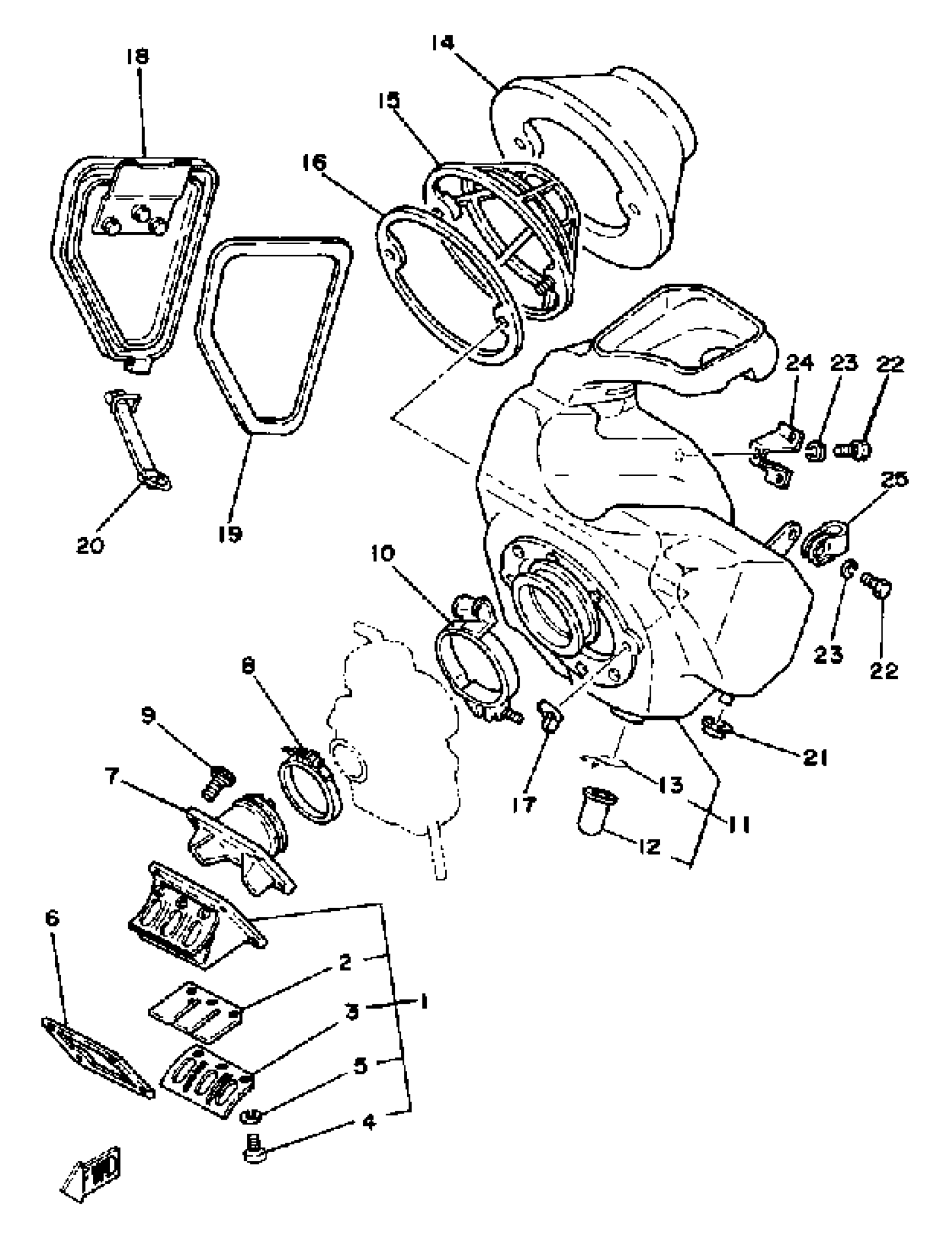

1981 Yamaha IT465 (IT465H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

3R4-13565-00-00

1

$171.89

In stock

8

CLAMP, HOSE

90460-51109-00

1
Out of stock

9

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

10

CLAMP, HOSE

90460-68231-00

1
Out of stock

11

AIR CLEANER CASE

(4V5-W1441-00-00)

1
Out of stock

12

SEAL

1W4-14457-00-00

1
Out of stock

13

CLIP

90467-20M15-00

1

$6.23

In stock

14

ELEMENT, AIR CLNR

3R4-W1442-01-00

1
Out of stock

15

GUIDE, ELEMENT

3R4-14458-00-00

1
Out of stock

16

HOLDER, GUIDE

(4V4-14459-00-00)

1
Out of stock

17

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

18

CAP, CLEANER CASE 1

4V5-14412-00-00

1
Out of stock

19

SEAL

39W-14452-00-00

1
Out of stock

20

BAND

4V5-14455-00-00

1
Out of stock

21

GROMMET

90480-13014-00

—

$6.85

In stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

PLATE, CLNR CS FTNG

4V4-14484-00-00

1
Out of stock

25

STAY 2

4V4-14499-00-00

1
Out of stock
