1980 Yamaha IT425 (IT425G) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

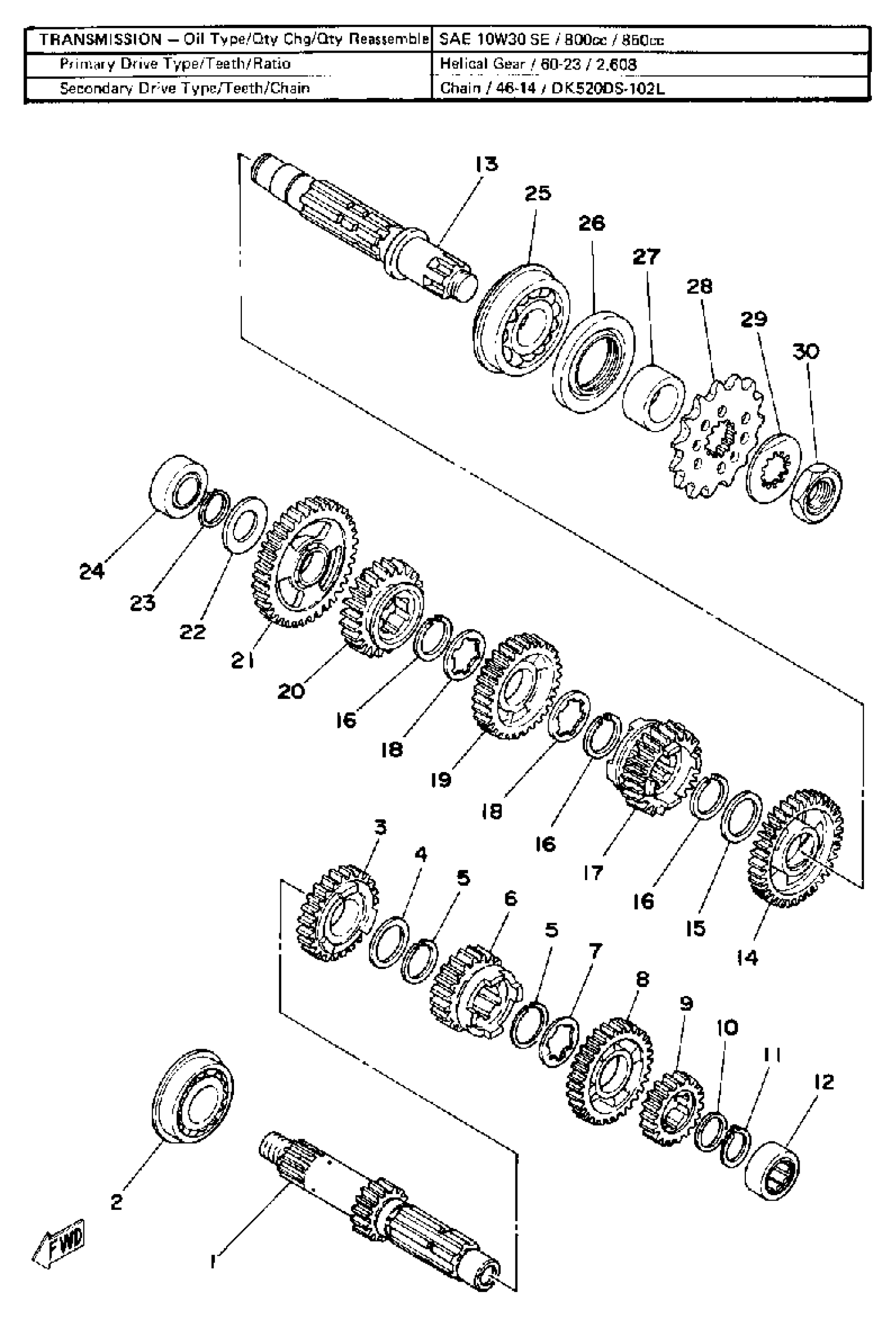

1980 Yamaha IT425 (IT425G) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(2X8-17411-00-00)

1
Out of stock

2

BEARING (93306-20515)

93306-20535-00

1
Out of stock

3

GEAR, 4TH PINION

2X8-17141-00-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

6

GEAR, 3RD PINION

3R8-17131-00-00

1
Out of stock

7

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

8

GEAR, 5TH PINION

(2X8-17151-01-00)

1
Out of stock

9

GEAR, 3RD PINION

(2X5-17131-01-00)

1
Out of stock

10

WASHER, PLATE

90201-20613-00

1
Out of stock

11

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

12

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

13

AXLE, DRIVE

2X5-17421-00-00

1
Out of stock

14

GEAR, 2ND WHEEL

2X5-17221-00-00

1
Out of stock

15

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

16

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

17

GEAR, 5TH WHEEL

(2X8-17251-01-00)

1
Out of stock

18

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

19

GEAR, 3RD WHEEL

2X5-17231-00-00

1
Out of stock

20

GEAR, 4TH WHEEL

(2X8-17241-00-00)

1
Out of stock

21

GEAR, 1ST WHEEL

(2X8-17211-00-00)

1
Out of stock

22

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

23

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

24

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

25

BRG,R-B 4205 52MM 185G KY

93304-20501-00

—

$90.57

In stock

26

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

27

COLLAR (2K7)

90387-25663-00

—

$25.15

In stock

28

—

$18.29

In stock

28

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

28

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

29

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

30

NUT (2K7)

90179-20255-00

—

$9.40

In stock
