1980 Yamaha IT425 (IT425G) Shift CAM - Fork Diagram

← All diagrams

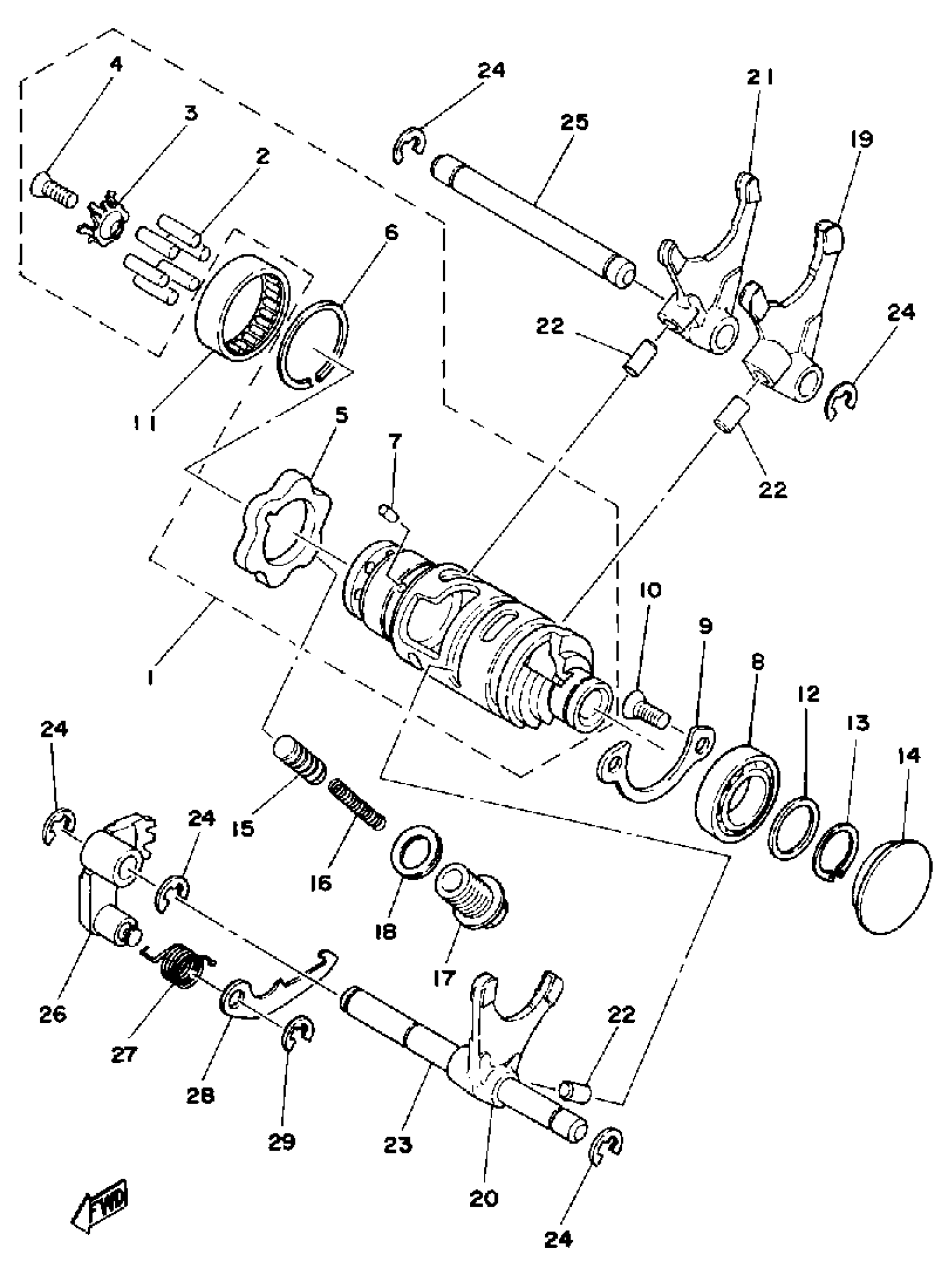

Find the part on the Shift CAM - Fork diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha IT425 (IT425G) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(2X5-18540-00-00)

1
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE

2K9-18561-00-00

1

$6.43

In stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PLATE, STOPPER

2K7-18141-00-00

1
Out of stock

6

CIRCLIP, OUTER (32V SPECIAL)

93440-32017-00

1
Out of stock

7

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

8

BEARING(2JN)

93306-90403-00

1

$38.65

In stock

9

PLATE, BEARING COVER

4XM-15383-00-00

1

$11.03

In stock

10

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

11

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

12

WASHER, PLATE

90201-20613-00

1
Out of stock

13

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

14

PLUG, SPEC''L SHAPE

(90338-32086-00)

1
Out of stock

15

STOPPER, CAM

353-18547-00-00

1
Out of stock

16

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

17

BOLT (1K8)

90109-14485-00

—
Out of stock

18

GASKET

214-11198-01-00

—

$2.66

In stock

19

FORK, SHIFT 1

2X5-18511-00-00

1
Out of stock

20

FORK, SHIFT 2

(3R8-18512-00-00)

1
Out of stock

21

FORK, SHIFT 3

(2X5-18513-00-00)

1
Out of stock

22

PIN, DOWEL (3R4)

93606-14154-00

—

$2.20

In stock

23

BAR, SHIF FRK GDE 1

(2K7-18531-00-00)

1
Out of stock

24

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

25

BAR, SHIF FRK GDE 2

2K7-18535-01-00

1
Out of stock

26

LEVER, SHIFT 2 (2K7-18122-00)

2K7-18122-01-00

1
Out of stock

27

SPRING, TORSION

(90508-10386-00)

1
Out of stock

28

LEVER, CHANGE 3

2K7-18151-00-00

—

$11.54

In stock

29

CIRCLIP

99080-07600-00

1

$2.89

In stock
