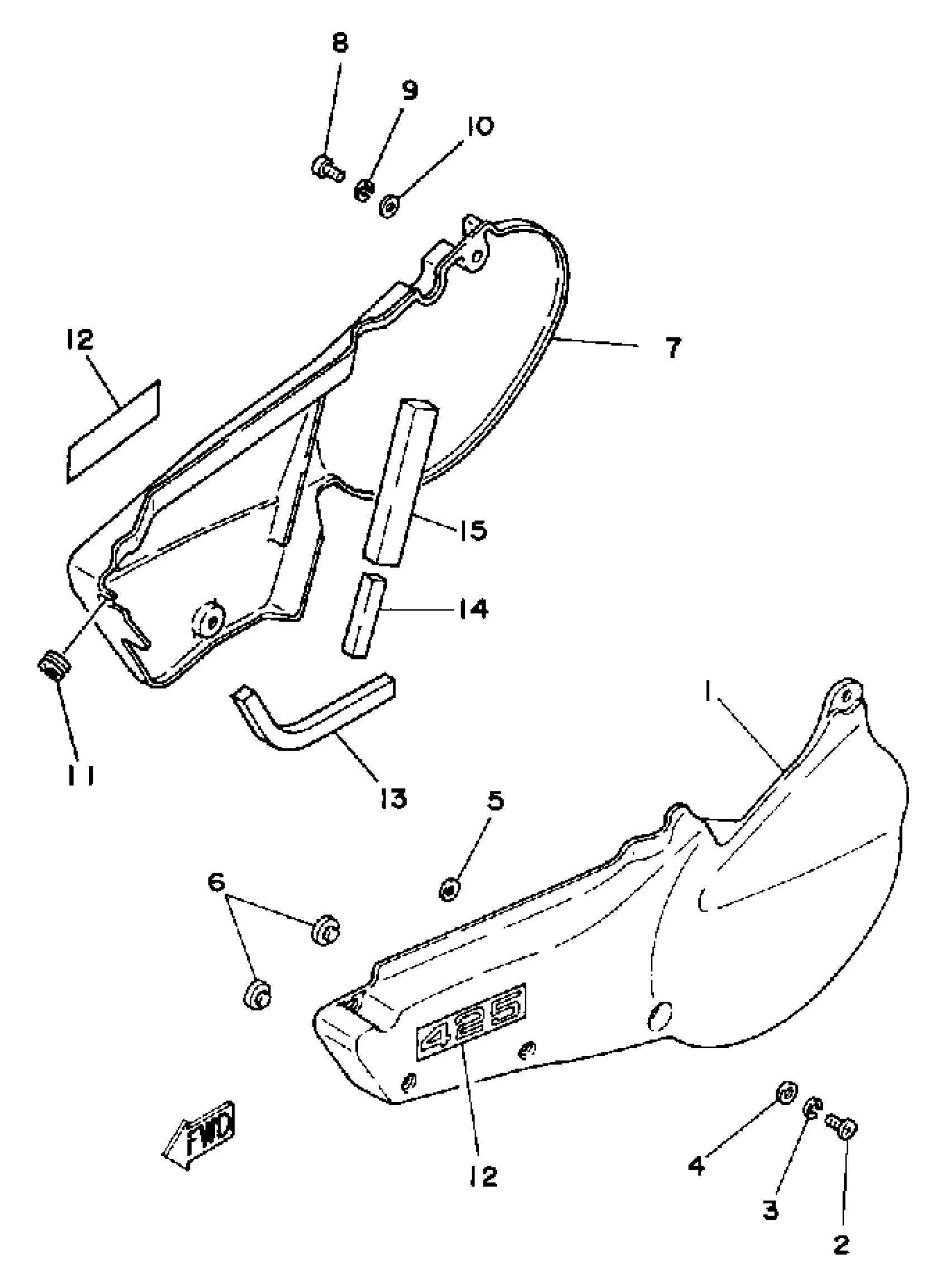

Yamaha IT425G (IT425) 1980 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

(3R8-21711-00-26)

Unavailable

2

SCREW, PAN

98507-06014-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

7

COVER, SIDE 2

(3R8-21721-00-26)

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

12

EMBLEM 6

(3R8-21786-00-00)

Unavailable

13

DAMPER (250G)

3R8-21746-00-00

Unavailable

14

DAMPER

(3R8-21747-00-00)

Unavailable

15

DAMPER, LOCATING 1

(3R8-21778-00-00)

Unavailable
