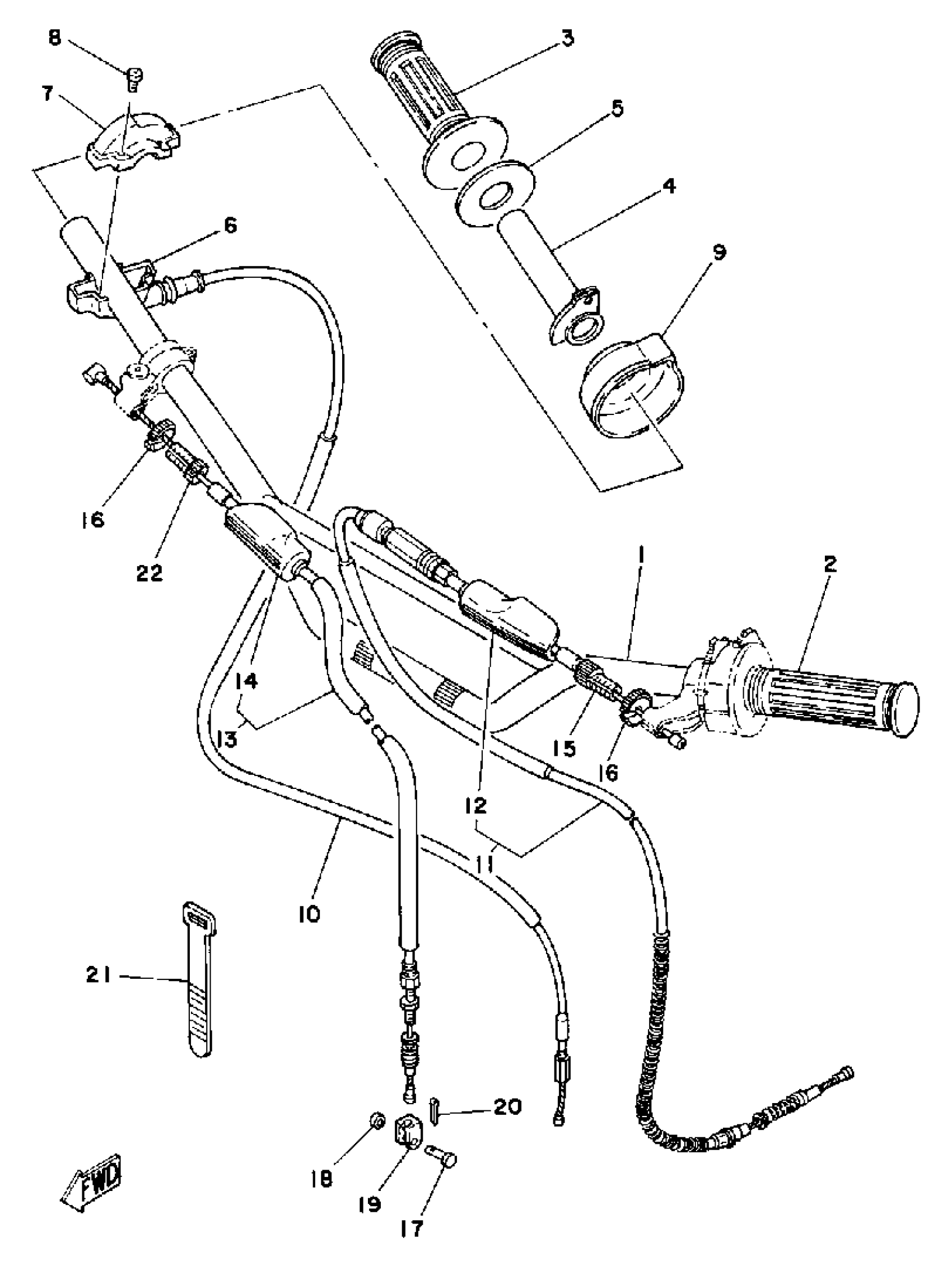

Yamaha IT425G (IT425) 1980 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLE

2A8-26111-00-00

$129.99

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

GRIP (R.H)

583-26242-00-00

$36.99

4

TUBE, THROTTLE GUIDE

22W-26243-00-00

$30.99

5

RING, LEAF

1W1-26249-00-00

Unavailable

6

CAP, GRIP UPPER

322-26281-00-98

Unavailable

7

CAP, GRIP UNDER

322-26282-00-00

$28.99

8

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

9

COVER, CAP GRIP

3R8-26287-00-00

Unavailable

10

CABLE, THROTTLE 1

1W6-26311-01-00

Unavailable

11

CABLE, CLUTCH (1150MM)

2K7-26335-00-00

Unavailable

12

COVER, LEVER

498-26372-00-00

Unavailable

13

CABLE, BRAKE

5Y0-26341-00-00

Unavailable

14

COVER, LEVER

498-26372-00-00

Unavailable

15

BOLT

90123-08002-00

$10.49

16

NUT

90179-08030-00

Unavailable

17

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

18

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

19

JOINT, WIRE

156-26347-00-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

BAND, SWITCH CORD

437-83936-11-00

Unavailable

22

BOLT

90123-08002-00

$10.49
