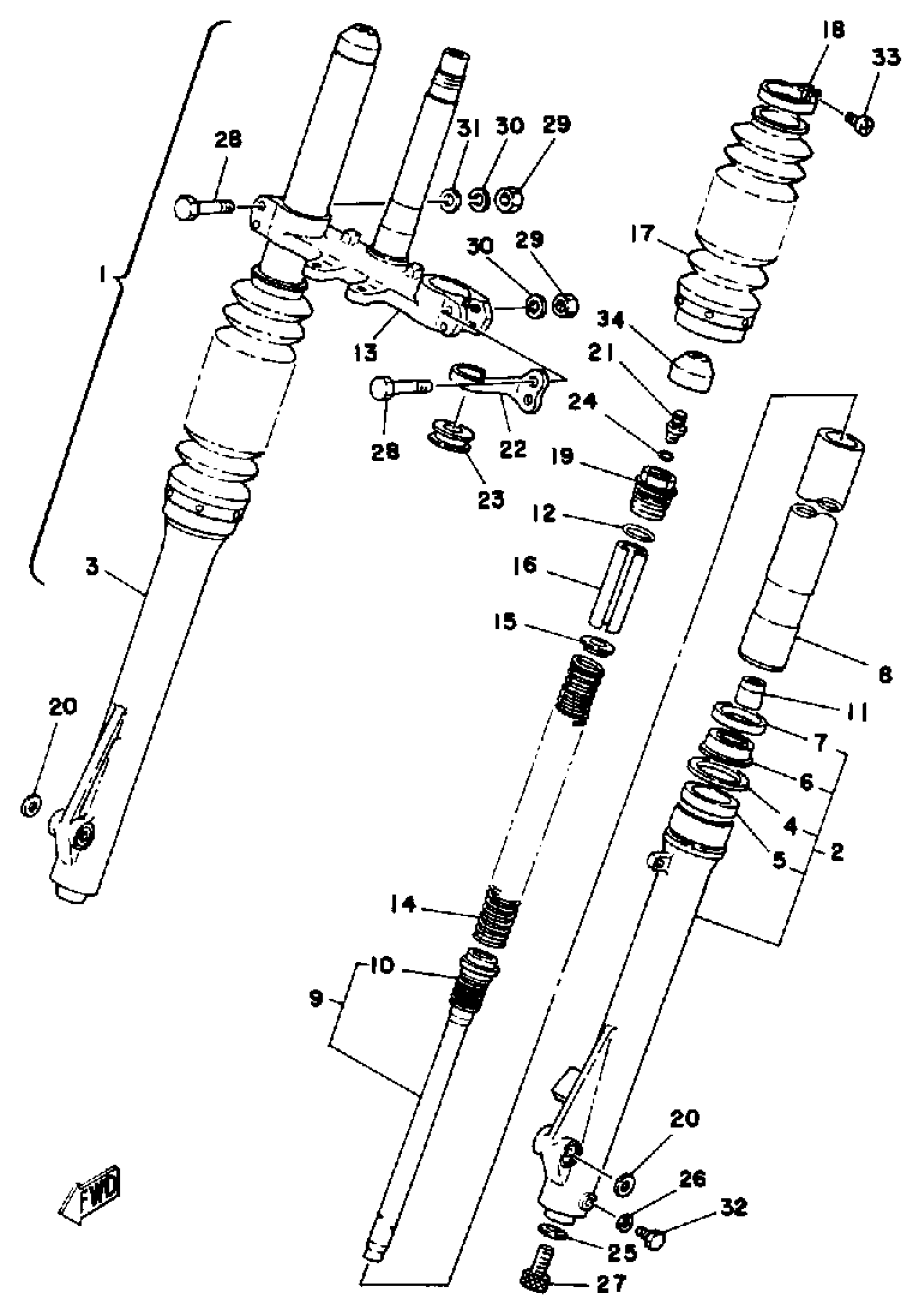

Yamaha IT425G (IT425) 1980 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(3R8-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(3R8-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(3R8-23136-L0-00)

Unavailable

4

.. CLIP, OIL SEAL

1W1-23156-L0-00

Unavailable

5

OIL SEAL

48Y-23145-00-00

$30.99

6

. SEAL, DUST

509-23144-L0-00

Unavailable

7

. COVER, DUST SEAL

3R8-23148-L0-00

Unavailable

8

INNER TUBE 1

(3R8-23110-L0-00)

Unavailable

9

CYLINDER, FRTFRK

(3R8-23170-L0-00)

Unavailable

10

SPRING, REBOUND

(1W1-23151-L0-00)

Unavailable

11

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

12

O-RING

1W1-23114-L0-00

$9.99

13

UNDER BRACKET

(2X7-23340-00-33)

Unavailable

14

SPRING, FRONT FORK

(3R8-23141-10-00)

Unavailable

14

SPRING, FRONT FORK

(3R8-23141-20-00)

Unavailable

14

SPRING, FRONT FORK

(3R8-23141-L1-00)

Unavailable

15

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

16

SPACER

(1W1-23118-L0-00)

Unavailable

17

. BOOT, FRONT FORK

2X3-23191-M0-00

Unavailable

18

BAND, BOOT

341-92090-60-00

Unavailable

19

. BOLT, CAP

1W1-23111-L0-00

Unavailable

20

.. CAP, FRONT FORK

1W1-23168-L0-00

Unavailable

21

. AIR VALVE

509-23190-L0-00

Unavailable

22

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

23

GUIDE, WIRE

1W1-23389-00-00

Unavailable

24

. O-RING

509-23163-L0-00

Unavailable

25

GASKET

509-23158-L0-00

Unavailable

26

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

28

BOLT (1E6)

90101-08340-00

Unavailable

29

NUT(6L2)

95333-08600-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

.. WASHER, PLATE

92990-08600-00

Unavailable

32

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

32

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

33

SCREW

509-23194-L0-00

Unavailable

34

. COVER, VALVE

1W1-23185-L0-00

Unavailable
