1979 Yamaha IT400 (IT400F) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

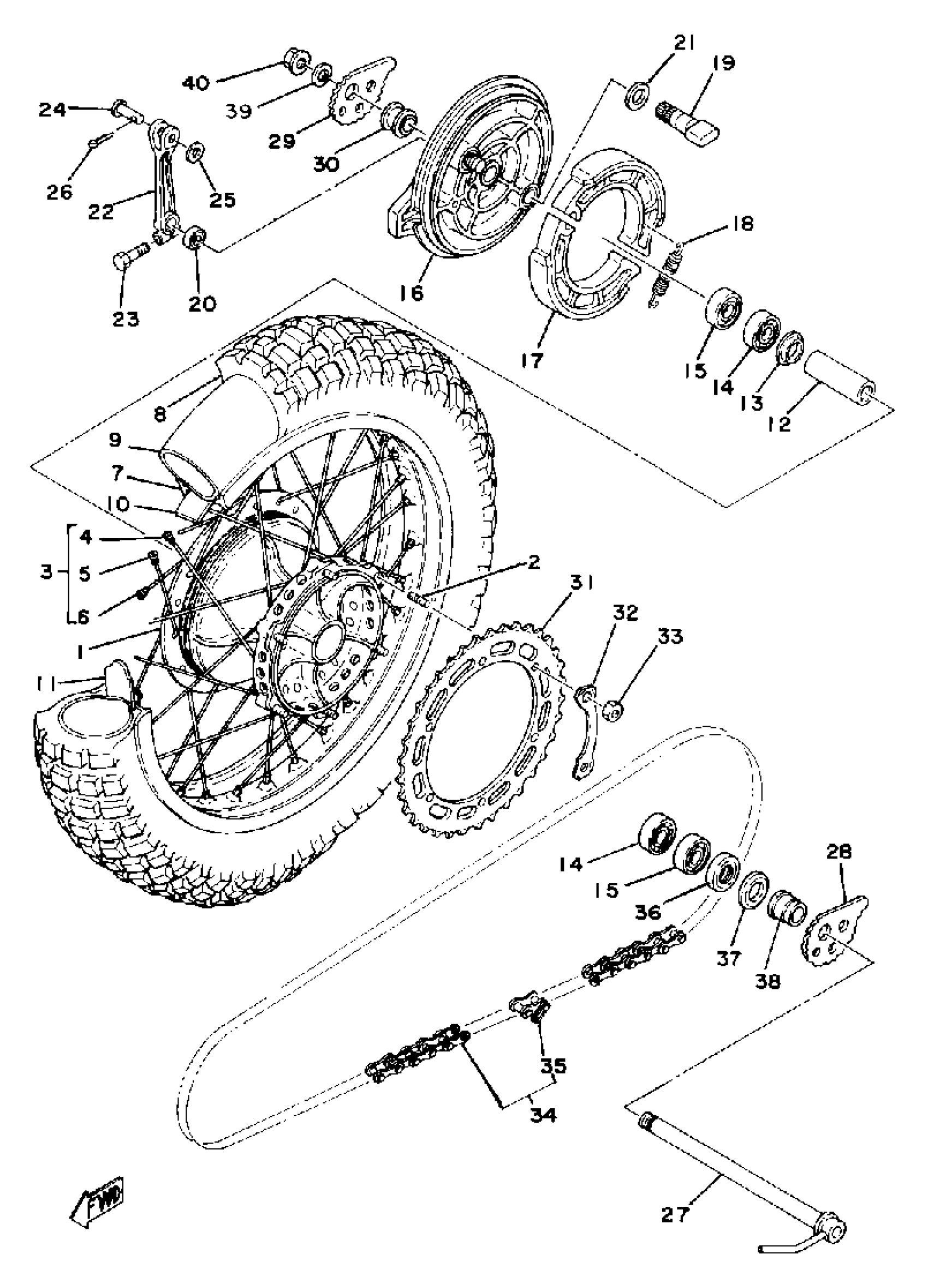

1979 Yamaha IT400 (IT400F) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(483-25311-13-98)

1
Out of stock

2

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

3

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

1
Out of stock

4

SPOKE SET, INNER 2

(431-25396-90-00)

1
Out of stock

5

SPOKE SET, INNER 1

(431-25391-90-00)

1
Out of stock

6

SPOKE SET, OUTER 1

(431-25392-90-00)

1
Out of stock

7

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

1
Out of stock

8

140/90-18 M2A TT

94114-186G1-00

1
Out of stock

9

TUBE

94245-18125-00

1
Out of stock

10

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

11

SPACER,BEAD

1T1-25394-01-00

1
Out of stock

12

SPACER, BEARING

483-25317-01-00

1
Out of stock

13

FLANGE, SPACER

483-25315-00-00

1
Out of stock

14

1

$31.64

In stock

15

1

$31.64

In stock

16

PLATE, BRAKE SHOE

(1W6-25321-00-98)

1
Out of stock

17

BRAKE SHOE KIT

3BH-W253E-00-00

1
Out of stock

18

—

$8.09

In stock

19

CAMSHAFT

1E6-25151-00-00

1
Out of stock

20

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

21

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

22

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

23

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

24

PIN, CLEVIS

1W2-27237-00-00

1
Out of stock

25

WASHER, PLATE (583)

90201-12631-00

—
Out of stock

26

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

27

AXLE, WHEEL

1W6-25381-00-00

1
Out of stock

28

PULLER, CHAIN 1

1M1-25388-01-00

1
Out of stock

29

PULLER, CHAIN 2

1M1-25389-01-00

1
Out of stock

30

COLLAR

(90387-17618-00)

1
Out of stock

31

SPROCKET, DRIVEN 44T

38W-25444-20-00

1
Out of stock

31

SPROCKET, DRIVN 48T

(431-25448-04-XX)

1
Out of stock

31

SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)

431-25450-04-XX

1
Out of stock

31

SPROCKET, DRIVN 52T

(431-25452-04-XX)

1
Out of stock

31

SPROCKET, DRIVN 54TSPROCKET WHEEL (54T)

431-25454-04-XX

1
Out of stock

31

SPROCKET, DRIVN 46T

583-25446-10-00

1
Out of stock

31

SPROCKET, DRIVN 48T (48T)

583-25448-10-00

1
Out of stock

32

WASHER

2XJ-25412-00-00

—
Out of stock

33

NUT (583)

90170-08193-00

—
Out of stock

34

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

1
Out of stock

35

JOINT, CHAIN

94681-68001-00

—
Out of stock

36

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

37

COVER, HUB DUST

431-25367-00-00

1
Out of stock

38

COLLAR

90387-17555-00

1
Out of stock

39

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

40

NUT, SPEC''L SHAPE

90179-16007-00

1
Out of stock
