STAND FOOTREST BRAKE PEDAL

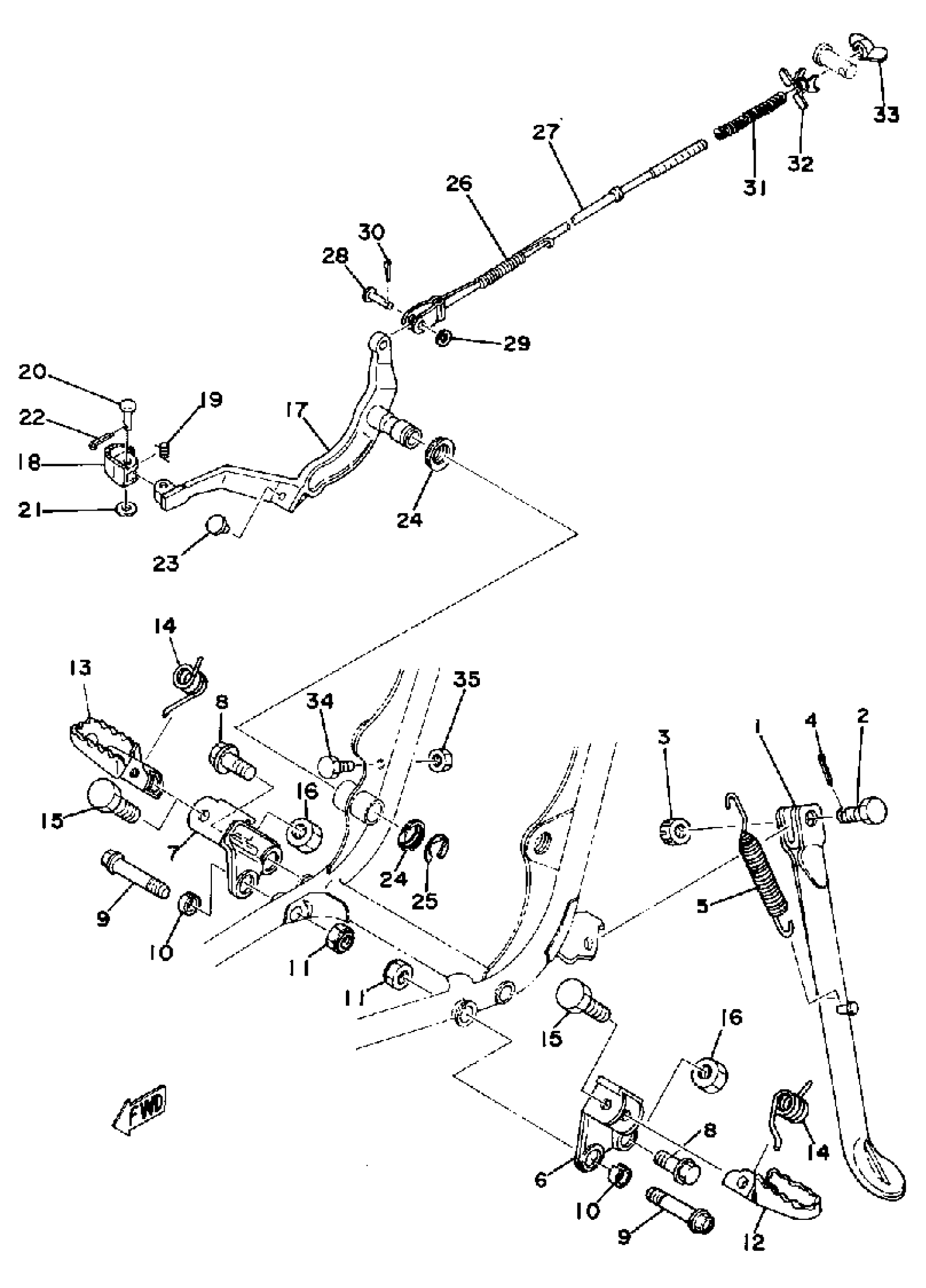

Yamaha IT400D (IT400D) 1977 STAND FOOTREST BRAKE PEDAL Diagram
#
1
NO LONGER AVAILABLE
1W6-27311-00-00
Unavailable
3
NUT, CASTLE
95307-10900-00
Unavailable
6
BRACKET, FOOTREST 1
(1W4-27412-00-00)
Unavailable
6
BRACKET, FOOTREST 1
(1W4-27412-01-00)
Unavailable
6
BRACKET, FOOTREST 1
(1W4-27412-02-00)
Unavailable
7
BRACKET, FOOTREST 2
(1W4-27422-00-00)
Unavailable
7
BRACKET, FOOTREST 2
(1W4-27422-01-00)
Unavailable
7
BRACKET, FOOTREST 2
(1W4-27422-02-00)
Unavailable
8
BOLT, WASHER BASED
90105-12096-00
Unavailable
10
COLLAR
90387-10661-00
Unavailable
12
FOOTREST 1
1W4-27411-00-00
Unavailable
13
FOOTREST 2
1W4-27421-00-00
Unavailable
14
SPRING, TORSION (214-27426-00)
90508-20023-00
Unavailable
15
BOLT
90101-08371-00
Unavailable
15
BOLT (2W6)
90101-08428-00
Unavailable
16
NUT, U
95617-08100-00
Unavailable
17
PEDAL, BRAKE
1W6-27211-01-90
Unavailable
18
PEDAL, BRAKE
55V-27242-00-00
Unavailable
19
SPRING, TORSION (1W2)
90508-14352-00
Unavailable
20
PIN, COTTER (1W2)
91701-06022-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
GROMMET
90480-15215-00
Unavailable
24
COVER, DUST
498-27235-00-00
Unavailable
25
CIRCLIP, E-TYPE
99001-15600-00
Unavailable
26
SPRING, TENSION
90506-20128-00
Unavailable
27
ROD, BRAKE
483-27231-00-00
Unavailable
28
PIN, CLEVIS (24X)
90240-06103-00
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
31
SPRING, (180-27236-00)
90501-10245-00
Unavailable
32
SEAT, SPRING
1W2-27239-00-00
Unavailable
33
NUT (25K)
90179-06411-00
Unavailable
34
BOLT, HEXAGON
97017-06020-00
Unavailable
35
NUT(650)
95380-06700-00
Unavailable
