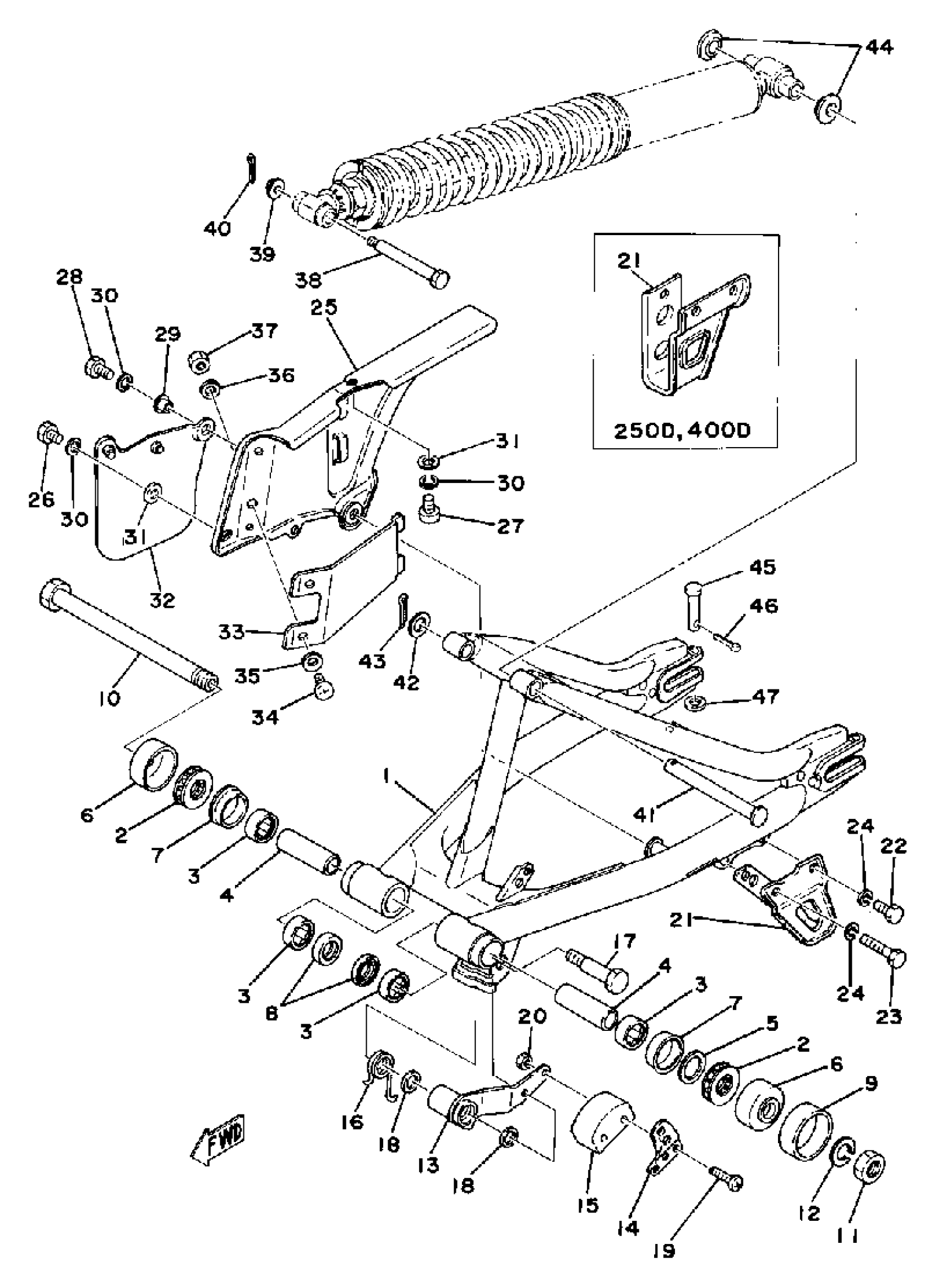

Yamaha IT400D (IT400D) 1977 REAR ARM CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(1W6-22110-00-33)

Unavailable

2

BEARING, THRUST

93342-22205-00

$70.99

3

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

$47.99

4

BUSH, SOLID

90380-16056-00

Unavailable

5

WASHER, PLATE

90201-22284-04

$2.82

6

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

9

SEAL, GUARD

431-22151-03-00

$27.99

10

SHAFT, PIVOT

1W4-22141-00-00

Unavailable

11

NUT

90170-16111-00

Unavailable

12

WASHER(JN5)

92907-16100-00

$14.99

13

ARM, TENSIONER

(1W6-22179-00-00)

Unavailable

14

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

14

PIN,CLEVIS

90240-12059-00

Unavailable

15

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

16

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

17

BOLT (1J4)

90109-10483-00

Unavailable

18

OIL SEAL (2K8)

93109-14021-00

Unavailable

19

SCREW, PAN

98507-05035-00

Unavailable

20

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

21

GUARD, CHAIN

2W6-22153-00-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

CASE, CHAIN

(1W6-22311-00-00)

Unavailable

26

BOLT(8CP)

97017-06014-00

Unavailable

27

SCREW, PAN

98507-06014-00

Unavailable

28

BOLT, HEXAGON

97017-06020-00

Unavailable

29

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

RUBBER CHAIN CASE

(99999-01012-00)

Unavailable

33

GUARD, CHAIN

(1W6-22318-00-00)

Unavailable

34

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

35

WASHER, PLAIN (646)

92990-05600-00

Unavailable

36

. WASHER, PLAIN

92990-05200-00

Unavailable

37

NUT, U

95617-05100-00

Unavailable

38

BOLT

90109-08480-00

Unavailable

39

NUT, SPEC''L SHAPE

90179-08243-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

42

WASHER, PLATE(663)

92990-12600-00

Unavailable

43

PIN, COTTER

91490-30030-00

Unavailable

44

COVER, THRUST

1W1-22128-00-00

Unavailable

45

PIN, CLEVIS (565)

91701-08042-00

Unavailable

46

PIN, COTTER

91490-25020-00

Unavailable

47

.. WASHER, PLATE

92990-08600-00

Unavailable
