1977 Yamaha IT400D (IT400D) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

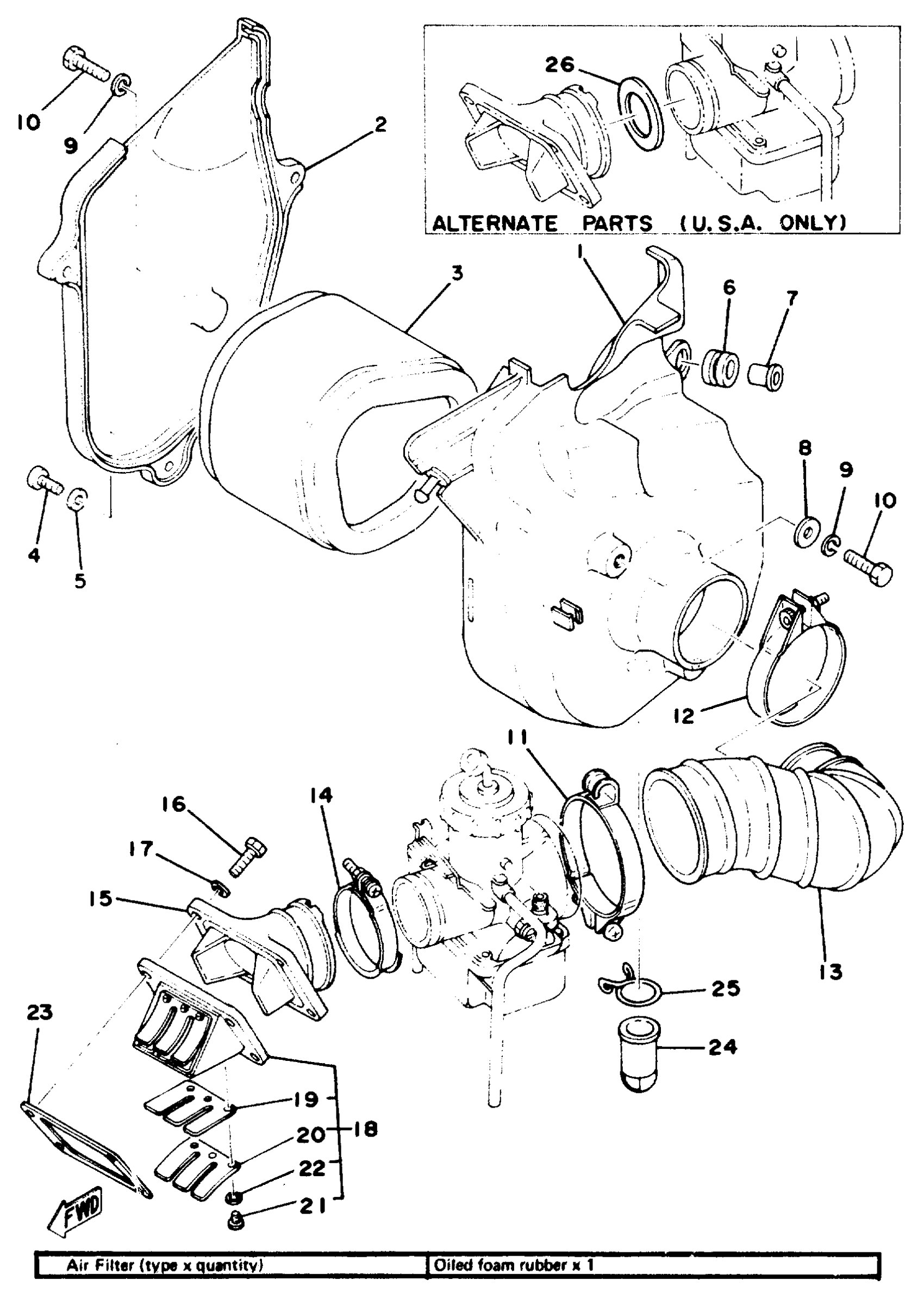

1977 Yamaha IT400D (IT400D) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

1W4-14411-00-00

1
Out of stock

2

CAP, CLEANER CASE 1

(1W6-14412-00-00)

1
Out of stock

3

ELEMENT, AIR CLNR.

1W4-14451-00-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

8

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

CLAMP, HOSE

90460-68231-00

1
Out of stock

12

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

13

JOINT, AIR CLNR 1

(1W3-14453-00-00)

1
Out of stock

13

JOINT, AIR CLNR 1

1W4-14453-00-00

1
Out of stock

14

CLAMP, HOSE

90460-51109-00

1
Out of stock

15

JOINT, CARBURETOR

1W3-13565-00-00

1
Out of stock

15

JOINT, CARBURETOR

1W4-13565-00-00

1
Out of stock

16

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

REED VALVE ASSEMBLY

(431-13610-01-00)

1
Out of stock

19

. REED, VALVE

363-13613-00-00

1
Out of stock

20

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

21

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

22

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

23

GASKET, MANIFOLD

8Y7-13556-01-00

—

$6.92

In stock

24

SEAL

1W4-14457-00-00

1
Out of stock

25

CLIP

90467-20M15-00

1

$6.23

In stock

26

PLATE

(1W6-14477-00-00)

1
Out of stock
