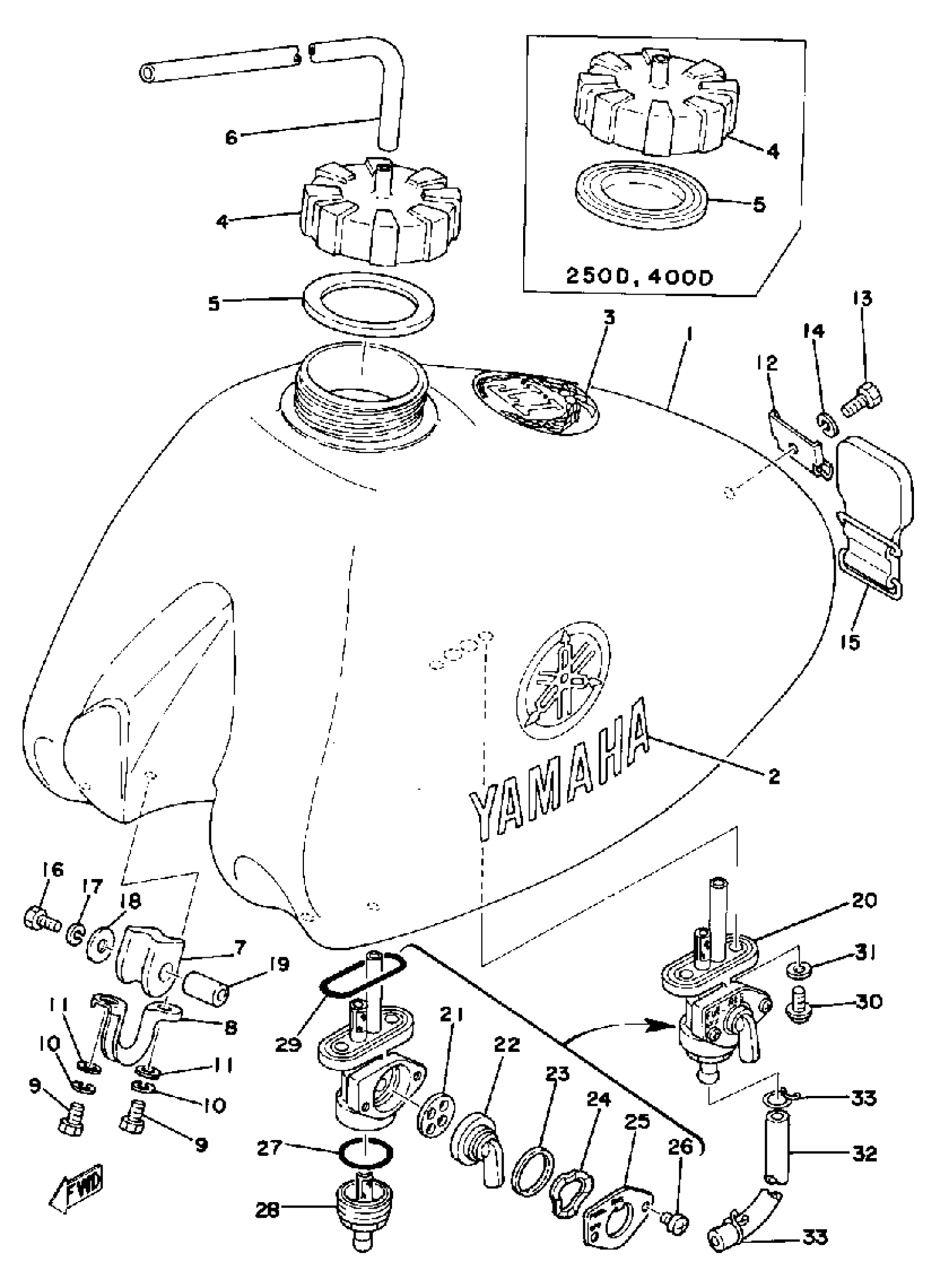

Find the part on the Fuel Tank diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT400D (IT400D) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

1W6-24110-00-00

1
Out of stock

2

NO LONGER AVAILABLE

1W2-24161-00-00

1
Out of stock

2

EMBLEM 1

(1W2-24161-01-00)

1
Out of stock

3

EMBLEM 2

(1W2-24162-00-00)

1
Out of stock

4

. BODY, CAP

1K7-24611-01-00

1
Out of stock

4

GASKET, CAP

1K7-24612-01-00

1
Out of stock

4

BODY FUEL TANK CAP (1K7-24611-00)

99999-00973-00

1
Out of stock

5

GASKET, CAP

1K7-24612-01-00

1
Out of stock

5

GASKET,CAP

3R9-24612-00-00

1
Out of stock

6

HOSE (L545)

90445-09361-00

1
Out of stock

7

DAMPER, TANK LOCATING 2

1W1-24182-01-00

1
Out of stock

8

HOLDER, DAMPER

1W1-24144-01-00

1
Out of stock

9

BOLT (661)

97013-06012-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

BRACKET, FUEL TNK 2

1W1-24192-00-00

1
Out of stock

13

BOLT (661)

97013-06012-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

BAND, TNK FITTING 1

1W1-24173-00-00

1
Out of stock

16

BOLT(3RV)

97014-06035-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

WASHER, PLATE

90201-06747-00

—
Out of stock

19

COLLAR, LEVER 1

36Y-83913-01-00

—
Out of stock

20

FUEL COCK ASSY

498-24500-01-00

—
Out of stock

21

VALVE, COCK

498-24523-00-00

—
Out of stock

22

. LEVER, COCK

498-24524-01-00

1
Out of stock

23

GASKET

(498-24528-00-00)

1
Out of stock

24

WASHER WAVE 137245180000

90206-18025-00

—
Out of stock

25

. PLATE, LEVER FITTING

498-24525-00-00

1
Out of stock

26

SCREW, LEVER FITTING

214-24535-00-00

—
Out of stock

27

GASKET, FILTER

498-24522-00-00

—
Out of stock

28

CUP, FILTER

(498-24521-00-00)

1
Out of stock

29

GASKET, BODY

214-24512-00-00

—
Out of stock

30

SCREW 256241430000

90149-06011-00

—
Out of stock

31

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock

32

HOSE (L370)

90445-112E1-00

—
Out of stock

33

CLIP

90467-100A1-00

—
Out of stock
