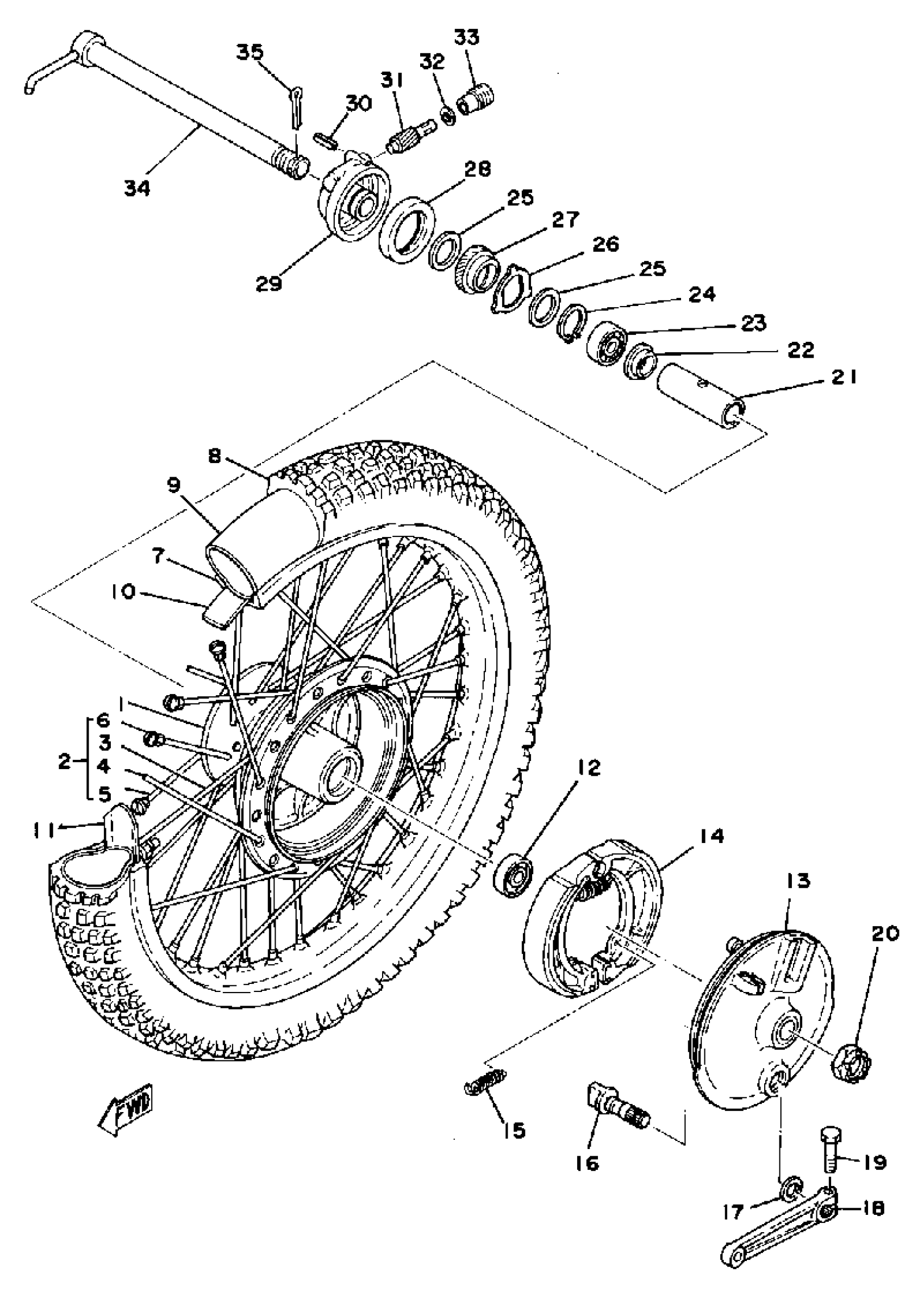

Yamaha IT400D (IT400D) 1977 FRONT WHEEL Diagram

#

Description

Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

3

SPOKE SET, INNER 1

(1K7-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(1K7-25197-90-00)

Unavailable

5

SPOKE SET, INNER 2

(1K7-25179-90-00)

Unavailable

6

SPOKE SET, OUTER 2

(1K7-25189-90-00)

Unavailable

7

RIM 1.60X21

94416-21326-00

Unavailable

8

300X21 BS M7

(94130-21226-00)

Unavailable

8

300X21 IRC MX

(94130-21376-00)

Unavailable

8

300X21 IRC MX

(94130-21376-00)

Unavailable

9

TUBE, FRONT (2A6)

94227-21123-00

$47.99

9

TUBE

94230-21126-00

Unavailable

10

BAND, RIM

(94327-21024-00)

Unavailable

10

BAND, RIM

(94330-21088-00)

Unavailable

11

SPACER, BEAD

1T1-25194-00-00

Unavailable

12

BEARING(3DL)

93306-20226-00

Unavailable

13

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

14

BRAKE SHOE KIT

322-W253A-10-00

Unavailable

15

SPRING (5T9)

90506-17328-00

Unavailable

16

CAMSHAFT

23X-25151-00-00

Unavailable

17

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

18

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

20

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

21

SPACER

90560-15116-00

Unavailable

22

FLANGE, SPACER

146-25116-00-00

Unavailable

23

BEARING

93306-20205-00

Unavailable

24

CIRCLIP(1EY)

99009-22400-00

Unavailable

25

WASHER PLATE 214251470000

90201-22283-00

Unavailable

26

CLUTCH, METER

1K7-25149-00-00

Unavailable

27

GEAR, DRIVE

1W2-25135-00-00

Unavailable

28

OIL SEAL(3BC)

93106-40027-00

Unavailable

29

GEAR UNIT ASSY

3XP-25190-00-00

Unavailable

30

PIN, SPRING (V60)

91609-20014-00

Unavailable

31

GEAR, METER

1W2-25138-00-00

Unavailable

32

SHIM, ROD

102-18416-00-00

Unavailable

33

BUSH

306-25136-00-00

Unavailable

34

AXLE, WHEEL

1W2-25181-02-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable
