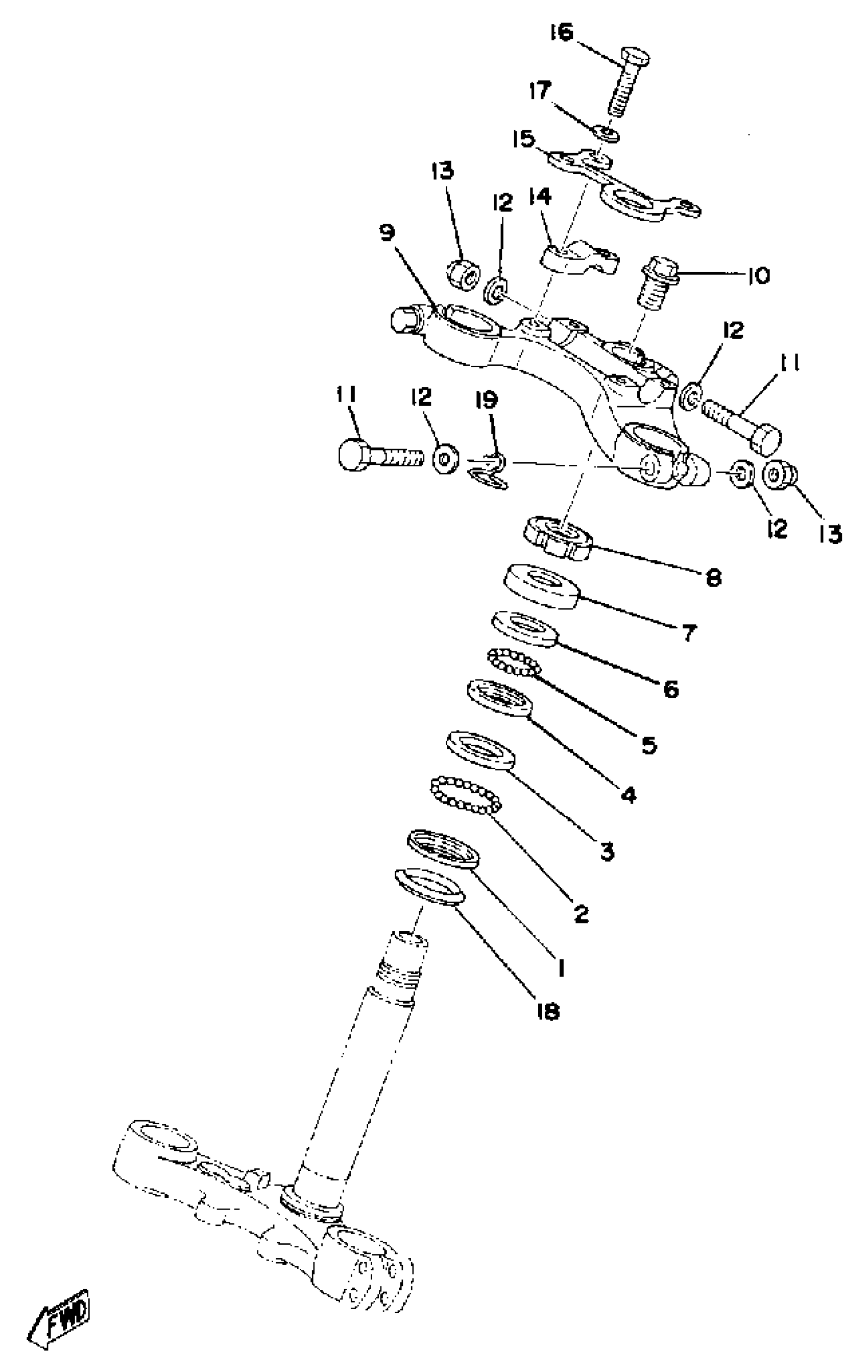

Yamaha IT400C (IT400) 1976 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

COVER, BALL RACE 2

(583-23416-00-00)

Unavailable

8

NUT

90179-25004-00

$24.99

9

CROWN, HANDLE

(583-23435-01-98)

Unavailable

10

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

11

BOLT, HEXAGON

97013-08055-00

$2.55

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

NUT, U

95617-08100-00

$9.49

14

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

15

GUIDE, CABLE

(509-23389-01-00)

Unavailable

16

BOLT

97013-08035-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

SEAL, DUST

164-23462-00-00

Unavailable

19

HOLDER, CABLE 2

(525-23319-00-00)

Unavailable
