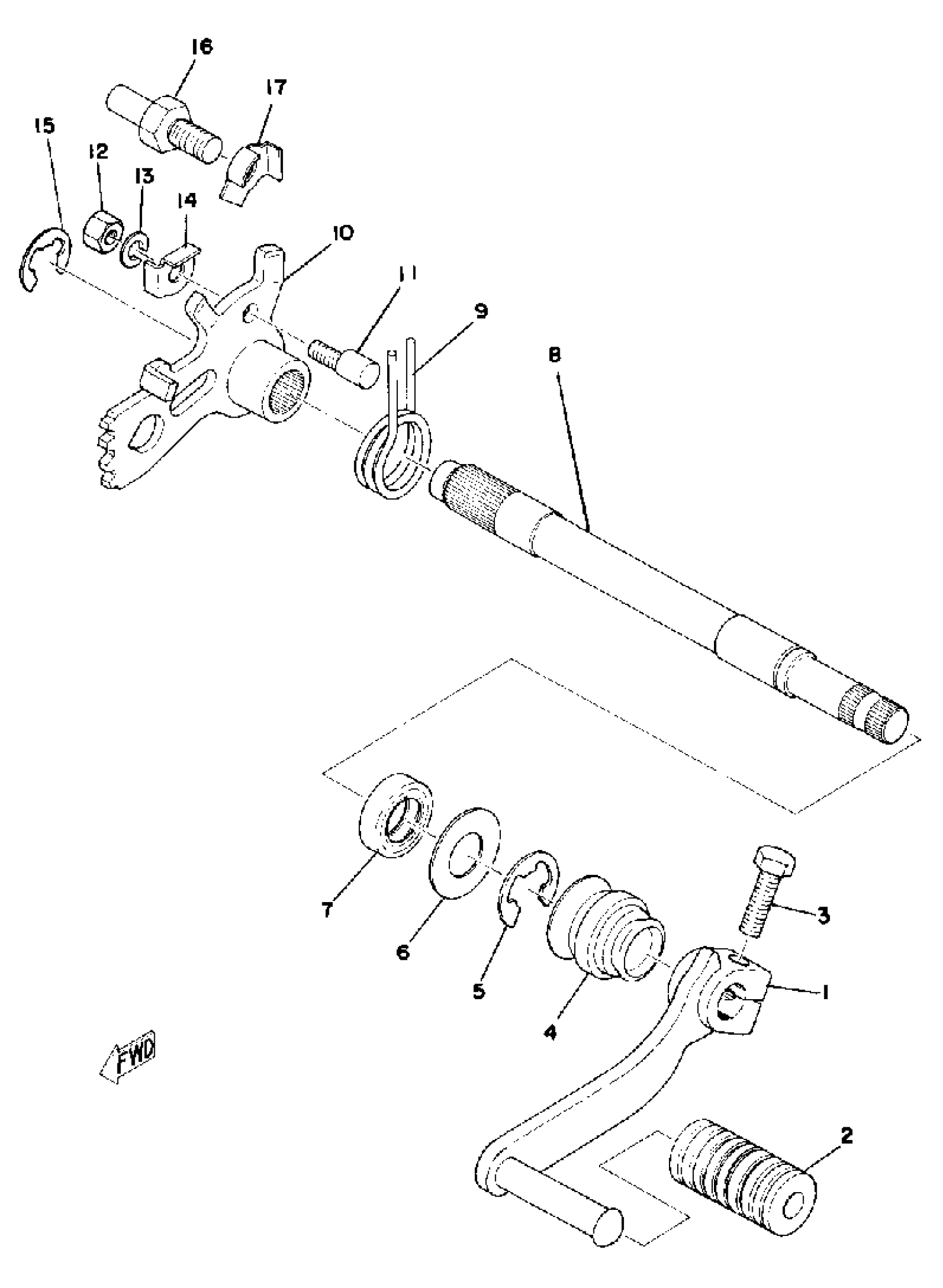

Yamaha IT400C (IT400) 1976 SHIFTER 2 Diagram

#

Description
Price

1

PEDAL, SHIFT

510-18111-00-33

Unavailable

2

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

BOOT

214-18131-00-00

Unavailable

5

. CIRCLIP

99001-12600-00

Unavailable

6

WASHER PLATE 248181370000

90201-14220-00

$8.49

7

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

8

SHAFT, CHANGE

363-18125-00-00

Unavailable

9

SPRING, TORSION

(90508-32265-00)

Unavailable

10

LEVER, CHANGE 1

434-18121-00-00

Unavailable

11

SCREW 214181860000

90149-06017-00

$7.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, LOCK

90215-06016-00

$3.50

15

CIRCLIP

99006-10600-00

$9.49

16

STOPPER, SCREW

278-18127-01-00

Unavailable

17

WASHER

90215-08015-00

Unavailable
