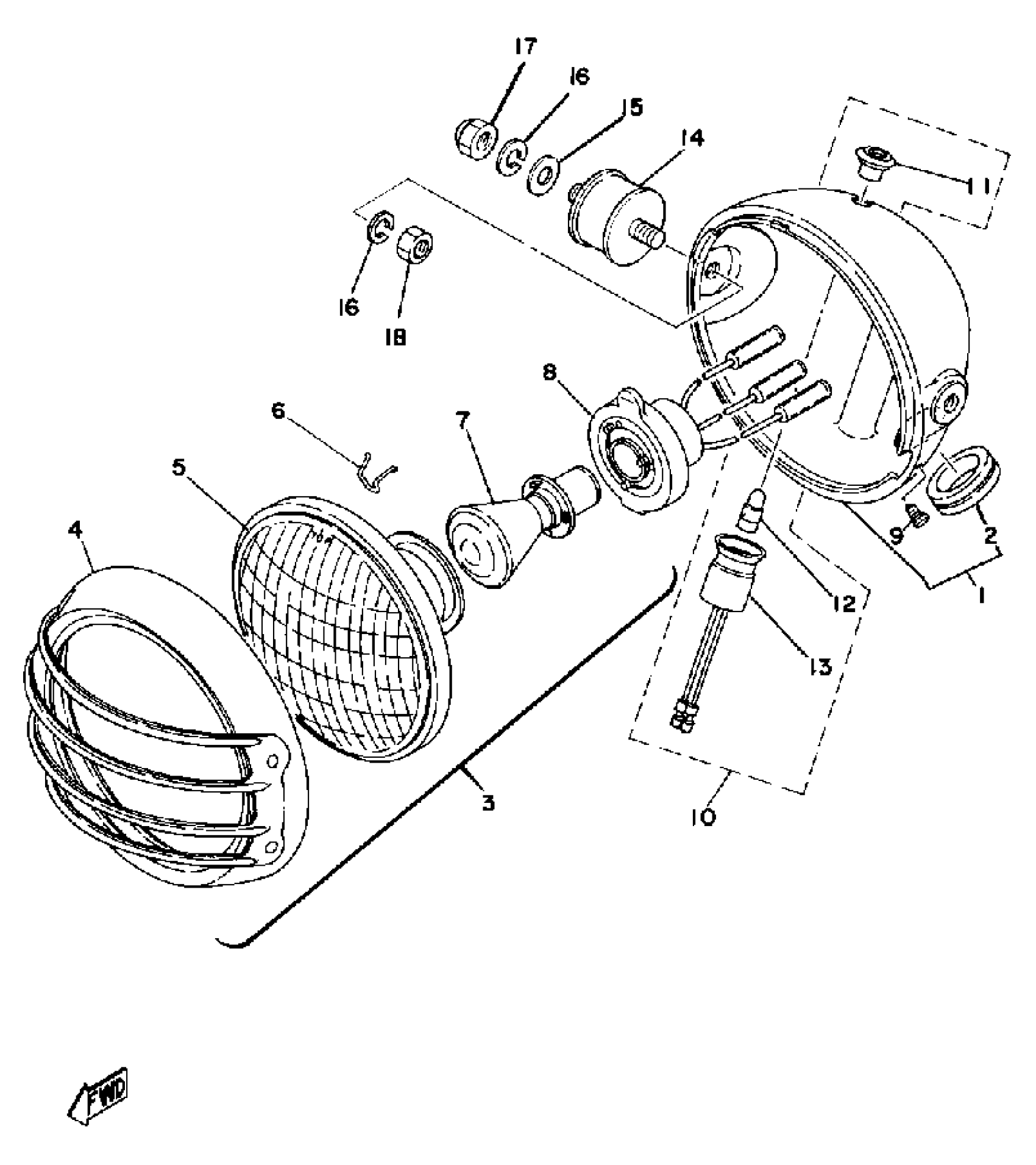

Yamaha IT400C (IT400) 1976 HEAD LAMP Diagram

#

Description
Price

1

BODY ASSEMBLY, HEADLIGHT

539-84130-00-36

Unavailable

2

GROMMET (L)

150-84153-00-00

$19.99

4

. RIM, HEADLIGHT

493-84115-60-00

Unavailable

5

. LENS ASSEMBLY

434-84120-60-00

Unavailable

6

SPRING, REFLECTOR SET

195-84324-00-00

$6.99

7

BULB,HEAD LAMP(6V35/35W)

214-84114-60-00

$23.99

8

SOCKET

214-84112-61-00

Unavailable

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

10

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

11

BODY, PILOT LIGHT

256-84357-61-00

Unavailable

12

BULB,METER(6V1.5W)

104-83517-10-00

$8.99

13

. SOCKET CORD ASSEMBLY 2

214-84150-61-00

Unavailable

14

BOLT, SPECIAL

(1K7-84137-60-00)

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

NUT, CROWN

95303-08800-00

Unavailable

18

NUT(6L2)

95333-08600-00

Unavailable
