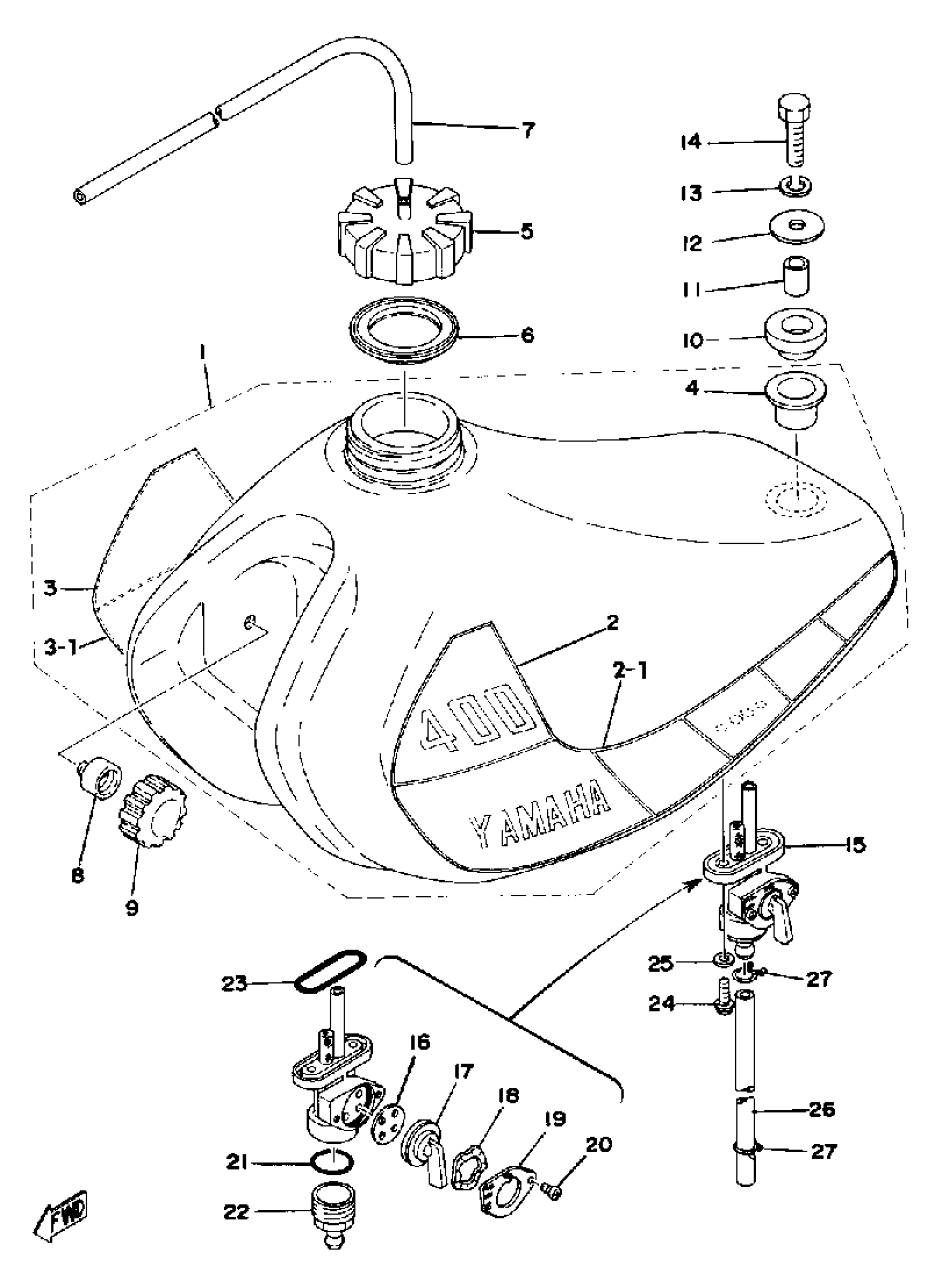

Yamaha IT400C (IT400) 1976 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(1K7-24110-00-01)

Unavailable

1

. GRAPHIC, FUEL TNK 3

1K7-24246-01-00

Unavailable

1

GRAPHIC, FUEL TNK 4

(1K7-24247-01-00)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1K7-24244-01-00)

Unavailable

3

. GRAPHIC, FUEL TNK 2

1K7-24245-01-00

Unavailable

4

COLLAR

(90387-23539-00)

Unavailable

5

. BODY, CAP

1K7-24611-01-00

Unavailable

5

GASKET,CAP

3R9-24612-00-00

Unavailable

5

BODY FUEL TANK CAP (1K7-24611-00)

99999-00973-00

Unavailable

6

GASKET, CAP

1K7-24612-01-00

Unavailable

7

HOSE (L1500)

90445-090F6-00

$31.99

8

HOLDER, DAMPER

(1K7-24144-00-00)

Unavailable

9

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

10

GROMMET

90480-23192-00

Unavailable

11

COLLAR

(90387-10538-00)

Unavailable

12

WASHER (737 STEERING)

90201-10146-00

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

14

BOLT(N02)

97070-10035-00

Unavailable

15

FUEL COCK ASSY

498-24500-01-00

Unavailable

16

VALVE, COCK

498-24523-00-00

Unavailable

17

. LEVER, COCK

498-24524-01-00

Unavailable

18

WASHER WAVE 137245180000

90206-18025-00

Unavailable

19

. PLATE, LEVER FITTING

498-24525-00-00

Unavailable

20

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

21

GASKET, FILTER

498-24522-00-00

Unavailable

22

CUP, FILTER

(498-24521-00-00)

Unavailable

23

GASKET, BODY

214-24512-00-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

HOSE

90445-11149-00

Unavailable

27

CLIP

90467-100A1-00

Unavailable
