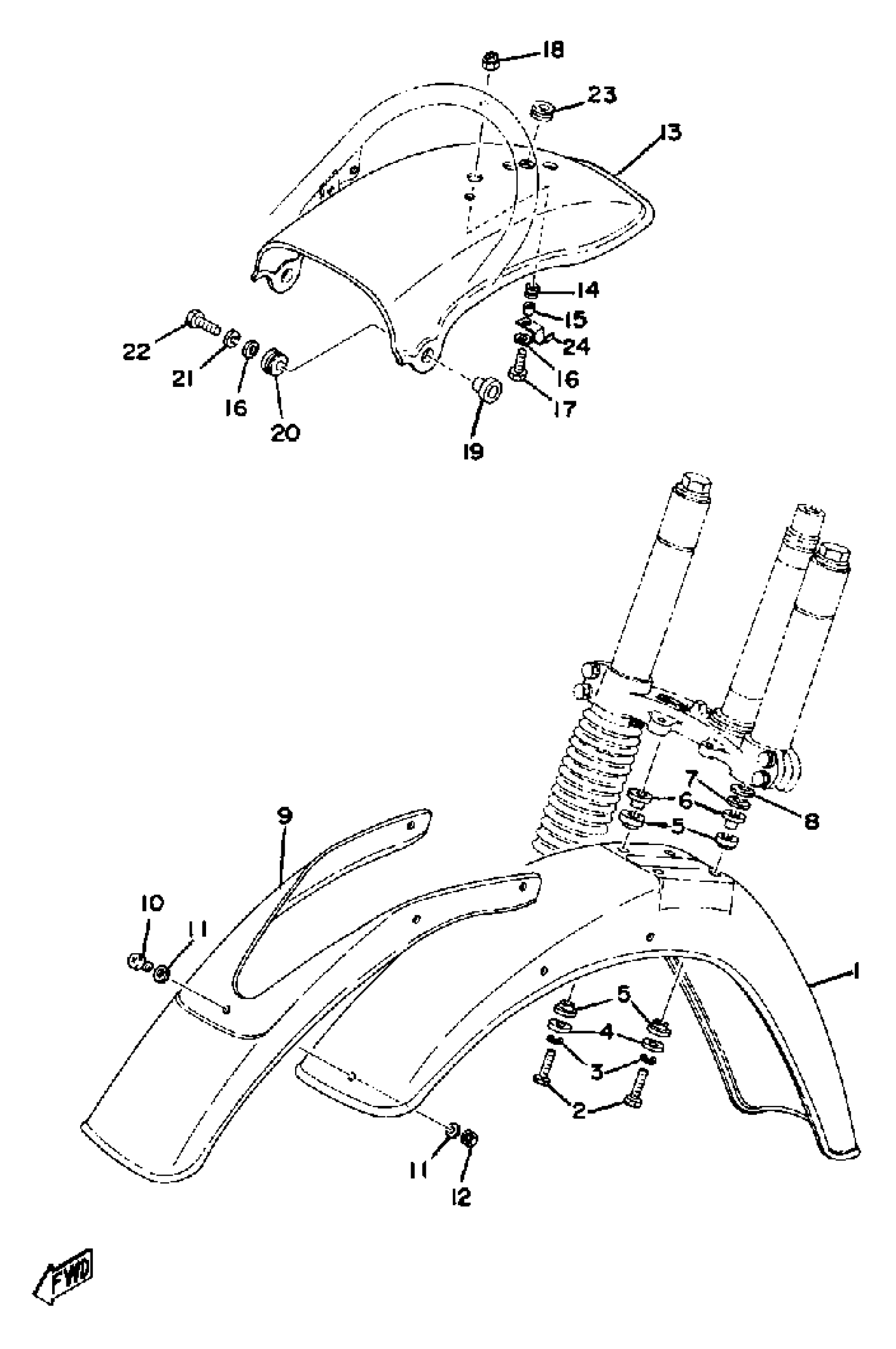

Yamaha IT400C (IT400) 1976 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(1K7-21511-00-G8)

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$3.61

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

SPACER

(90560-06151-00)

Unavailable

8

WASHER, PLATE

90201-06095-00

$8.49

9

OVER, FENDER

(483-21551-01-00)

Unavailable

10

SCREW, BIND (682)

98980-04012-00

$3.55

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

NUT(6TA)

95307-04600-00

$8.49

13

FENDER, REAR

(1K7-21611-00-G8)

Unavailable

14

GROMMET (431)

90480-14052-00

$5.60

15

COLLAR (3H5)

90387-060A3-00

$8.49

16

WASHER, PLATE

90201-06380-00

$0.60

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

COLLAR

90387-06158-00

$8.49

20

GROMMET 839774310000

90480-14023-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

GROMMET (1E6)

90480-15058-00

Unavailable

24

CLAMP 363154850100

90462-05005-00

Unavailable
