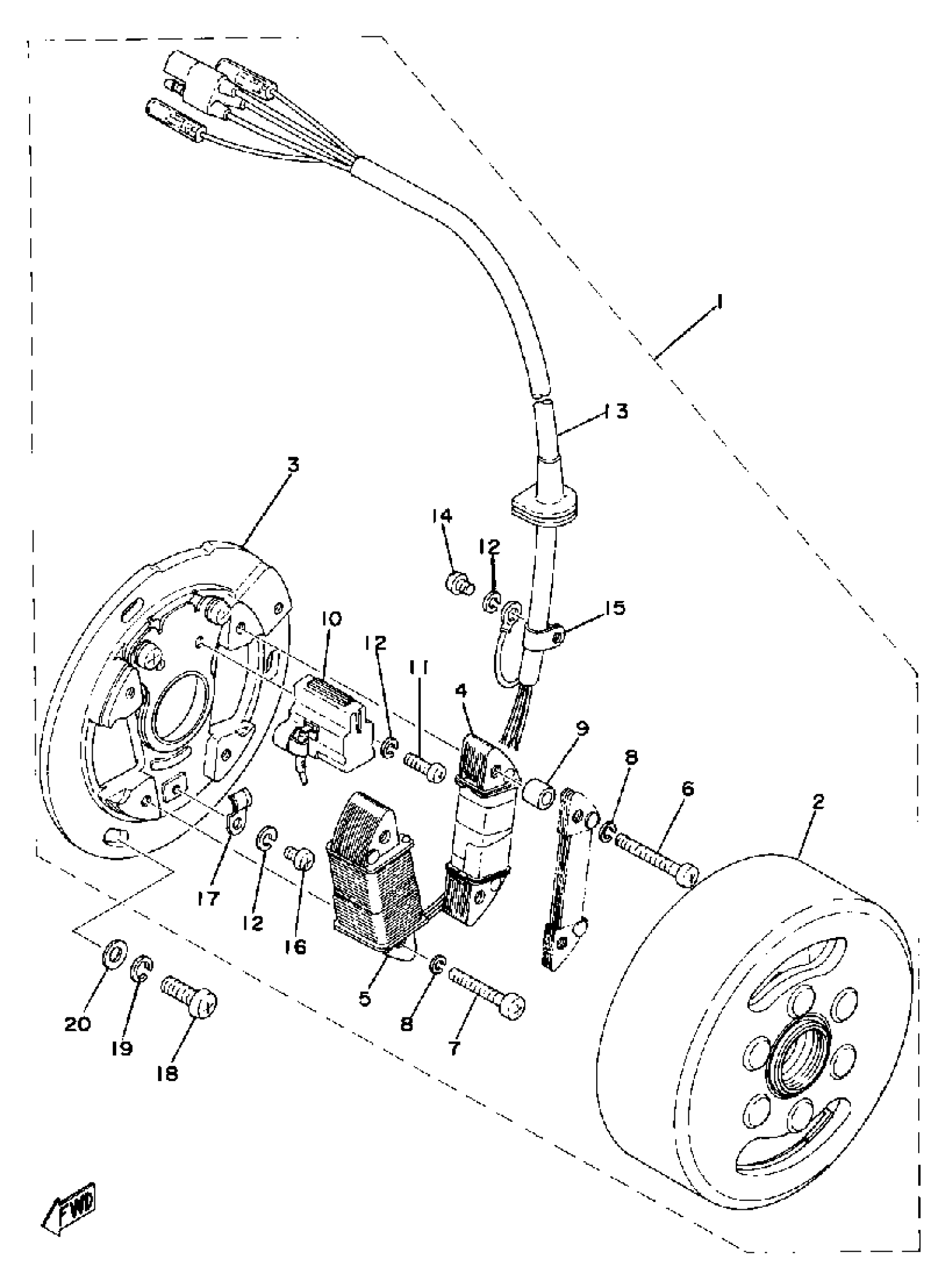

Yamaha IT400C (IT400) 1976 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(1K7-85500-20-00)

Unavailable

2

ROTOR ASSEMBLY

(445-85550-21-00)

Unavailable

3

BASE, MAGNETO

(445-85509-20-00)

Unavailable

4

. COIL SOURCE 2

445-85512-20-00

Unavailable

5

COIL, LIGHTING 1

(510-85513-25-00)

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SPACER

(445-85519-20-00)

Unavailable

10

. COIL, PULSER

445-85580-21-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

LEAD WIRE ASSEMBLY

(510-85515-25-00)

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

CLAMP, READ

445-81328-20-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

CLAMP, LEAD

(445-85528-20-00)

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
