Description

Price

1

SEMI-DBL-SEAT ASSEMBLY

(26A-W2473-00-00)

Unavailable

2

. COVER, DOUBLE SEAT

26A-24731-00-00

Unavailable

3

BRACKET,SEAT

39W-24738-00-00

Unavailable

4

PAD, SEAT

22W-24741-00-00

$8.99

5

BOLT, FLANGE

95817-06012-00

$1.43

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

CARRIER BOX ASSEMBLY

4V5-24850-00-00

Unavailable

8

BRACKET, CARRIER 2

4V5-24833-00-00

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

TOOL KIT

1LN-W2810-01-00

Unavailable

13

SPANNER,SPECIAL

1HX-28135-00-00

Unavailable

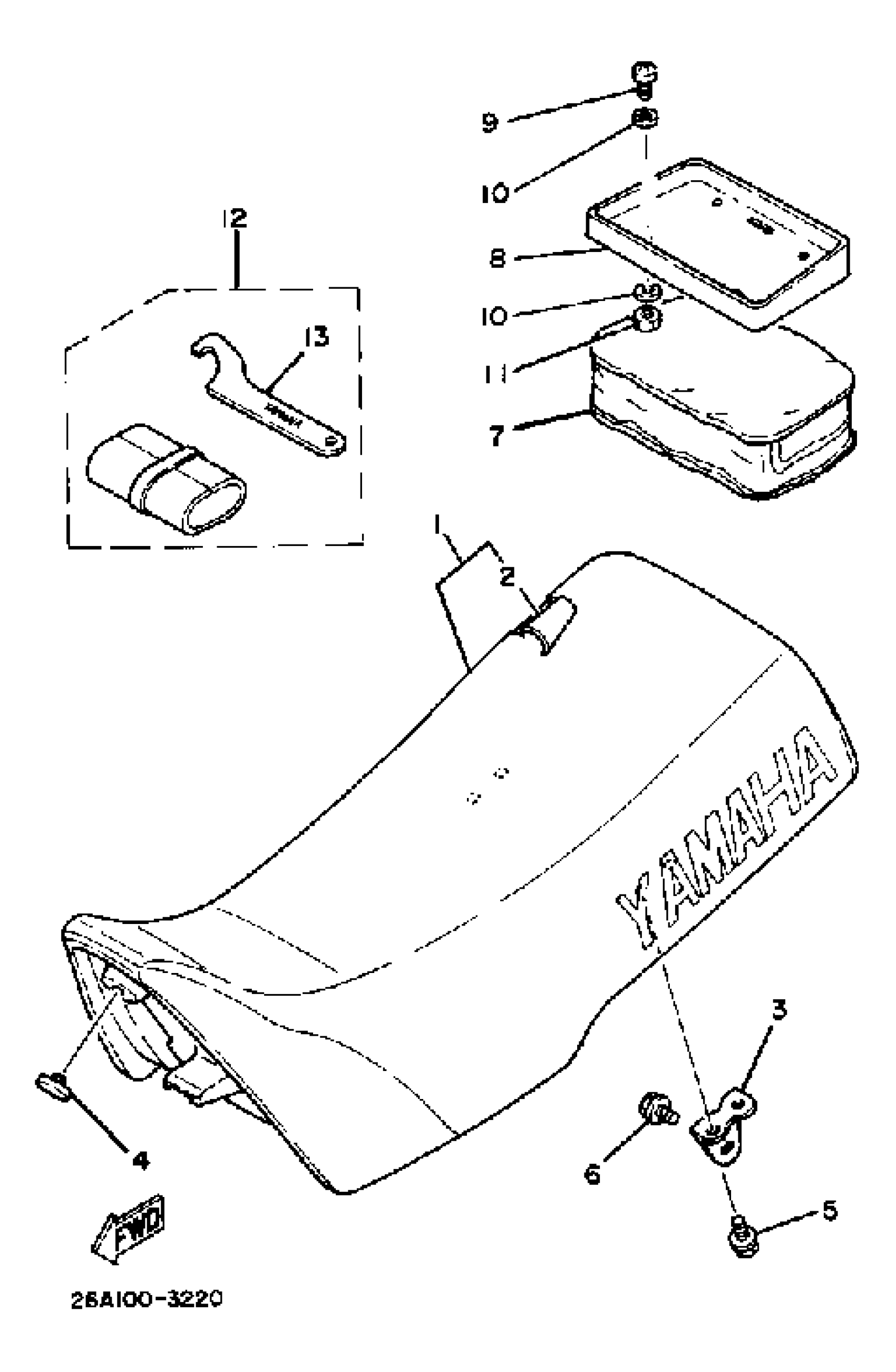

Yamaha IT250K (IT250) 1983 SEAT Diagram

SEMI-DBL-SEAT ASSEMBLY

. COVER, DOUBLE SEAT

BRACKET,SEAT

PAD, SEAT

BOLT, FLANGE

BOLT, WITH WASHER

CARRIER BOX ASSEMBLY

BRACKET, CARRIER 2

SCREW PAN HEAD

WASHER, PLATE (583 REAR FENDER

NUT, SELF-LOCKING

TOOL KIT

SPANNER,SPECIAL
