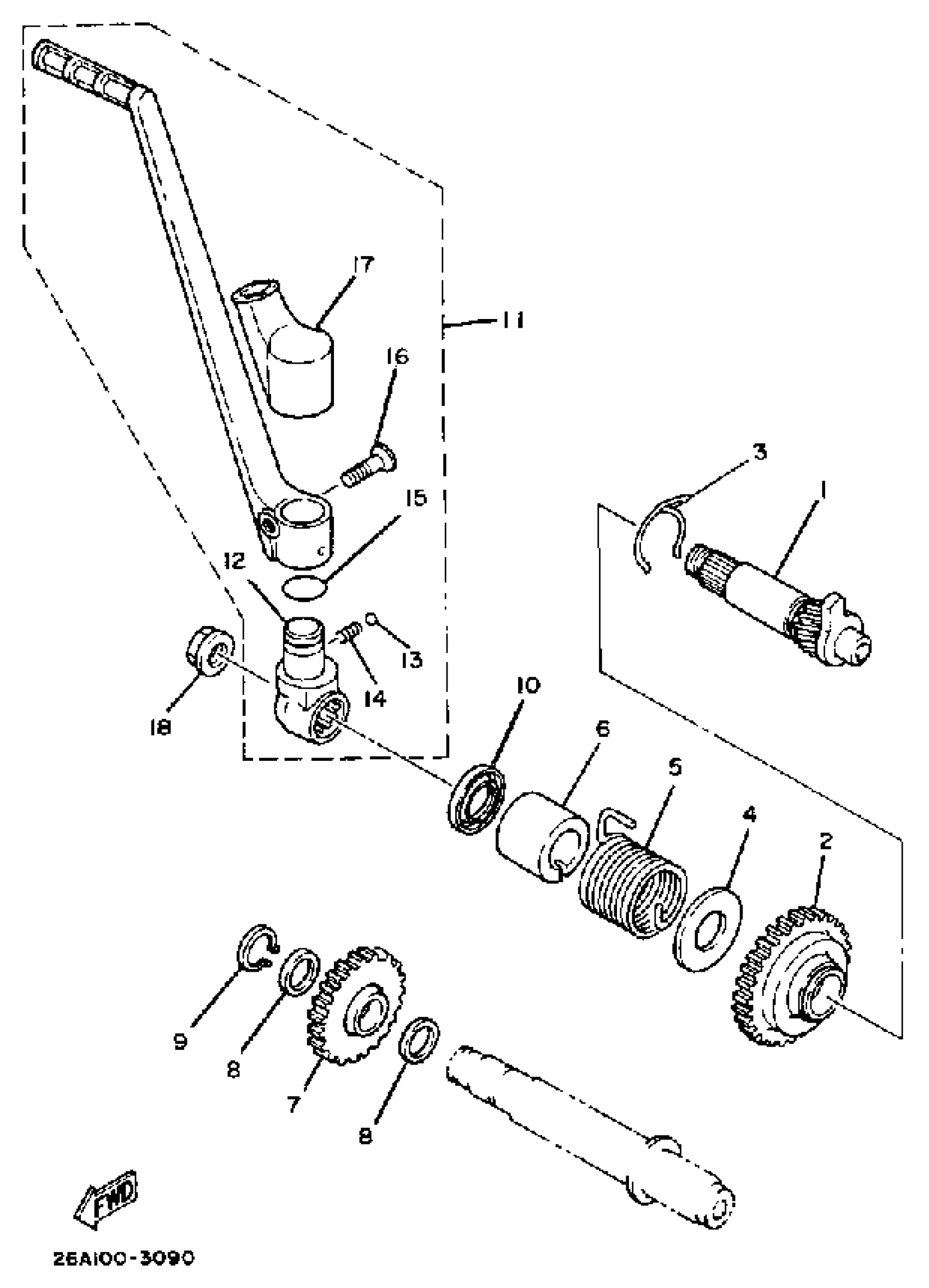

Yamaha IT250K (IT250) 1983 KICK STARTER Diagram

KICK AXLE ASSEMBLY

57H-15661-00-00

Unavailable

GEAR, KICK

3R4-15641-00-00

Unavailable

CLIP 315156870000

90468-26048-00

$8.49

WASHER, PLATE

90201-20358-00

Unavailable

SPRING, TORSION (3R4)

90508-30422-00

$21.99

GUIDE, SPRING

3R4-15664-00-00

Unavailable

GEAR, KICK IDLE

3R4-15651-00-00

Unavailable

WASHER, PLATE (525)

90201-17545-00

$8.49

CIRCLIP(1EY)

99009-17400-00

$4.73

OIL SEAL,SD-TYPE

93102-20309-00

$10.49

KICK CRANK ASY

26A-15620-01-00

Unavailable

BOSS,KICK CRANK

23X-15621-02-00

Unavailable

BALL

93501-04011-00

$8.49

SPRING, COMPRESSION (23X)

90501-13720-00

$8.49

O-RING(M01)

93210-19758-00

$7.49

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

. COVER, KICK LEVER

23X-15618-00-00

Unavailable

NUT(1EE)

90179-12659-00

Unavailable
