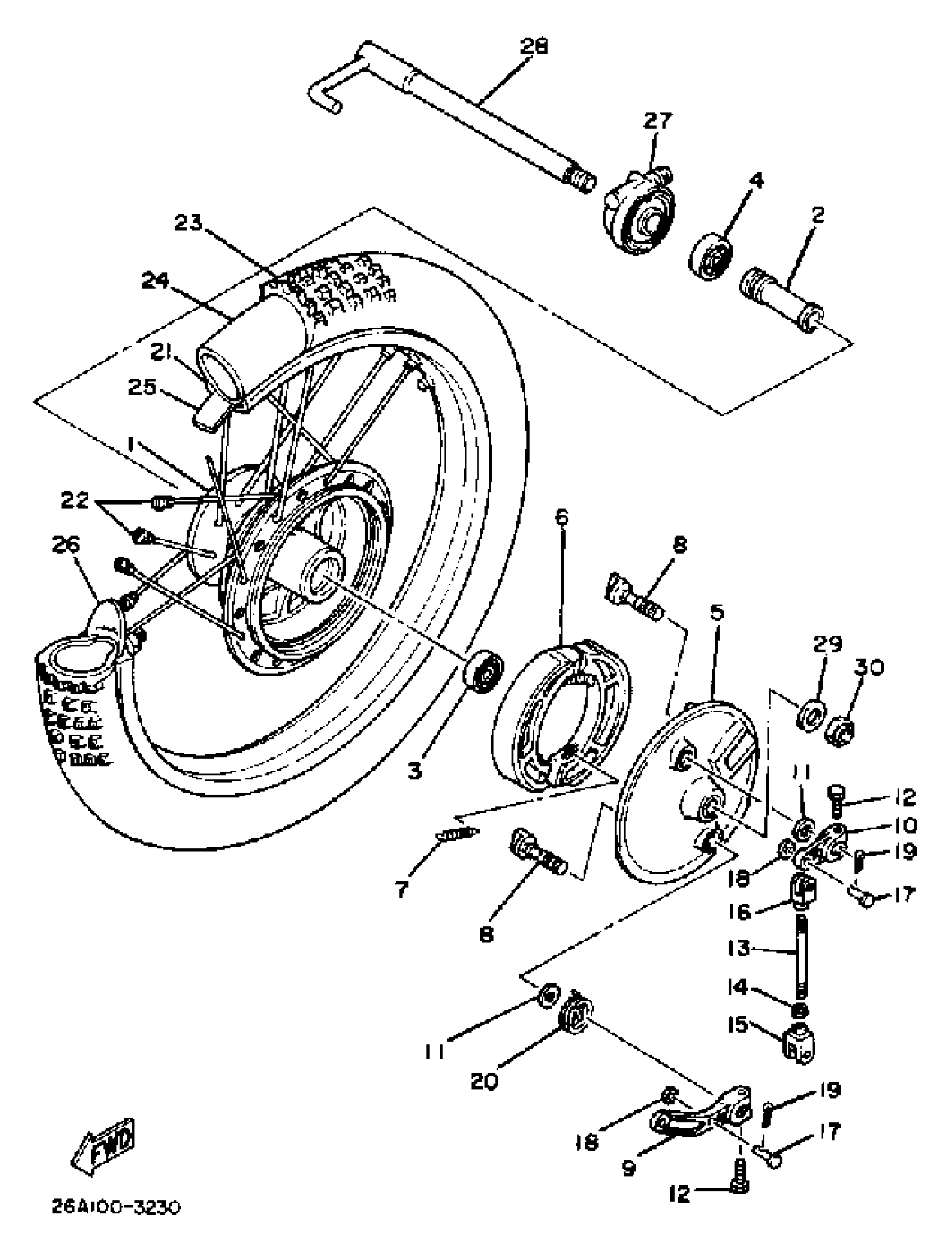

Yamaha IT250K (IT250) 1983 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

23X-25111-00-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

BEARING(3DL)

93306-20226-00

$38.99

4

BEARING

93306-20205-00

$38.99

5

PLATE, BRAKE SHOE

5X6-25121-00-98

Unavailable

6

BRAKE SHOE KIT

4V4-W253A-00-00

$29.99

7

SPRING (5T9)

90506-17328-00

Unavailable

8

CAMSHAFT

23X-25151-00-00

Unavailable

9

LEVER, CAMSHAFT

99999-02061-00

Unavailable

10

LEVER, CAMSHAFT 2

99999-02067-00

Unavailable

11

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

ROD, CONNECTING

3R5-25161-00-00

Unavailable

14

NUT(650)

95380-06700-00

$8.49

15

END, ROD 1

152-25163-00-00

Unavailable

16

END, ROD 2

152-25164-00-00

Unavailable

17

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable

20

SPRING, TORSION

90508-20425-00

Unavailable

21

RIM 1.60X21

94416-21359-00

Unavailable

22

SPOKE SET, FRONT

26A-25104-00-00

Unavailable

23

300-21 M1B (TT)

(94130-213A4-00)

Unavailable

24

TUBE

94230-21126-00

Unavailable

25

BAND, RIM

(94330-21088-00)

Unavailable

26

SPACER, BEAD

4V5-25194-00-00

Unavailable

27

GEAR UNIT ASSEMBLY

26A-25190-00-00

Unavailable

28

AXLE, WHEEL

26A-25181-00-00

Unavailable

29

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

30

NUT, SELF-LOCKING

90185-14116-00

Unavailable
