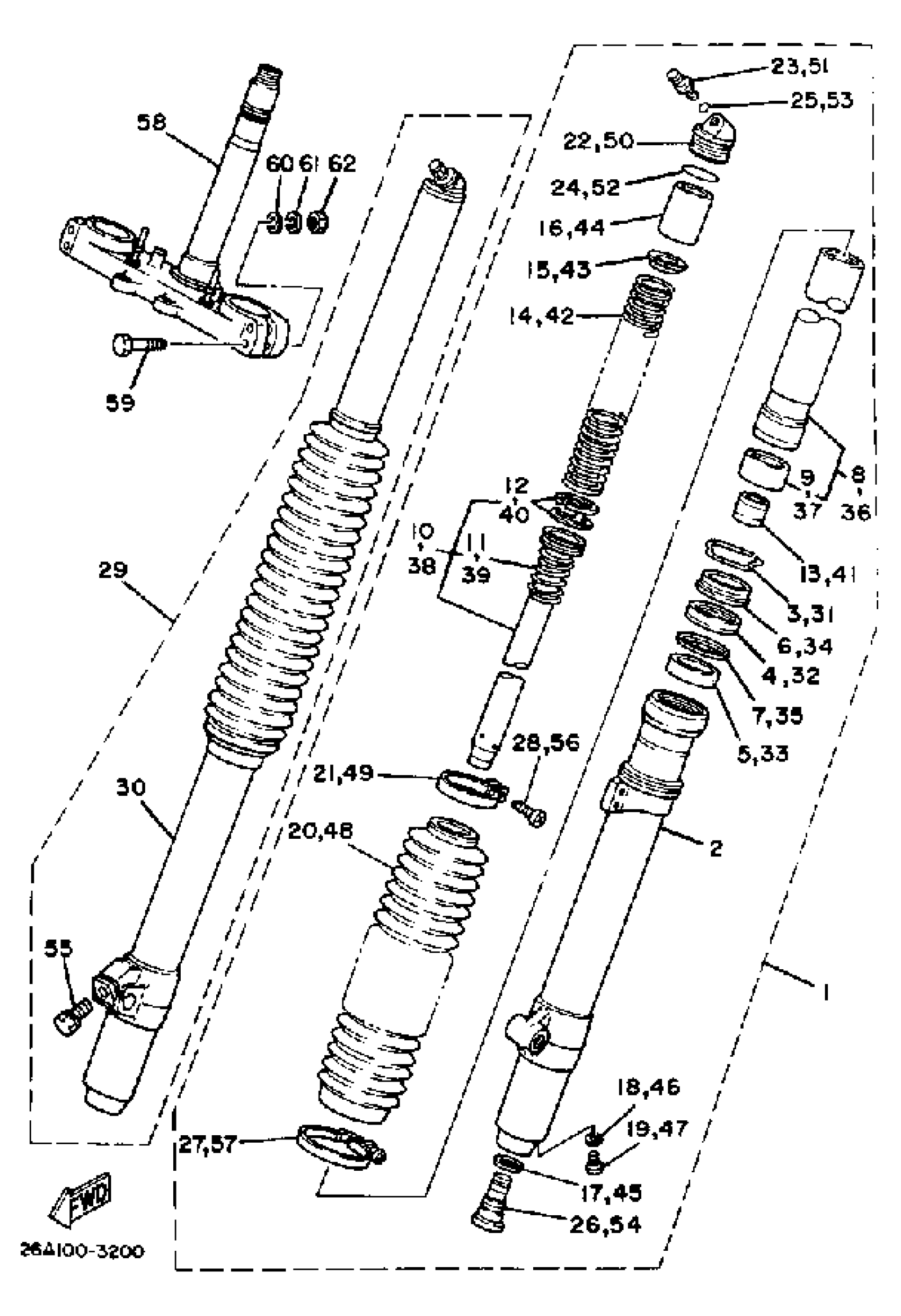

Yamaha IT250K (IT250) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(26A-23102-L0-00)

Unavailable

2

TUBE, OUTER 1

(26A-23126-L0-00)

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

23X-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

23X-23144-L0-00

$27.99

7

WASHER

4V4-23146-L0-00

$6.99

8

INNER TUBE COMP.

55U-23110-00-00

Unavailable

9

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

10

CYLINDER, FRTFRK

(26A-23170-L0-00)

Unavailable

11

.. SPRING, SUB

5X6-23152-L0-00

Unavailable

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

13

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

14

SPRING, FRONT FORK

(23X-23141-10-00)

Unavailable

14

. SPRING, FRONT FORK

23X-23141-L0-00

Unavailable

14

SPRING, FRONT FORK SOFT (K=0.290)

23X-23141-M0-00

Unavailable

15

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

16

. SPACER (L=80)

5X6-23118-10-00

Unavailable

16

. SPACER (L=110)

5X6-23118-M0-00

Unavailable

17

GASKET

23X-23158-L0-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

. BOOT

23X-23191-L0-00

Unavailable

21

. BAND

4V4-23192-L0-00

Unavailable

22

BOLT,CAP

43M-23111-L0-00

Unavailable

23

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

24

O-RING

4V4-23188-L1-00

Unavailable

25

O-RING

3J2-23147-00-00

Unavailable

26

VALVE

(26A-2316A-L0-00)

Unavailable

27

. BAND

23X-23489-L0-00

Unavailable

28

SCREW, PAN HEAD

98507-04018-00

Unavailable

29

FRONT FORK ASSEMBLY R

(26A-23103-L0-00)

Unavailable

30

TUBE, OUTER 2

(26A-23136-L0-00)

Unavailable

31

RING, SNAP

4V4-23153-L0-00

$9.99

32

OIL SEAL

23X-23145-L0-00

$32.99

33

METAL, SLIDE 1

5EB-23125-00-00

$32.99

34

SEAL, DUST

23X-23144-L0-00

$27.99

35

WASHER

4V4-23146-L0-00

$6.99

36

INNER TUBE COMP.

55U-23110-00-00

Unavailable

37

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

38

CYLINDER, FRTFRK

(26A-23170-L0-00)

Unavailable

39

.. SPRING, SUB

5X6-23152-L0-00

Unavailable

40

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

41

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

42

SPRING, FRONT FORK

(23X-23141-10-00)

Unavailable

42

. SPRING, FRONT FORK

23X-23141-L0-00

Unavailable

42

SPRING, FRONT FORK SOFT (K=0.290)

23X-23141-M0-00

Unavailable

43

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

44

. SPACER (L=80)

5X6-23118-10-00

Unavailable

44

. SPACER (L=110)

5X6-23118-M0-00

Unavailable

45

GASKET

23X-23158-L0-00

Unavailable

46

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

47

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

48

. BOOT

23X-23191-L0-00

Unavailable

49

. BAND

4V4-23192-L0-00

Unavailable

50

BOLT,CAP

43M-23111-L0-00

Unavailable

51

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

52

O-RING

4V4-23188-L1-00

Unavailable

53

O-RING

3J2-23147-00-00

Unavailable

54

VALVE

(26A-2316A-L0-00)

Unavailable

55

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

56

SCREW, PAN HEAD

98507-04018-00

Unavailable

57

. BAND

26A-23489-L0-00

Unavailable

58

UNDER BRACKETCOMP (26A-23340-L0-39)

34K-23340-00-39

Unavailable

59

BOLT (1E6)

90101-08340-00

Unavailable

60

.. WASHER, PLATE

92990-08600-00

Unavailable

61

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

62

NUT(6L2)

95333-08600-00

Unavailable
