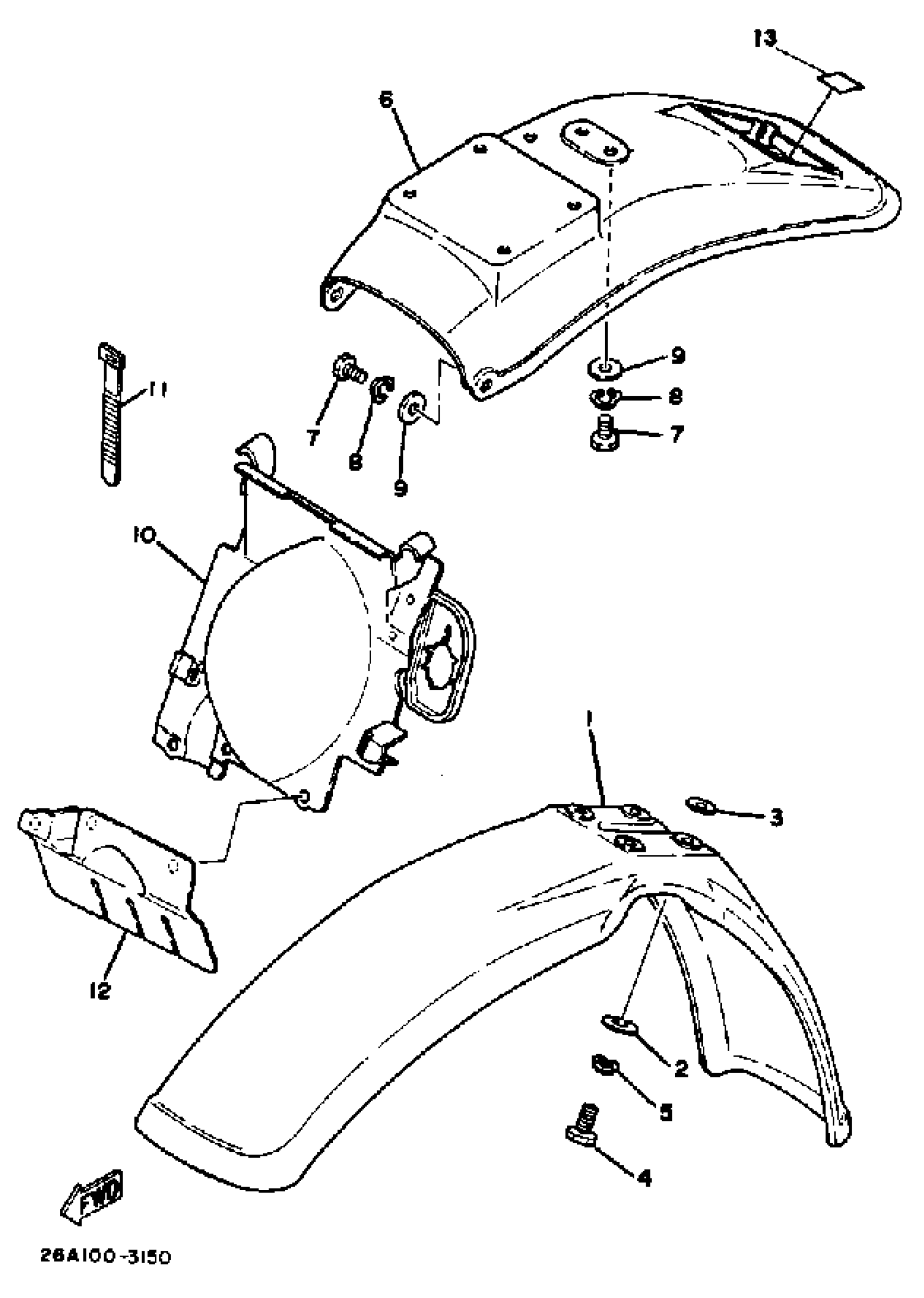

Yamaha IT250K (IT250) 1983 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3R9-21511-11-00

$43.99

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

26A-21610-00-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER(6TA)

92907-06700-00

$1.86

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

GUARD, MUD

26A-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

GUARD, FLAP

23X-21642-00-00

Unavailable

13

DAMPER

22F-2139X-00-00

$7.99
